Semi Auto Mesh Bag Packing Machine Food Bag Nail Packing Machine

Semi Auto Mesh Bag Packing Machine Food Bag Nail Packing Machine

Semi Auto Mesh Bag Packing Machine

Vegetable Mesh Bag Packing Machine

Fruit Net Clipping Machine

Place of Origin:

China

Brand Name:

TOUPACK

Model Number:

LS-DCF-1/G-35

Contact Us
Request A Quote
Product Details
Product Name:
Mesh Bag Packing Machine
Core Components:
Motor
Warranty Of Core Components:
1 Year
Key Selling Points:
Easy To Operate
Application:
Fruit And Vegetable Net Bag Packaging
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden case
Delivery Time
10 works day
Payment Terms
L/C, T/T
Product Description
Semi Auto Mesh Bag Packing Machine
Food Bag Nail Packing Machine for Fruits and Vegetables
Product Name Mesh Bag Packing Machine
Core Components Motor
Warranty 1 Year (Core Components)
Key Feature Easy to Operate
Primary Application Fruit and vegetable net bag packaging
Efficient Net Bag Packaging Solution

The semi-automatic to full automatic mesh bag packing machine simplifies packaging operations with a weight range from 250 grams to 5 kg. Ideal for various fresh produce including oranges, lemons, peppers, Brussels sprouts, potatoes, onions, and garlic.

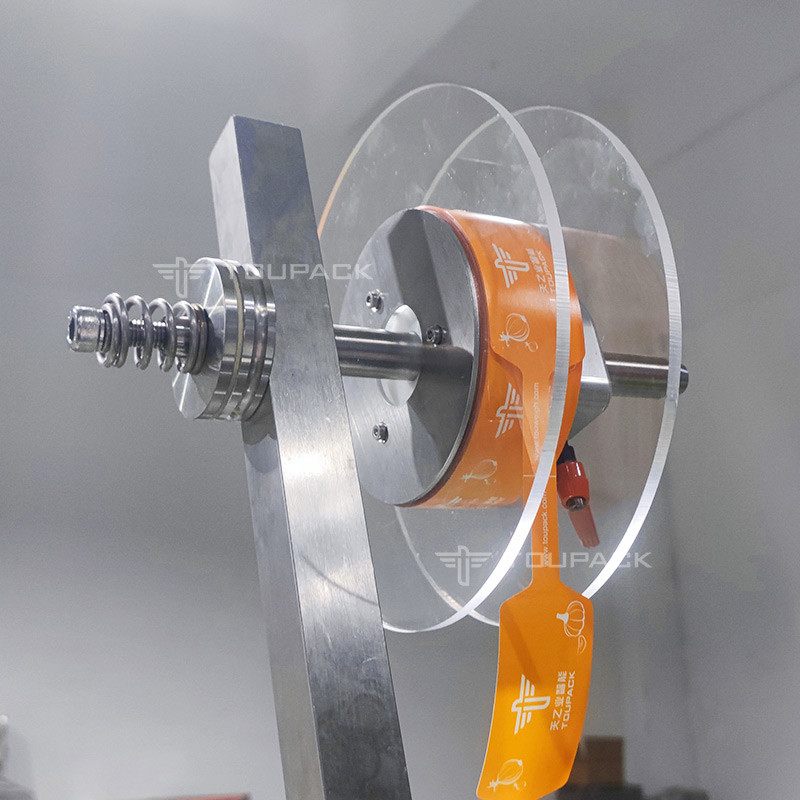

Semi Auto Mesh Bag Packing Machine Food Bag Nail Packing Machine 0
Working Principle

The machine extracts net material from the network and seals bags with clamps. Optional label application can be integrated into the packaging process.

Application Examples

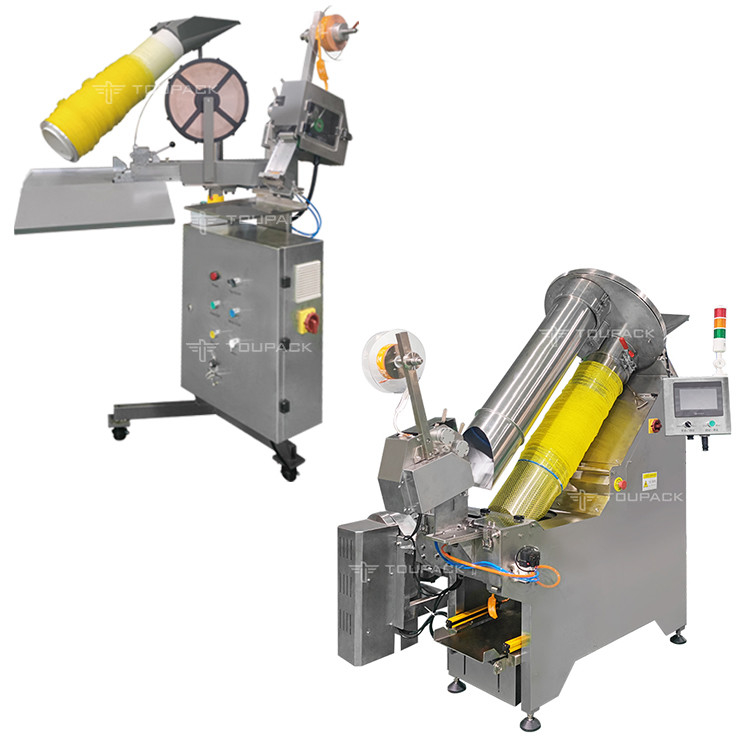

Semi Auto Mesh Bag Packing Machine Food Bag Nail Packing Machine 1
Key Features
  • Precision positioning system using dual gears and proximity switches
  • LS inverter with Schneider PLC and touch screen control panel
  • Yadek pneumatic components for stable, long-lasting performance
  • Automatic mesh tube replacement when material runs out
Technical Specifications
Semi-Auto Machine Model LS-DCF-1/G-20
Operating Temperature 0℃-40℃ (adjustable)
Weighing Accuracy ±2-3g
Weighing Range 3g-5000g
Power Supply 800W/220V/50Hz
Label Placement Precision ±3mm
Worktable Height 680mm±50mm
Net Weight 78kg
Full-Automatic Machine Model LS-DCF-1/G-35
Packable Items Customizable to requirements
Weight Range 0.5kg-5kg
Net Bag Perimeter 380/400mm
Maximum Net Length 200m
Packaging Speed 25-40 bags per minute
Weight 450kg
High Production Efficiency: The double cylinder design enables continuous operation by alternating mesh bag addition without stopping production.

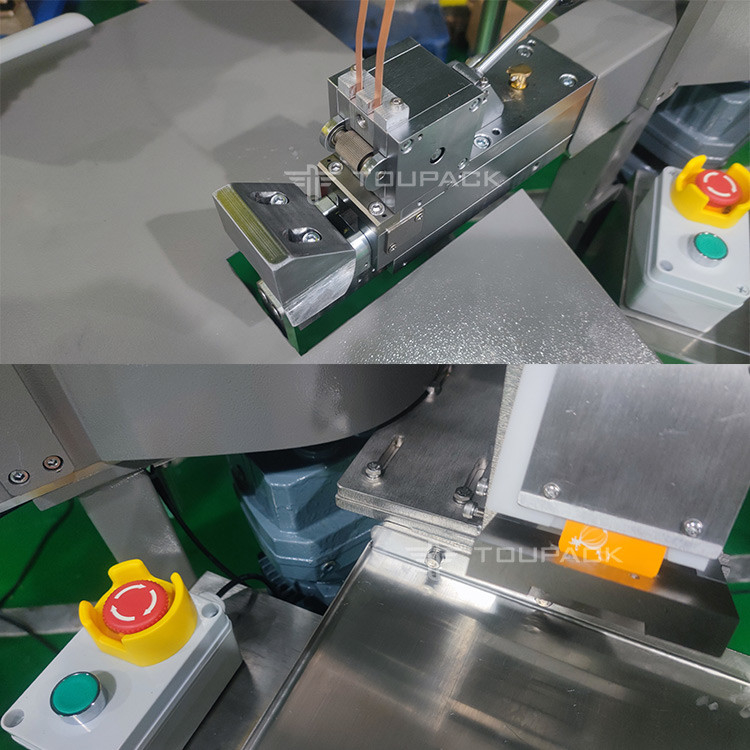

Machine Details

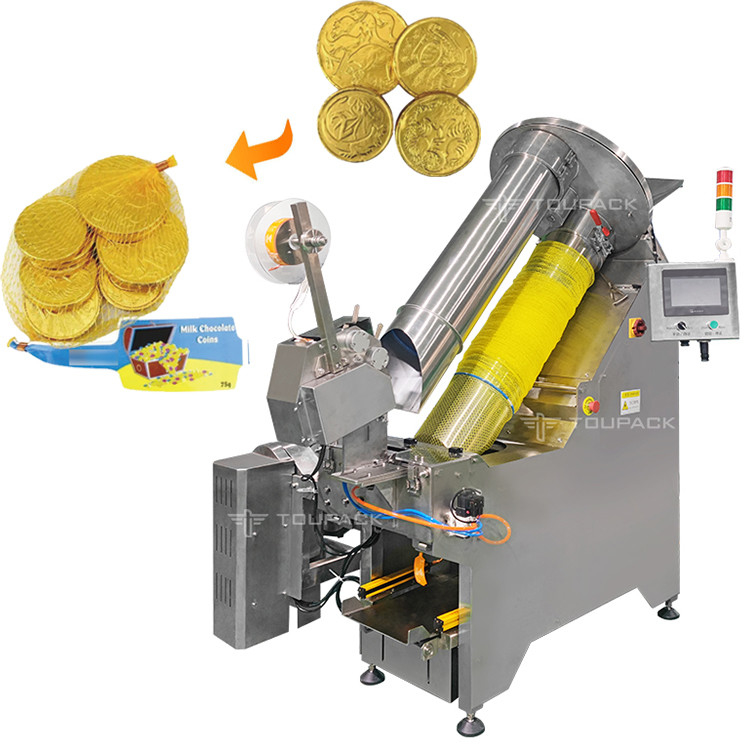

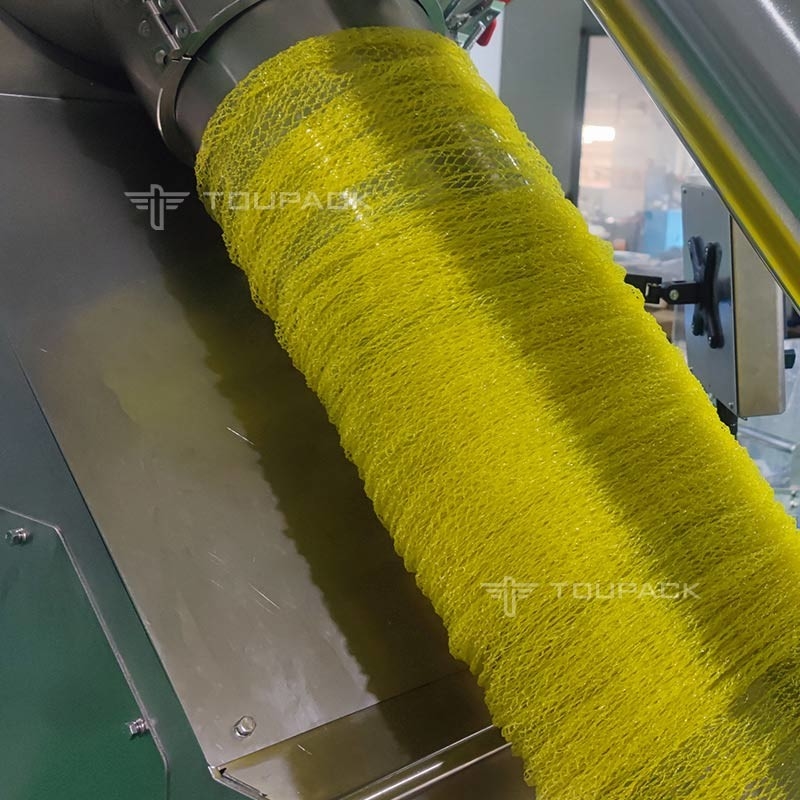

Semi Auto Mesh Bag Packing Machine Food Bag Nail Packing Machine 2 Semi Auto Mesh Bag Packing Machine Food Bag Nail Packing Machine 3
Complete Packaging Solutions

We provide comprehensive packaging lines for various commodities including potatoes, onions, citrus fruits, stone fruits, green beans, garlic, nuts, cherries, tomatoes, carrots, and kiwi. Our engineering team designs customized solutions to optimize your space, production requirements, and budget.

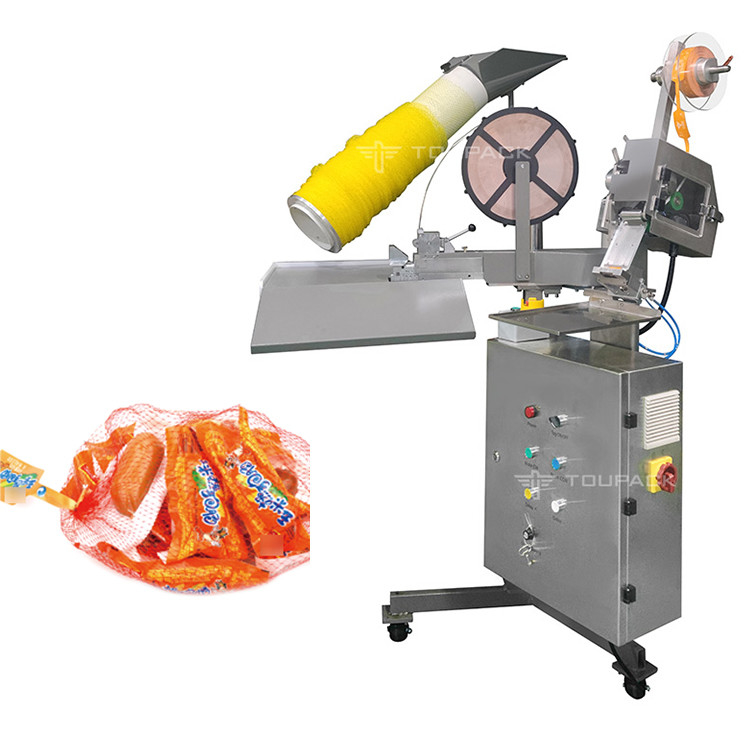

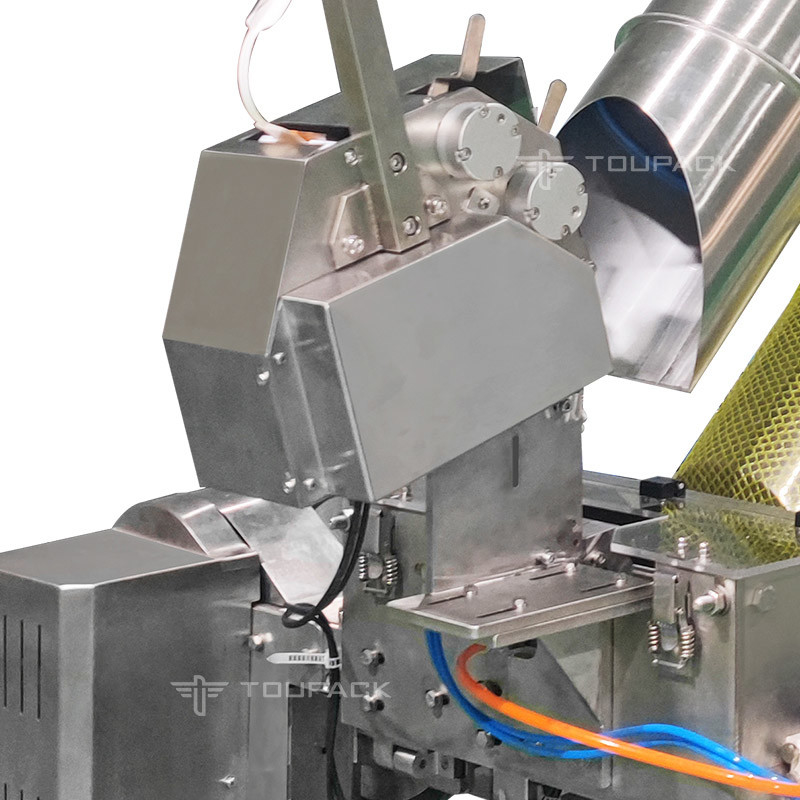

Semi Auto Mesh Bag Packing Machine Food Bag Nail Packing Machine 4 Semi Auto Mesh Bag Packing Machine Food Bag Nail Packing Machine 5
Custom Integrated Solutions

Our experts develop tailored weighing and packaging solutions to enhance your production efficiency based on your specific line requirements.

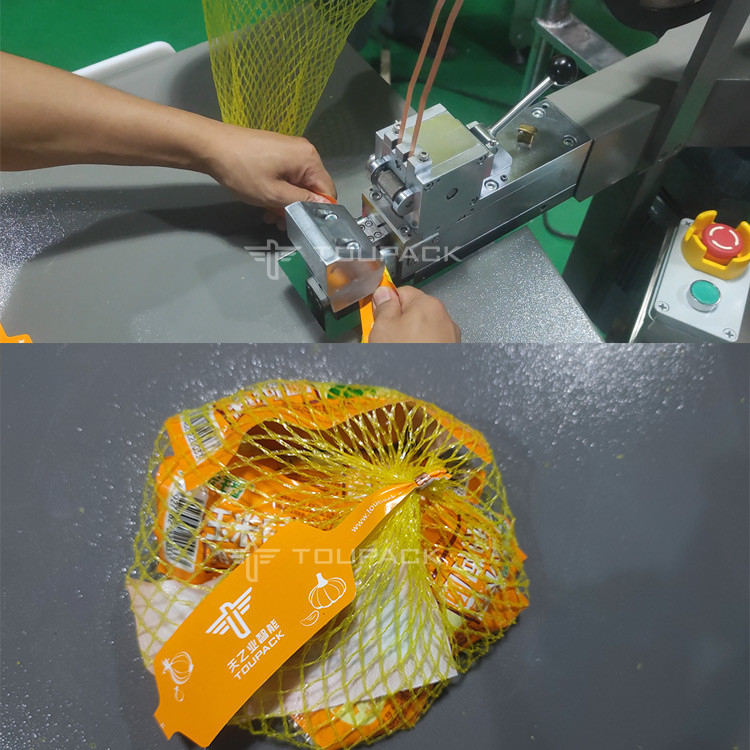

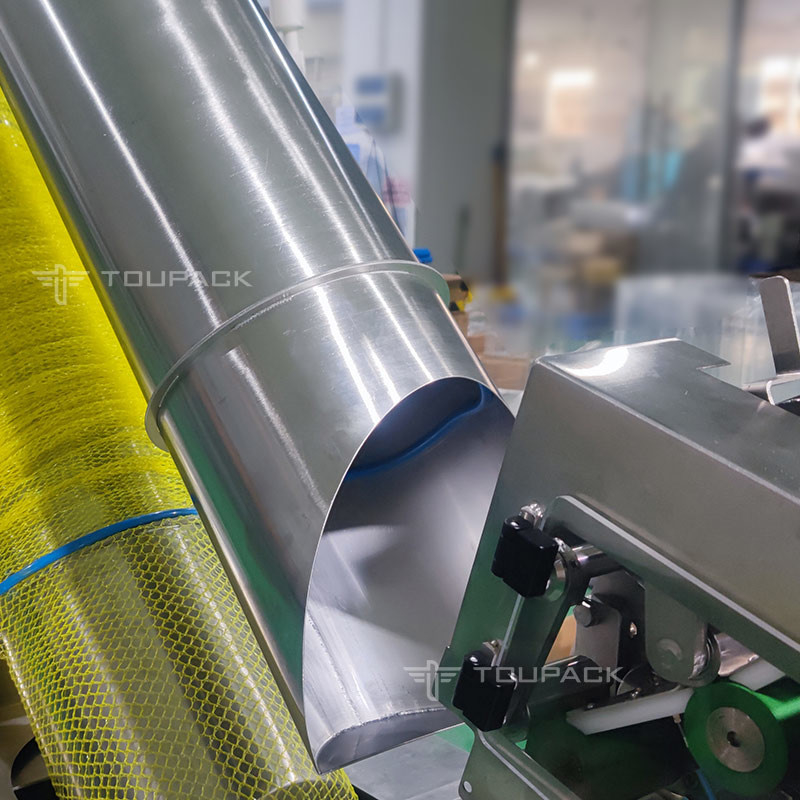

Semi Auto Mesh Bag Packing Machine Food Bag Nail Packing Machine 6 Semi Auto Mesh Bag Packing Machine Food Bag Nail Packing Machine 7
