Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Certification:
CE
Model Number:
TY-1A-YZ-M1008-101 TY-1A-YZ-M1016-101

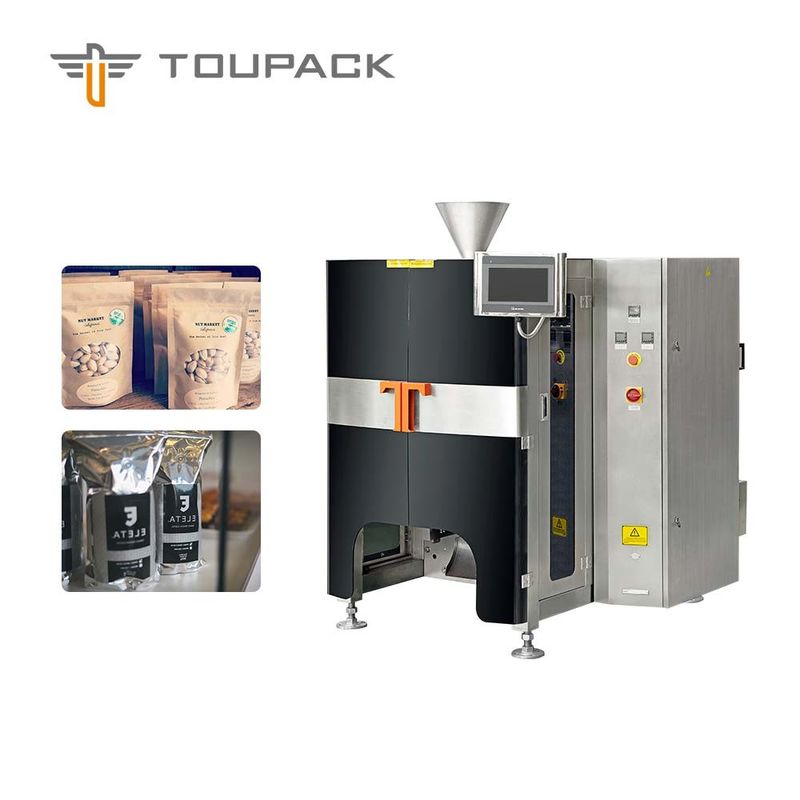

High-Speed Packing Vffs Vertical Form Fill Seal Packaging Machine For Nuts, Seeds, Almonds
Application
Dession granule packing machine is suitable for loose rounded granules in the food, chemical and other industrial. Such as: puffed granules, peanuts, popcorn,melon seeds, rice, pepper, sugar,salt, biscuits etc.
According to customer needs,the bag types can be changed:back seal, three sides seal, four side seal.
Features:
1. Compact and space saving design, suitable for limited workshop height within 3,000mm.
2. Cost saving
3. Golden ratio design to make the machine more steady and accurate.
4. Integrated weighing and packaging system, controlled by one HMI for easy operation.
5. Widely used on various kinds of products and customized solution per customer’s request.
Main Configuration:
1. Body frame: SUS304
2. Max film width: 420mm.
3. Max speed: 100 bpm (empty bags).
4. Packaging material: standard heat sealable composite film.
5. Main electrical configuration of packaging machine:
-- MITSUBISHI PLC
-- 2 sets of Panasonic servo system
-- AIRTAC pneumatic parts
-- Banner photoelectric sensor
-- Pneumatic hot stamp printer (NANYUN)
6. One set of former free of charge (film width: 420mm, double clip seal)
7. 7/10” touch screen
Specifications:
Model | TY-1A-YZ-M1008-101,TY-1A-YZ-M1016-101 |
Max. Weighing (one hopper) | 300g |
Weighing Accuracy | x (0.5) |
Min. Scale Interval | 0.1g |
Hopper Q’ty | 10 |
Hopper Volume | 0.8L / 1.6L |
Packing Speed | 150 bpm (empty bags) |
Power Supply | AC220V ±10% 50HZ/60HZ, 2.5KW |
Machine Dimension | 1,457(L)*1,080(W)*2,313(H)mm (0.8L) 1,700(L)*1,211(W)*2,415(H)mm (1.6L) |
Packing Weight | 755kg (0.8L); 805kg (1.6L) |
Customer-made Case:
