Place of Origin:
China
Brand Name:
TOUPACK
Certification:
CE,ISO9001

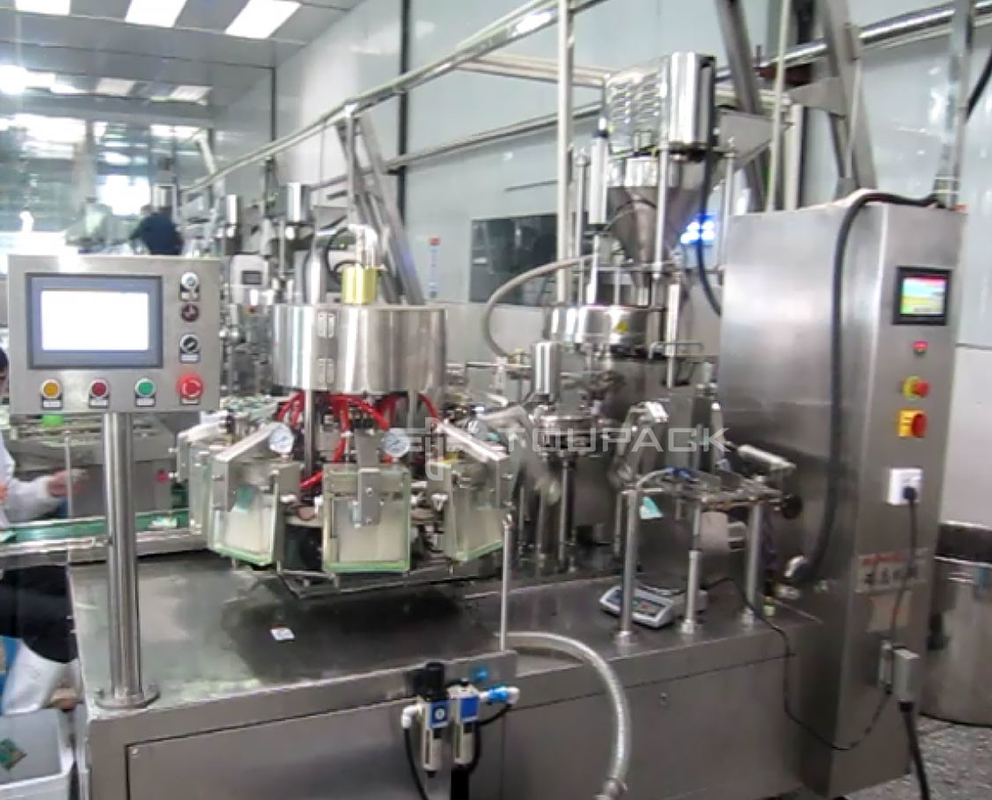

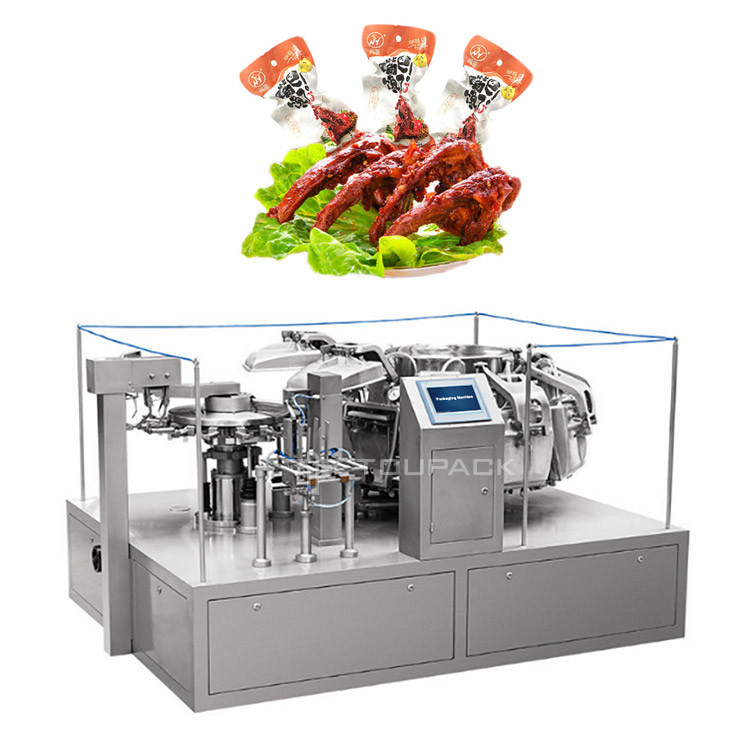

Automatic Multi-Station Rotary Vacuum Packing Machine/Snack Food Vacuum Packaging Machine
Automatic bagging vacuum packaging machine is mainly used for full-automatic packaging of granules, powders, lumps, liquids, soft cans, toys, hardware and other products, according to different materials supporting different measuring devices, low loss of package materials, accurate weight, good sealing quality, the use of prefabricated bags, bag pattern, to improve the grade of the product. Bag packaging machine is suitable for paper-plastic composite, plastic-plastic composite, aluminum-plastic composite, PE composite and other types of packaging materials.
Machine Features
1. It’s easy to operate and maintain the machine with the help of high technology such as micro computer display and graphic touch panel.
2. Being high-performance and high-durability, the filling machine rotates intermittently to fill the product easily while vacuum machine rotates continuously to enable running smoothly.
3. The width of grippers in filling machine can be adjusted at once by a motor while those in the vacuum chambers need no adjustment. The main section of machine are made of stainless steel for excellent durability and hygiene.
4. All filling zone and vacuum chambers are washable.

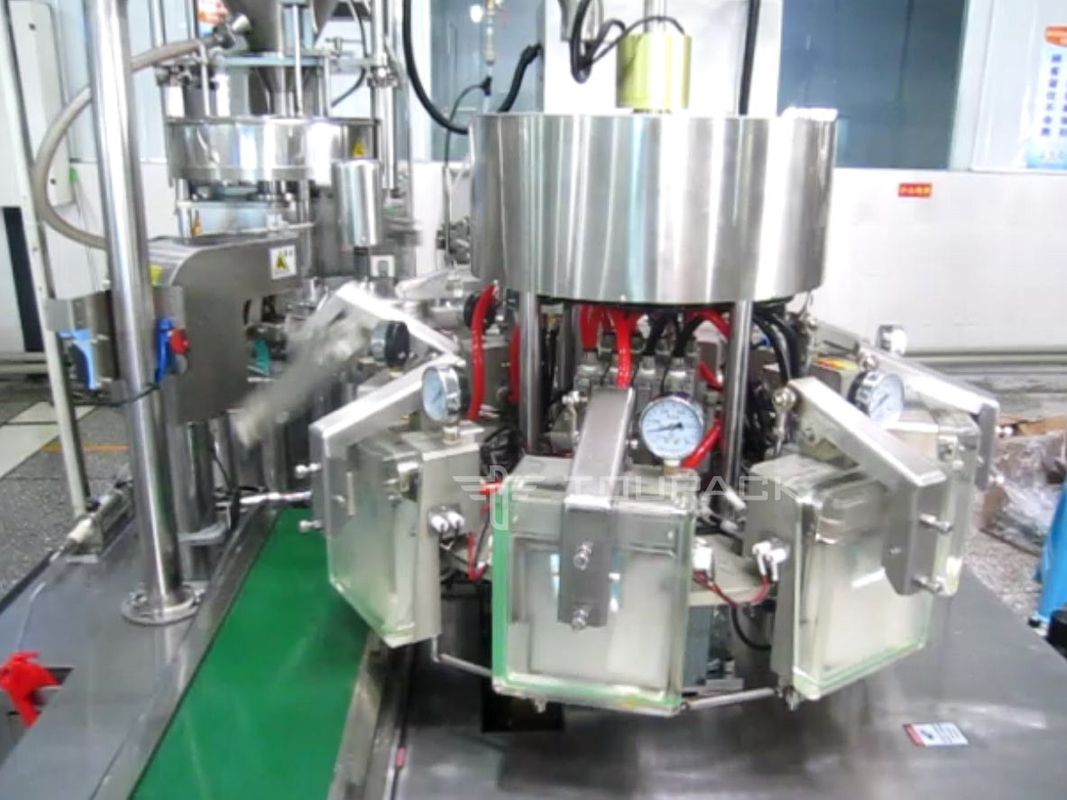

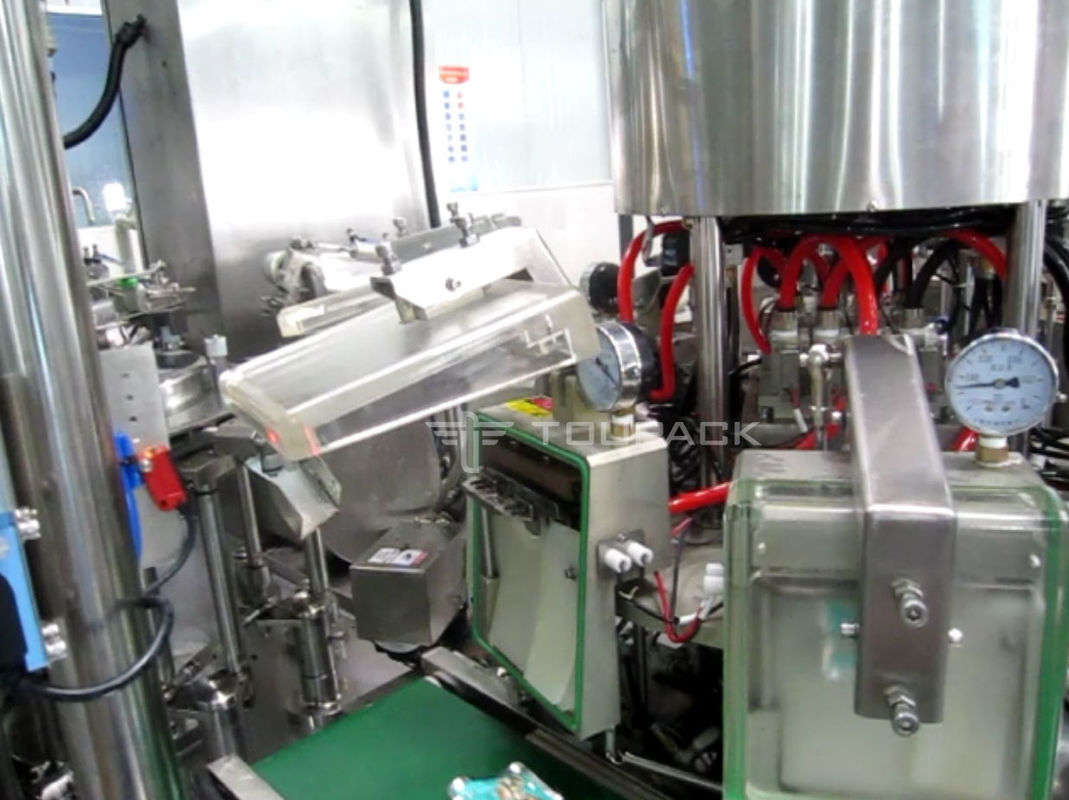

5. Weighing machine and liquid&paste doser can be combined with this machine. Status in the vacuum chamber can be checked through the transparent plastic vacuum shell lids.
Technical Parameters
Model |
TY-8S |
Bag Size |
flat bags, aluminum foil bags, composite flat bag |
Packaging Speed |
20-55 BPM |
Powder Supply |
3 phase 380V AC±10% 50Hz |
Use Power |
2.0kW/unit |
Air Consumption |
5-8kg f/cm³, Air consumption:0.4m³/min |
Operating Noise |
Within 80db (within 1m) |
Bag Opening Method |
Vacuum bag opening |
Solution:
According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as nameplate, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
-Wrap the protective
-Packen in wooden cases
Shipping:
- International express such as DHL / FEDEX / UPS / TNT, etc
- By sea
Standard export port:
Zhongshan Port
