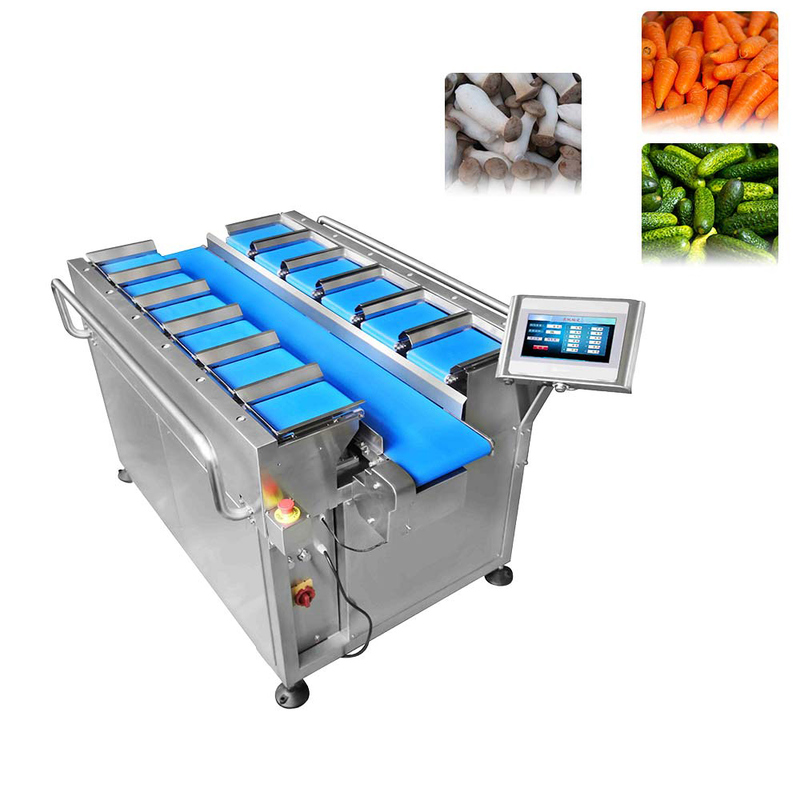

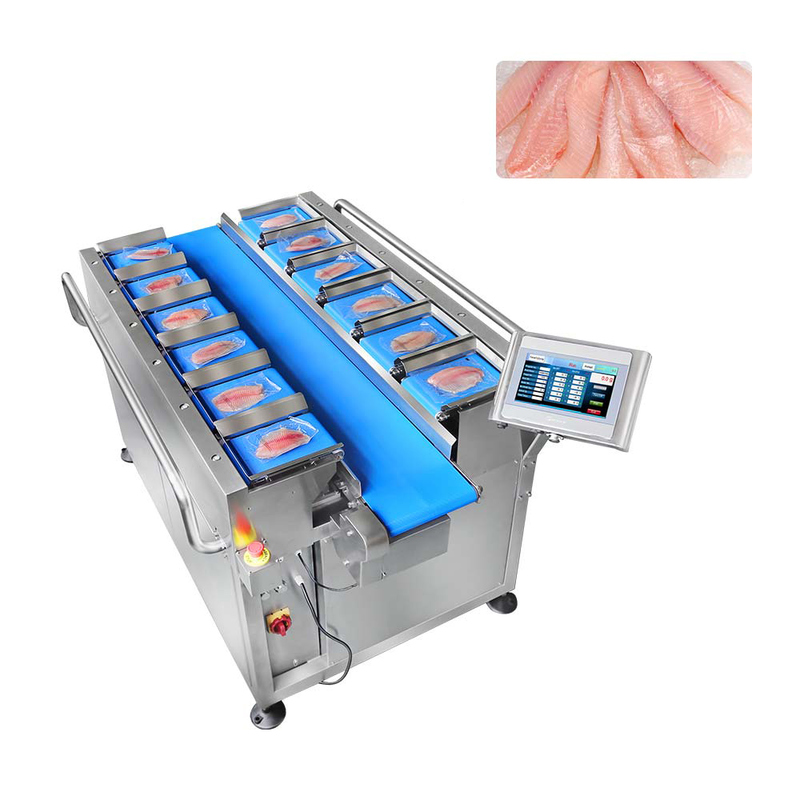

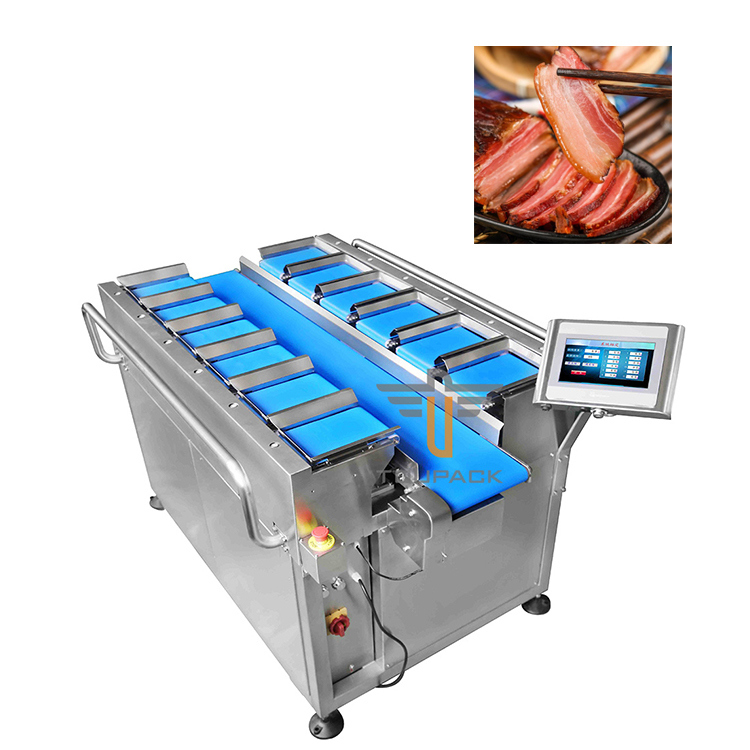

12 Head Multihead Weigher with Stainless Steel 304/316 Construction and 10" Color Touch Screen for High-Accuracy Weighing

12 Head Multihead Weigher

Stainless Steel 304/316 Combination Scale

10" Color Touch Screen Belt Weigher

Place of Origin:

Guangdong, China

Brand Name:

TOUPACK

Certification:

Request A Quote

Product Details

Voltage:

220V

Power:

1 KW

Dimensions:

1,900mm(L)*1,240mm(W)*1,207mm(H)

Weight:

380 KG

Material:

Stainless Steel 304/316

Driving System:

Step Motor

Max Weighing:

20-5,000g

Accuracy:

X (0.5)

Min Scale Interval:

0.1g

Max Speed:

40 BPM

Weighing Table Size:

250*160mm

Control System:

PLC

HMI:

10" Color Touch Screen

Power Supply:

AC220V ±10% 50HZ/60HZ

Function:

Waterproof

Payment & Shipping Terms

Minimum Order Quantity

Price

$6,800-16,000

12 Head Multihead Weigher with Stainless Steel 304/316 Construction and 10" Color Touch Screen for High-Accuracy Weighing

Get Best Price

Stainless Steel 304/316 Combination Weigher with 220V Power and 1 KW Output for High-Accuracy Fruit Packing

Get Best Price

Automatic Multihead Weigher Packing Machine for Food Application with 5-50 Bag/min Speed and Plastic Packaging

Get Best Price

500 KG 220 V 1 Year Automatic Multihead Weigher Packing Machine for Food and Granule Products

Get Best Price

Contact Now

Product Description

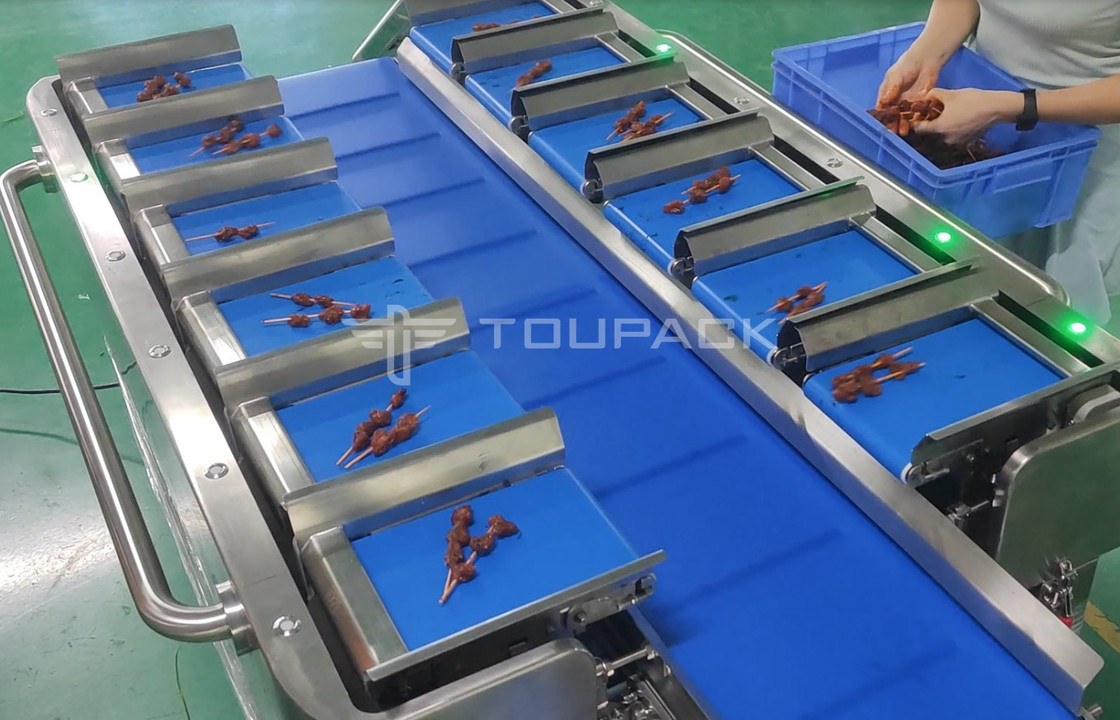

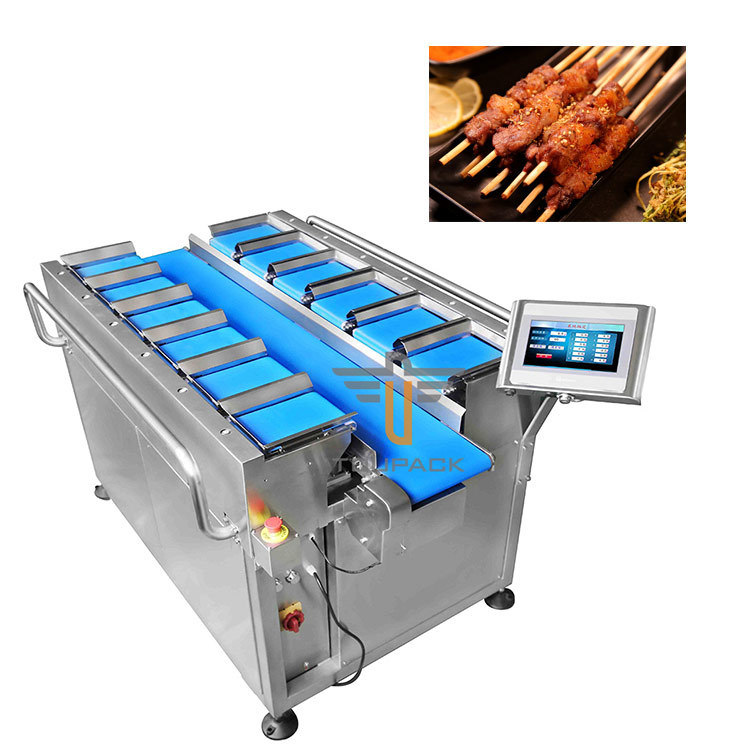

12 Head Multihead Weigher for Kebab Weighing Multistation Belt Combination Scale

High-precision 12-head multihead weigher designed specifically for kebab weighing applications with multistation belt combination technology.

Technical Specifications

Model	TY-ZHZ121P160-01-13	TY-ZHZ141P160-01-13
Max. Weighing (one belt)	20-5,000g	20-5,000g
Accuracy	x (0.5)	x (0.5)
Min. Scale Interval	0.1g	0.1g
Max. Speed	40 BPM	40 BPM
Size of weighing table	250*160mm	250*160mm
Control System	PLC	PLC
HMI	10" color touch screen	10" color touch screen
Power Supply	AC220V ±10% 50HZ/60HZ, 1KW	AC220V ±10% 50HZ/60HZ, 1KW
Packing Dimension	1,900mm(L)1,240mm(W)1,207(H)mm	2,000mm(L)1,200mm(W)1,240mm(H)
Machine weight	280kg	275kg
Package weight	340kg	375kg

Company Advantages

Wide Range of Product Working in weighing, packaging, conveying, multi-weight sorting and detecting machines.
Product Patents Almost all of our products have gained CE certificate, ISO9001 certificate, IP65 and IP67 Waterproof and Dustproof certificate.
Professional R&D Team The number of skilled engineers take up 63% of total employees.
10+ Years of Customized System Integration Providing all kinds of customized intelligent weighing and packaging solutions.
Complete Technical Support All of products is at least 12 month warranty and any enquiry will be responded within 24 hours.
After-Sale Service TOUPACK has setup its after-sale service in California, USA and Sichuan and Shanghai, China.
