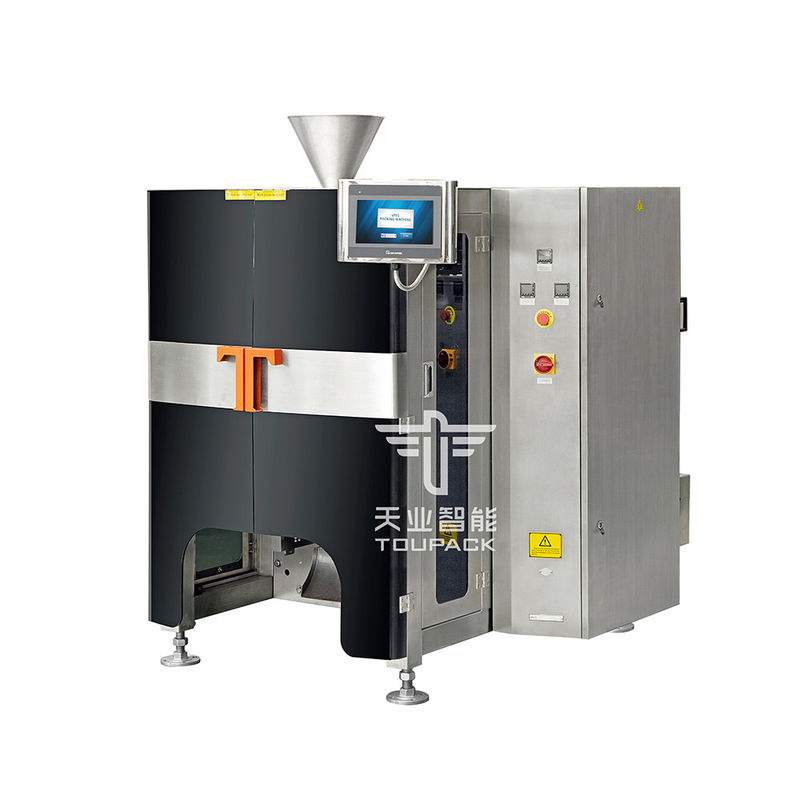

High Sensitivity 380V 70bags/Min Bag In Bag Packaging Machine Horizontal

High Sensitivity 380V 70bags/Min Bag In Bag Packaging Machine Horizontal

380V Bag In Bag Packaging Machine

70bags/min Bag In Bag Packaging Machine

70bags/min sachet sealing machine

Place of Origin:

Guangdong zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-170/210/260/350

Contact Us
Request A Quote
High Sensitivity 380V 70bags/Min Bag In Bag Packaging Machine Horizontal High Sensitivity 380V 70bags/Min Bag In Bag Packaging Machine Horizontal High Sensitivity 380V 70bags/Min Bag In Bag Packaging Machine Horizontal High Sensitivity 380V 70bags/Min Bag In Bag Packaging Machine Horizontal
Product Details
Packing Speed:
30-70bags/min
Total Power:
5.5kw
Bag Size:
85-170mm
Power Supply:
380V
Control System:
MCU/PLC
Machine Weight:
800kg
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
wooden case
Delivery Time
15-30 days after paymet
Payment Terms
L/C, T/T
Supply Ability
50 Sets/month
RELATED PRODUCTS
Good price Low Noise 60bags/Min Bag In Bag Packaging Machine With CE Approval online

Low Noise 60bags/Min Bag In Bag Packaging Machine With CE Approval

Get Best Price
Good price High Sensitivity 380V 70bags/Min Bag In Bag Packaging Machine Horizontal online

High Sensitivity 380V 70bags/Min Bag In Bag Packaging Machine Horizontal

Get Best Price
Good price TOUPACK 50Bags/Min Bag In Bag Packaging Machine , Sachet Packing Machine Vertical online

TOUPACK 50Bags/Min Bag In Bag Packaging Machine , Sachet Packing Machine Vertical

Get Best Price
Good price 380V 70pcs / Min Bag In Bag Packaging Machine Horizontal High Sensitivity online video

380V 70pcs / Min Bag In Bag Packaging Machine Horizontal High Sensitivity

Get Best Price
Contact Us
Contact Now
Product Description
High Sensitivity 380V 70bags/Min Bag In Bag Packaging Machine Horizontal
Packing Speed 30-70bags/min
Total Power 5.5kw
Bag Size 85-170mm
Power Supply 380V
Control System MCU/PLC
Machine Weight 800kg
Horizontal Bag Feeding Machine for Small Granulars

This high-performance packaging machine is designed for efficient bag-in-bag packaging of small granular products with exceptional sensitivity and reliability.

Key Features
  • High detecting sensitivity for precise packaging
  • Storage capacity for 100 product types
  • Data interface with USB and Ethernet connectivity
  • Full stainless steel construction meeting HACCP food safety standards
  • Easy-to-dismantle transport mechanism for maintenance and cleaning
Technical Specifications
Model TY-170 TY-210
Packaging Speed 30~50 bpm 50 bpm
Bag Size 100-160(L)*100-230(W)mm 100-180(L)*120(W)mm
Packaging Weight 1-1.5kg 1-2kg
Sealing Type Reticulate pattern sealing; double zipper sealing
Power Supply 3 phase 380V 50HZ, 3KW 3 phase 380V 50HZ, 5KW
Air Consumption 5-8kgf/cm²; 0.4m³/min 0.6m³/min
Bag Type Flat bag, stand-up bag, zipper bag Flat bag, stand-up bag, zipper bag, paper bag, etc.
Net Weight 1,600kg 1,800kg
Machine Dimension 1,550(L)*1,350(W)*1,400(H)mm 1,480(L)*1,320(W)*1,510(H)mm
High Sensitivity 380V 70bags/Min Bag In Bag Packaging Machine Horizontal 0
