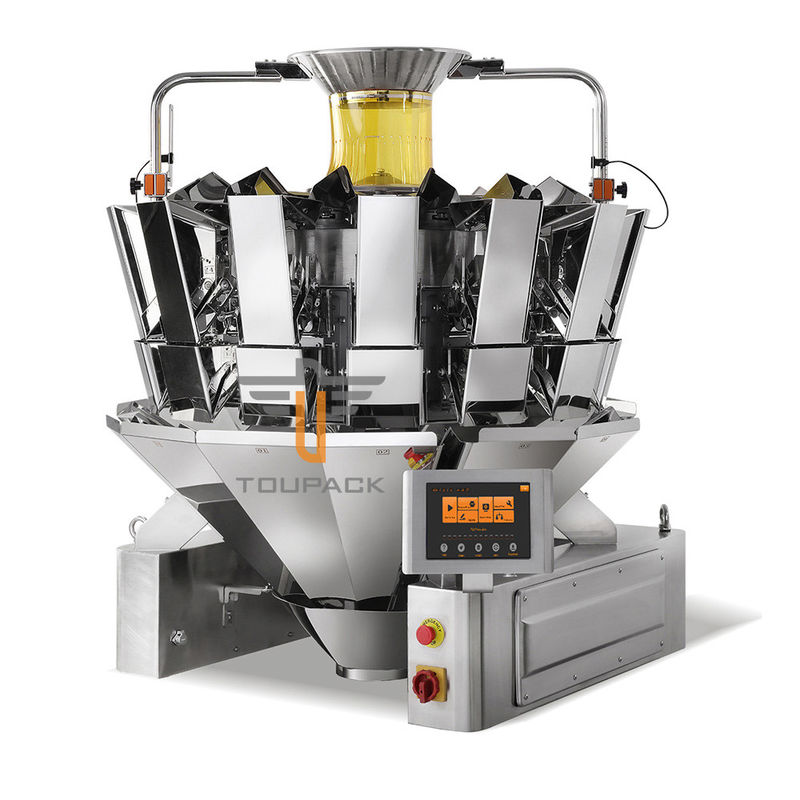

14 Head 120WPM Automated Packaging System With CE Certificate

14 Head 120WPM Automated Packaging System With CE Certificate

CE Certificate automated packaging system

120WPM automated packaging system

120WPM automated packaging equipment

Place of Origin:

Guangdong zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-A-M/P14-2

Contact Us
Request A Quote
Product Details
Application:
Quantitative Weighing And Packaging Of Frozen Food
Type:
PLC Control
Function:
Touch Screen Display, Easy Operation
Material:
Stainless Steel
Automate Grade:
Automate
Power Supply:
220/110V
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden case
Delivery Time
15-30 working days
Payment Terms
L/C, T/T
Supply Ability
50 Sets/Month
Product Description


14 Head M/P14-2 Feeding Weighing Filling Sealing Frozen Food Automated Packaging System



Main Function & Features:
1. Professional digital weighing module with high precision and good stability
2. Control system: MCU or PLC (optional).
3. Touch screen interface with different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.
4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.
5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.
6. Weighing and counting function to meet diverse needs from customers.
7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.
8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.
9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.
10. Modular design of control system for easy maintenance and cost-saving




Specifications:

Model TY-A-M14-2;TY-A-P14-2
Max. Weighing (one hopper) 20-1500g
Accuracy x (0.5)
Max. Scale Interval 0.1g
Max. Speed 120 WPM
Hopper Volume 1.6L / 2.5L
Control System MCU / PLC
HMI 7’’ / 10’’ color touch screen
Power Supply AC220V±10% 50HZ/60HZ, 1.5KW
Packing Dimension 1140(L)*1140(W)*1853(H)mm
Package weight 500kg






Applications:

Applicable for weighing of granular, bar-shaped products, such as sunflower / melon seeds, almonds, pistachios, pine nuts, candies, puffed food, beans, frozen food, pet food, snacks, hardware and chemicals.







Details:

14 Head 120WPM Automated Packaging System With CE Certificate 0
