Name: 30WPM Stainless Steel 304 Conveyor Belt Weighing System 12 Belt
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TY-A-P12-1
Price: 18,500.00 USD
Availability: InStock

Home > products > Fruit And Vegetable Packaging Machine >

30WPM Stainless Steel 304 Conveyor Belt Weighing System 12 Belt

30WPM conveyor belt weighing system

Stainless Steel 304 Conveyor Belt Weighing System

30WPM weighing conveyor belt

Place of Origin:

Guangdong zhongshan China

Brand Name:

TOUOPACK

Certification:

Model Number:

TY-A-P12-1

Request A Quote

30WPM Stainless Steel 304 Conveyor Belt Weighing System 12 Belt

Product Details

Material:

Stainless Steel 304

Max. Speed:

10~30 WPM

Accuracy:

0.1g

HMI:

7'' Color Touch Screen

Control System:

MCU / PLC

After Warranty Service:

Video Technical Support, Online Support

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Wooden case

Delivery Time

15-30 working days

Payment Terms

L/C, T/T

Supply Ability

50 Sets/Month

Mesh Bag Packing Machine Onion Mesh Bags Clipping Machine Fruits & Vegetables Mesh Bagging Machine

Get Best Price

video

300WPM 1000g Fruit And Vegetable Packaging Machine Weight Sorting Machine

Get Best Price

video

5.0L Fruit And Vegetable Packaging Machine Automatic Vffs Multihead Weigher Salad Bagging Machine

Get Best Price

video

SS316 Weighing Filling Machine Vertical Lettuce Watercress 500g Baby Carrot Weighing Packing Detecting Machine

Get Best Price

Contact Now

Product Description

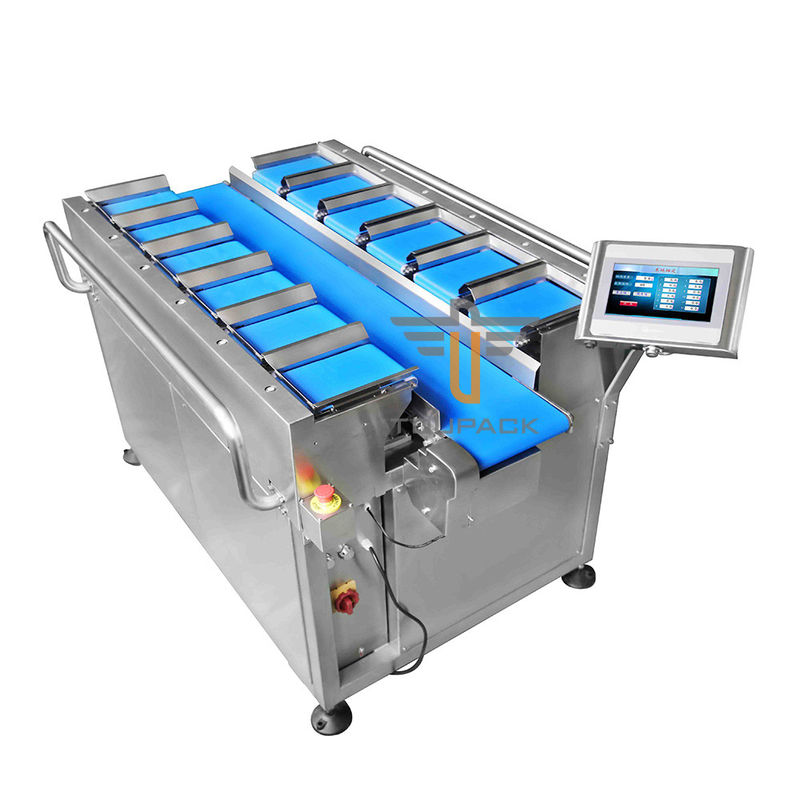

12 Belt Combination Stainless Steel 304 Quick Response Belt Scale For Weighing Fruit Vegetable

Main Function & Features:

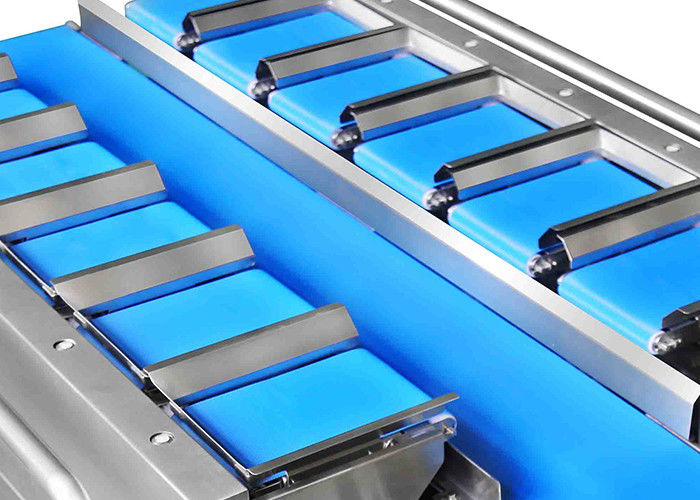

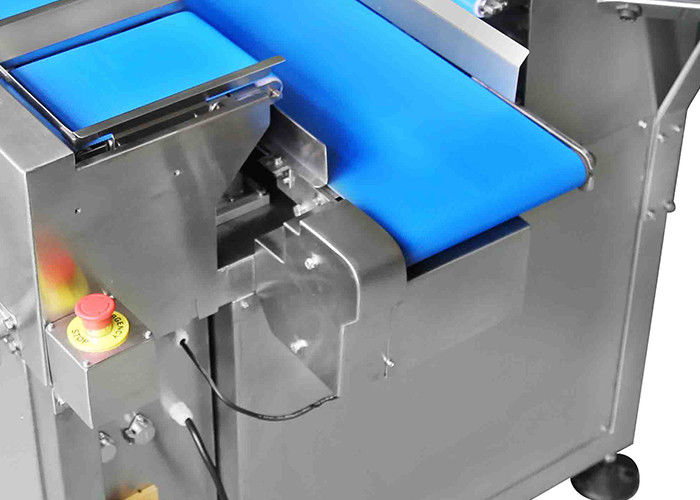

1. Dismountable belt scale for easy cleaning;

2. SUS304 for the whole machine frame. IP 65 dust and water proof design.

3. Alarm light for single overweight beyond preset spec., as well as alarm light for abnormal product or non-combination.

4. Machine will stop when it reaches the preset target production or weighing quantity.

5. Combination can be achieved per product weight or product quantity.

6. Able to set up priority combination as well as belt number limit.

7. Able to set up stagger discharge interval and belt number for blending weighing.

Specifications:

Model	TY-A-P12-1
Max. Weighing (one belt)	2,000g
Accuracy	x (0.5)
Min. Scale Interval	0.1g
Max. Speed	30 WPM
Control System	PLC
HMI	7” / 10” color touch screen
Power Supply	AC220V ±10% 50HZ/60HZ, 1KW
Unit Scale Size	220(L)*160(W)mm
Packing Dimension	2,000(L)1,400(W)1,290(H)mm
Package weight	375kg

Applications:

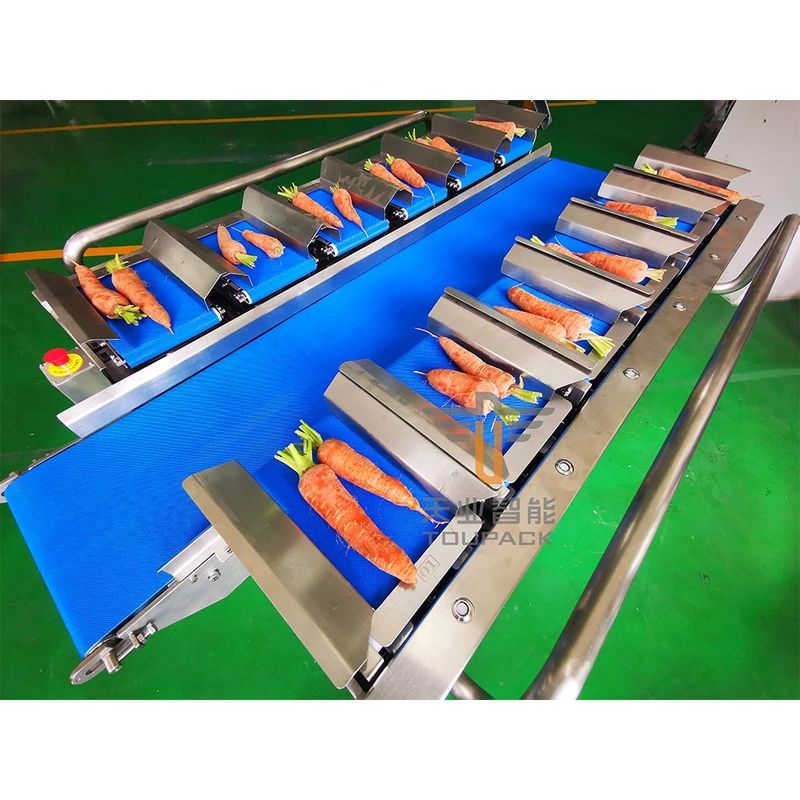

Applicable for weighing of medium bag / box packed products that are of irregular shape, large unit size or easy to get damaged during weighing, like green vegetables, fruits, meat loaf, or such seafood as fish, lobster, etc
