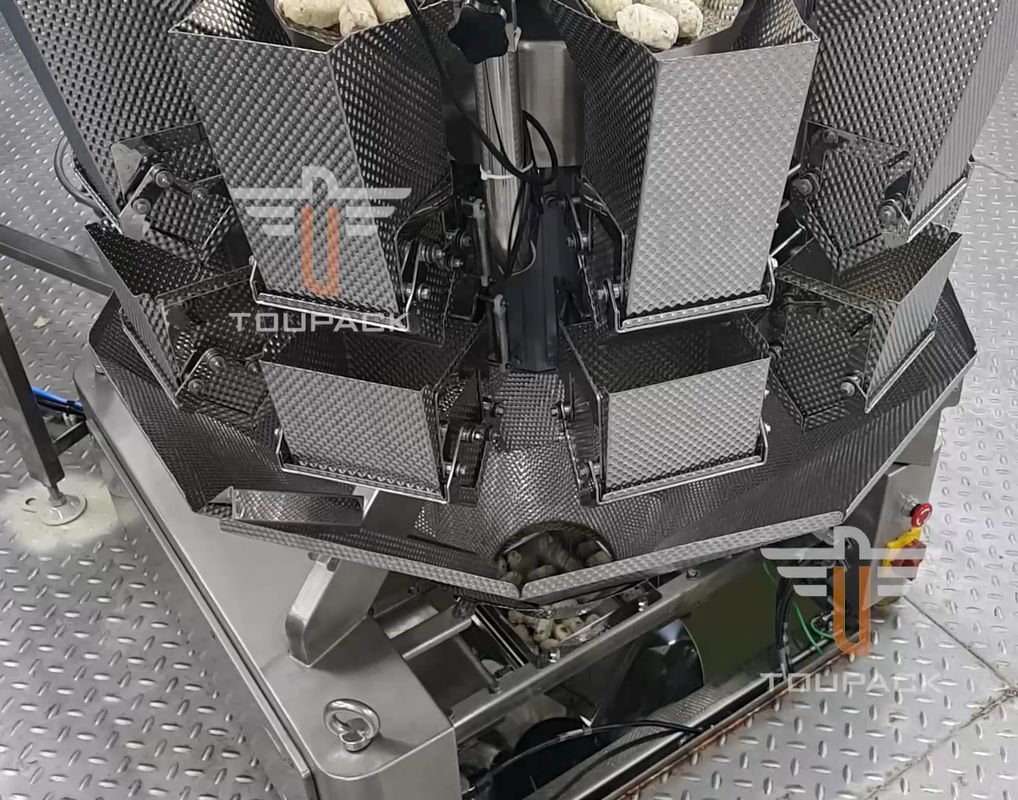

Weighing Packaging Combination Rice Beam Multi-Head Packing Weigher Conveyor Machine

Weighing Packaging Combination Rice Beam Multi-Head Packing Weigher Conveyor Machine

Rice Beam Multi-Head Packing Weigher

Conveyor Multi-Head Packing Weigher

Weighing Packaging Multi-Head Packing Weigher

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-1A-YZ-M1008-101 TY-1A-YZ-M1016-101

Contact Us
Request A Quote
Weighing Packaging Combination Rice Beam Multi-Head Packing Weigher Conveyor Machine
Weighing Packaging Combination Rice Beam Multi-Head Packing Weigher Conveyor Machine Weighing Packaging Combination Rice Beam Multi-Head Packing Weigher Conveyor Machine
Product Details
Product Name:
All In One Packing Machine
Body Frame:
SUS304
Max Film Width:
420mm
Max Speed:
100 Bpm (empty Bags)
Accuracy:
0.1 G
HMI:
7'' / 10'' Color Touch Screen
Control System:
MCU / PLC
Power Supply:
AC220V ±10% 50HZ/60HZ, 2KW
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Pollywood case
Delivery Time
3 -20 days after payment arranged
Payment Terms
L/C, D/P, T/T
Supply Ability
100set/month
RELATED PRODUCTS
Good price Grains Soybeans Cereal Multi-Head Packing Conveyor Belt Automatic Weigher Machine online video

Grains Soybeans Cereal Multi-Head Packing Conveyor Belt Automatic Weigher Machine

Get Best Price
Good price all in one weighing and packing Chocolate Machine Wrapping Snack Food online video

all in one weighing and packing Chocolate Machine Wrapping Snack Food

Get Best Price
Good price Food Grade Multihead Combination Weigher Packing System SUS304 Puffed Snacks online video

Food Grade Multihead Combination Weigher Packing System SUS304 Puffed Snacks

Get Best Price
Good price VFFS 320/420 Cashew Vertical Form Fill Seal Packaging Machine online video

VFFS 320/420 Cashew Vertical Form Fill Seal Packaging Machine

Get Best Price
Contact Us
Contact Now
Product Description

Weighing Packaging Combination Beam Multi-Head Packing Weigher Conveyor Save Cost Efficient Machine





Application & Features:



1. Select the best combination immediately from diversified weight combinations through computer with perfect combination of high precision and high speed.

2. High precision data-type weighing sensor realizes precise weighing.

3. Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.

4. It’s clean and sanitary with all stainless steel parts. Full sealed design prevents accumulation of material and facilitates cleaning.

5. It can fine the opening and closing speed of hopper door according to the features of items to be weighed, and prevent crushing and blocking of material.

6. With powerful digital automatic counting function, it can record the index for each batch of product such as total bag number; pass rate and difference of single bag, etc.







Main Configuration:



1. Body frame: SUS304

2. Max film width: 420mm.

3. Max speed: 100 bpm (empty bags).

4. Packaging material: standard heat sealable composite film.

5. Main electrical configuration of packaging machine:

-- MITSUBISHI PLC

-- 2 sets of Panasonic servo system

-- AIRTAC pneumatic parts

-- Banner photoelectric sensor

-- Pneumatic hot stamp printer (NANYUN)

6. One set of former free of charge (film width: 420mm, double clip seal)

7. 10” touch screen





Specifications:



Model TY-1A-YZ-M1008-101,TY-1A-YZ-M1016-101
Max. Weighing (one hopper) 300g
Weighing Accuracy x (0.5)
Min. Scale Interval 0.1g
Hopper Q’ty 10
Hopper Volume 0.8L / 1.6L
Packing Speed 80 bpm (empty bags)
Power Supply AC220V ±10% 50HZ/60HZ, 2.5KW
Machine Dimension 1,457(L)*1,080(W)*2,313(H)mm (0.8L)
1,700(L)*1,211(W)*2,415(H)mm (1.6L)
Packing Weight 755kg (0.8L); 805kg (1.6L)





Detials:



Weighing Packaging Combination Rice Beam Multi-Head Packing Weigher Conveyor Machine 0

Weighing Packaging Combination Rice Beam Multi-Head Packing Weigher Conveyor Machine 1

Weighing Packaging Combination Rice Beam Multi-Head Packing Weigher Conveyor Machine 2





System Integration

Weighing Packaging Combination Rice Beam Multi-Head Packing Weigher Conveyor Machine 3

Office & Workshop



Weighing Packaging Combination Rice Beam Multi-Head Packing Weigher Conveyor Machine 4Weighing Packaging Combination Rice Beam Multi-Head Packing Weigher Conveyor Machine 5
