Name: Full automatic conveying weighting and packing machine integration for snack food .High efficiency and high accuracy
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TY-A-M/P14-1
Price: 16,500.00 USD
Availability: InStock

Home > products > Snack Food Packaging Machine >

Full automatic conveying weighting and packing machine integration for snack food .High efficiency and high accuracy

2KW Snack Food Packaging Machine

1.6L Snack Food Packaging Machine

1.6L chips pouch packing machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE/ISO

Model Number:

TY-A-M/P14-1

Request A Quote

Product Details

Material:

Stainless Steel 304

Hopper Volume:

0.8L/0.5L/1.6L/2.5L

Max. Speed:

120 WPM

HMI:

7'' / 10'' Color Touch Screen

Power Supply:

AC220V ±10% 50HZ/60HZ, 2KW

Accuracy:

0.1g

Control System:

MCU / PLC

After Warranty Service:

Video Technical Support, Online Support

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

wooden case

Delivery Time

15-30 working days

Payment Terms

T/T

Supply Ability

50 Sets/Month

Product Description

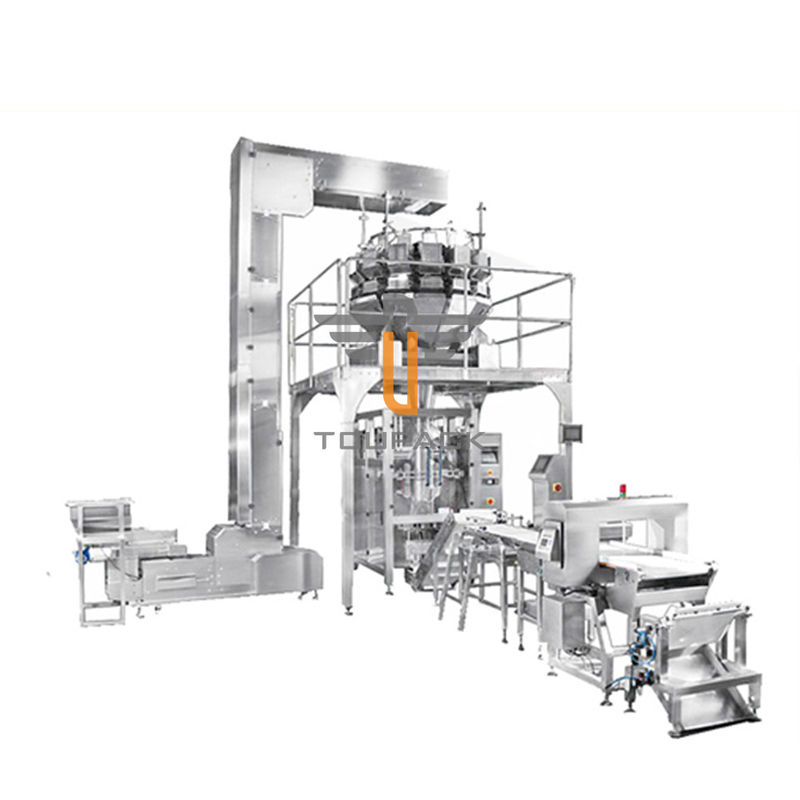

Full Automatic Conveying Weighting and Packing Machine for Snack Food

High Efficiency and High Accuracy Solution

Product Attributes

Material	Stainless Steel 304
Hopper Volume	0.8L/0.5L/1.6L/2.5L
Max. Speed	120 WPM
HMI	7'' / 10'' Color Touch Screen
Power Supply	AC220V ±10% 50HZ/60HZ, 2KW
Accuracy	0.1g
Control System	MCU / PLC
After Warranty Service	Video Technical Support, Online Support

Product Description

Stainless Steel 304 14 Multi Head Weigher for puffed food such as potato chips, banana chips, etc.

Applications

Applicable for weighing of all types of small-sized/dosed granular products, including:

Prepared herbal medicine
Tea and seeds
MSG and chicken essence seasoning
Coffee beans and chocolate beans

Main Features

Professional digital weighing module for high precision and stability
Optional MCU or PLC control system
Touch screen interface with multi-language support (up to 16 languages)
99 preset product parameters for diverse requirements
Sequential hopper discharge to prevent product blocking
Weighing and counting functions for versatile operation
Real-time monitoring of vibration pan amplitude and product weight
SUS304/316 construction with IP65 dust/waterproof design
Easy cleaning function with hoppers in opening state
Modular control system design for maintenance efficiency
Optimized for small granular products with high speed and precision

Specifications

Model	TY-A-M14-1; TY-A-P14-1
Max. Weighing (one hopper)	5-200g
Accuracy	x (0.5)
Min. Scale Interval	0.1g
Max. Speed	120 WPM
Hopper Volume	0.8L/0.5L
Control System	MCU / PLC
HMI	7'' / 10'' color touch screen
Power Supply	AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension	1,370(L)1,060(W)1,105(H)mm
Package weight	240kg
