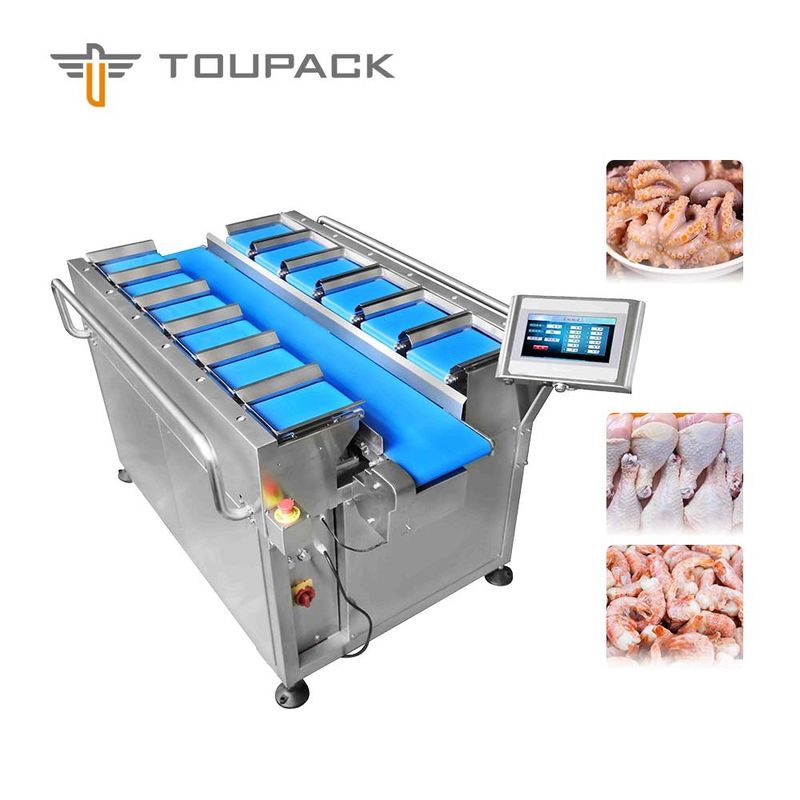

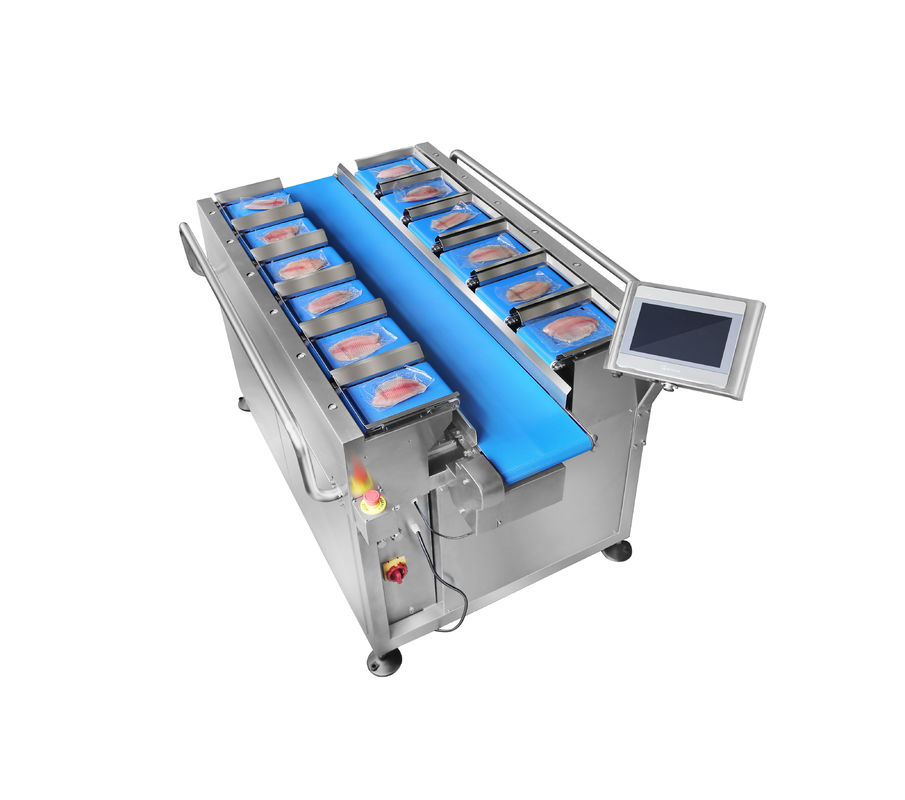

12 Head Weigher Belt Scale For Weighing Sea Food And Fish
Brief introduction
Manual Semi-automatic combination weighing Scale MHW-M10/12 is our company’s newly-developed product, which can be used to dynamically test the weigh of the product with measuring range of less than 40 kilogram on-line. With the Germany HBM sensor, advanced information processing software of dynamic weight and a variety of software, electronic and machine options, this series of check weigher can meet the requirement of on-line weighing in such industries as pharmacy, daily chemical, food and battery.
Features:
1. Professional digital weighing module with high precision and good stability
2. Control system: MCU or PLC (optional).
3. Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.
4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.
5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.
6. Weighing and counting function to meet diverse needs from customers.
7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.
8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.
9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.
10. Modular design of control system for easy maintenance and cost-saving.
Techanical and Character :
1. Upper storage funnel is divided to weight two different products.
2. Separate main vibrator, control the thickness of product independently.
3. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.
4. Uniform design standards, and mould processing, contribute to better interchangeability for spare parts.
5. Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy.
Purpose:
1. A direct solution for fixed weight package
2. Avoid weighing loss
3. Avoid material waste
4. Working efficiency improvement
Specifications:
| Model |
TY-1A-P1216-101 |
| Max. Weighing (one hopper) |
1000g |
| Accuracy |
x (0.5) |
| Min. Scale Interval |
0.1g |
| Max. Speed |
10-30 WPM |
| Hopper Volume |
customize |
| Control System |
MCU / PLC |
| HMI |
7’’ / 10’’ color touch screen |
| Power Supply |
AC220V ±10% 50HZ / 60HZ, 2KW |
| Packing Dimension |
2000(L)*1200(W)*1240(H)mm |
| Package weight |
375kg |
|
Customer-made Case:
