High Precision ISO Certified 60WPM Snack Food Packaging Machine For Peanut

High Precision ISO Certified 60WPM Snack Food Packaging Machine For Peanut

ISO Certified Snack Food Packaging Machine

60WPM Snack Food Packaging Machine

ISO Certified zip lock packing machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE/ISO

Model Number:

TY-A-M/P-10-1

Contact Us
Request A Quote
Product Details
Material:
Stainless Steel 304
Hopper Volume:
0.8L/0.5L
Max. Speed::
60 WPM
Accuracy:
0.1~1g
HMI:
7'' / 10'' Color Touch Screen
Control System:
MCU / PLC
Power Supply:
AC220V ±10% 50HZ/60HZ, 1.5KW
After Warranty Service:
Video Technical Support, Online Support
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
wooden case
Delivery Time
15-30 working days
Payment Terms
L/C, T/T
Supply Ability
50 Sets/Month
Product Description

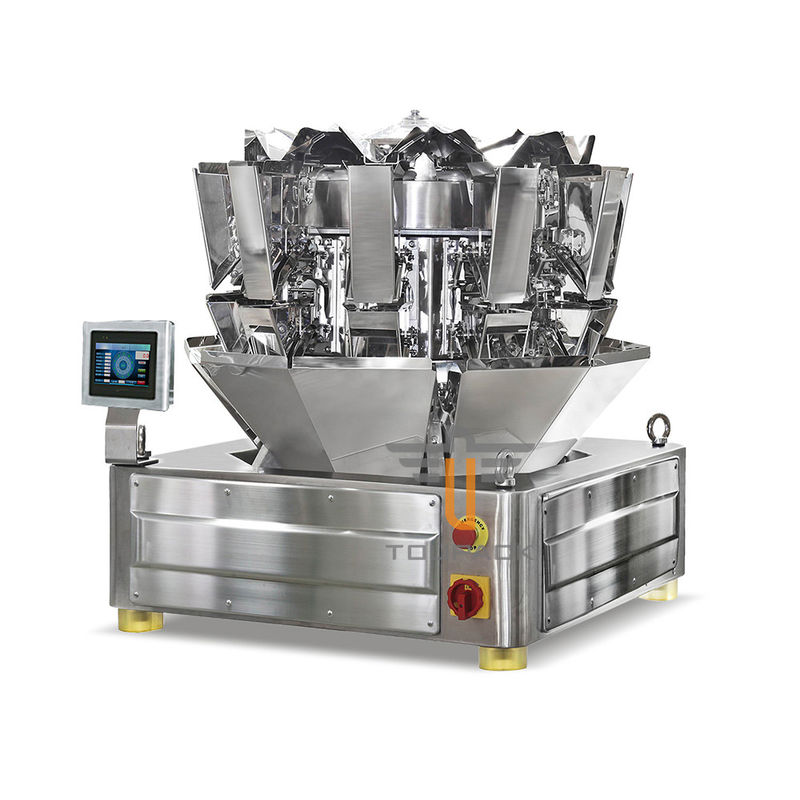

Stainless Steel 304 10 Head M/P 0.8L Weigher Automatic Granule Peanut Packing Machine for food industry







Application:

Applicable for weighing of all types of small-sized / dosed, granular products, such as prepared herbal medicine, tea, seeds, MSG, chicken essence seasoning, coffee beans, chocolate beans, etc.




Main Function & Features:

1. Professional digital weighing module for high precision and good stability.

2. Control system: MCU or PLC (optional).

3. Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.

4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.

5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.

6. Weighing and counting function to meet diverse needs from custom

7. Real-ti me display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.

8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.

9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.

10. Modular design of control system for easy maintenance and cost-saving.

11. Specifically designed for small granular products with high precision and fast working speed.

12. Compact size for space saving.







Specifications:

Model TY-1A -M10-1TY-1A -P10-1
Max. Weighing (one hopper) 5-200g
Accuracy x (0.5)
Min. Scale Interval 0.1g
Max. Speed 60 WPM
Hopper Volume 0.8L/0.5L
Control System MCU / PLC
HMI 7’’ / 10’’ color touch screen
Power Supply AC220V ±10% 50HZ/60HZ, 1.5KW
Packing Dimension 1,370(L)*1,060(W)*1,205(H)mm
Package weight 220kg






Details:

High Precision ISO Certified 60WPM Snack Food Packaging Machine For Peanut 0
