Dried Lemon Fruit Preserved Fruit Multi-Head Rotary Vacuum High-Speed Premade Bag Packing Weigher Conveyor Belt

Dried Lemon Fruit Preserved Fruit Multi-Head Rotary Vacuum High-Speed Premade Bag Packing Weigher Conveyor Belt

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-1A-YZ-M1008-101 TY-1A-YZ-M1016-101

Contact Us
Request A Quote
Product Details
Product Name:
Snake Food Packing Machine
Body Frame:
SUS304
Packaging Type:
Stand-up Pouch, Bags, Film, Foil, Pouch
Core Components:
PLC, Motor, Pressure Vessel, Pump
Vacuum Source:
120 L/min, 0.06-0.1 Mpa
Capacity:
100 Bags/min
Bags Size:
W:60~130 Mm L:55-180 Mm
Item Name:
Vacuum Packing Machine
Bag Sealing Method:
Cool Water And Transient Heating
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Pollywood case
Delivery Time
3 -20 days after payment arranged
Payment Terms
L/C, D/P, T/T
Supply Ability
100set/month
Product Description

Dried Lemon Dried Fruit Preserved Fruit Multi-Head Rotary Vacuum High-Speed Packing Weigher Conveyor Belt





Application & Features:



1.The machine can pack different product which need vacuum.
2.Speed can be adjusted by frequency conversion within the range.
3.Hygienic construction,the product contact parts adopt 304 stainless steel.
4.Easy to operate,using the PLC and touch screen control system.
5.No pouch or pouch is not opened completely,no feeding,no sealing.
6.Sealing temperature detection.If failure of heating pipe,it will alarm.





Main Configuration:



1. Body frame: SUS304

2. Max film width: 420mm.

3. Max speed: 100 bpm (empty bags).

4. Packaging material: standard heat sealable composite film.

5. Main electrical configuration of packaging machine:

-- MITSUBISHI PLC

-- 2 sets of Panasonic servo system

-- AIRTAC pneumatic parts

-- Banner photoelectric sensor

-- Pneumatic hot stamp printer (NANYUN)

6. One set of former free of charge (film width: 420mm, double clip seal)

7. 7/10” touch screen





Specifications:



Model TY-1A-YZ-M1008-101,TY-1A-YZ-M1016-101
Max. Weighing (one hopper) 300g
Weighing Accuracy x (0.5)
Min. Scale Interval 0.1g
Hopper Q’ty 10
Hopper Volume 0.8L / 1.6L
Packing Speed 80 bpm (empty bags)
Power Supply AC220V ±10% 50HZ/60HZ, 2.5KW
Machine Dimension 1,457(L)*1,080(W)*2,313(H)mm (0.8L)
1,700(L)*1,211(W)*2,415(H)mm (1.6L)
Packing Weight 755kg (0.8L); 805kg (1.6L)





Customer-made Case:

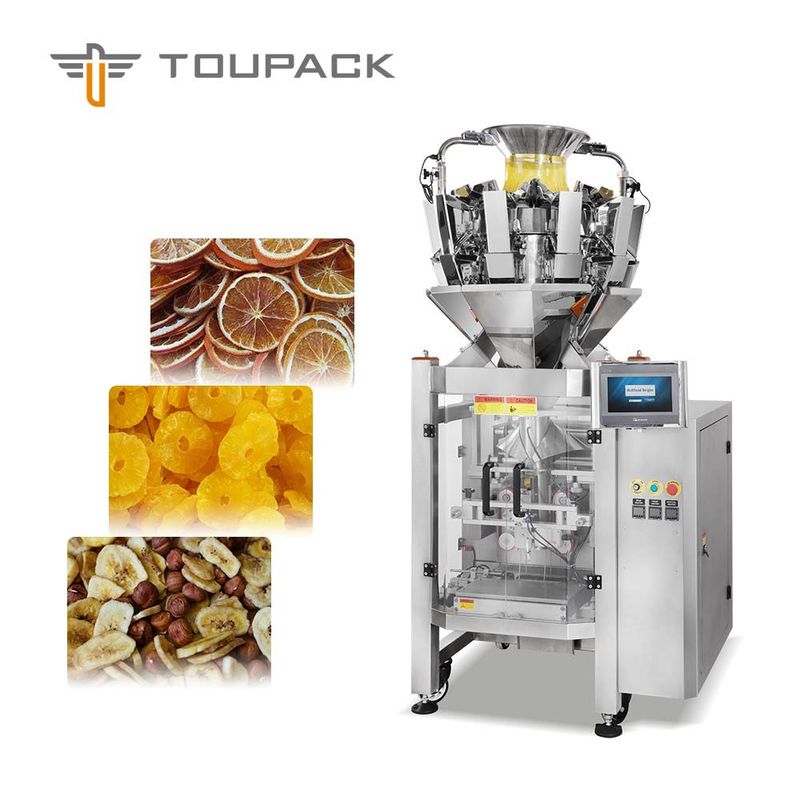

Weigher

Dried Lemon Fruit Preserved Fruit Multi-Head Rotary Vacuum High-Speed Premade Bag Packing Weigher Conveyor Belt 0

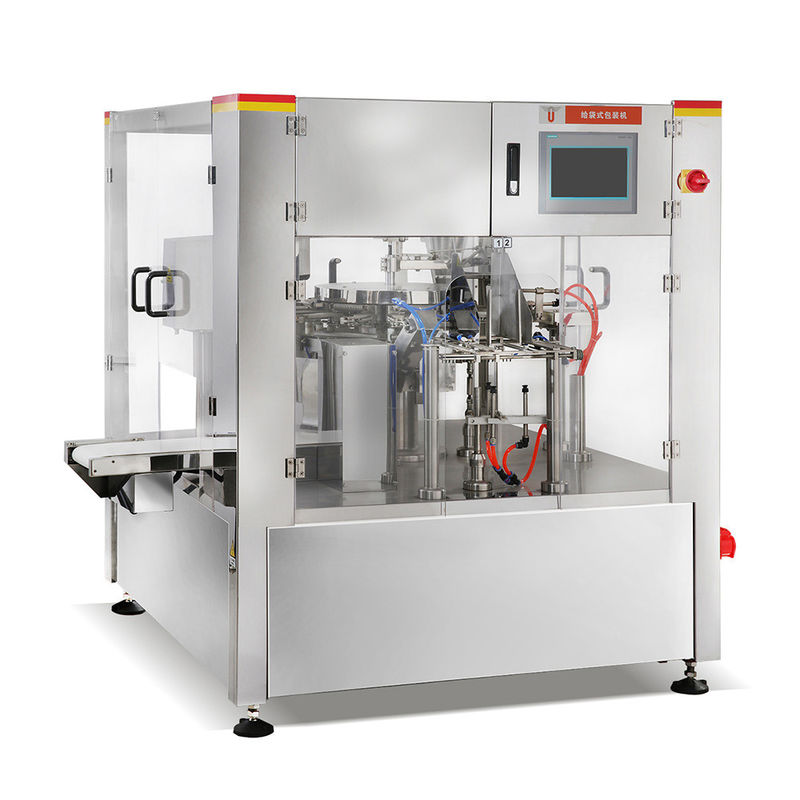

Rotary bag packing machine

Dried Lemon Fruit Preserved Fruit Multi-Head Rotary Vacuum High-Speed Premade Bag Packing Weigher Conveyor Belt 1



Finished product conveyor

Dried Lemon Fruit Preserved Fruit Multi-Head Rotary Vacuum High-Speed Premade Bag Packing Weigher Conveyor Belt 2





Office & Workshop



Dried Lemon Fruit Preserved Fruit Multi-Head Rotary Vacuum High-Speed Premade Bag Packing Weigher Conveyor Belt 3



Dried Lemon Fruit Preserved Fruit Multi-Head Rotary Vacuum High-Speed Premade Bag Packing Weigher Conveyor Belt 4
