30WPM Fruit And Vegetable Packaging Machine

30WPM Fruit And Vegetable Packaging Machine

AC220V Fruit And Vegetable Packaging Machine

30WPM Fruit And Vegetable Packaging Machine

30WPM fruit and vegetable packing machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-1A-ZH-M2008-101; TY-1A-P2008-101

Contact Us
Request A Quote
Product Details
Material:
Stainless Steel 304
Max. Speed:
10~30 WPM
Accuracy:
0.1g
HMI:
7'' Color Touch Screen
Control System:
MCU / PLC
Power Supply:
AC220V ±10% 50HZ/60HZ, 2KW
After Warranty Service:
Video Technical Support, Online Support
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Pollywood case
Delivery Time
3 -20 days after payment arranged
Payment Terms
L/C, D/P, T/T
Supply Ability
100set/month
Product Description
30WPM Fruit And Vegetable Packaging Machine
Product Specifications
Attribute Value
Material Stainless steel 304
Max. Speed 10~30 WPM
Accuracy 0.1g
HMI 7" color touch screen
Control System MCU / PLC
Power Supply AC220V ±10% 50HZ/60HZ, 2KW
After Warranty Service Video technical support, Online support

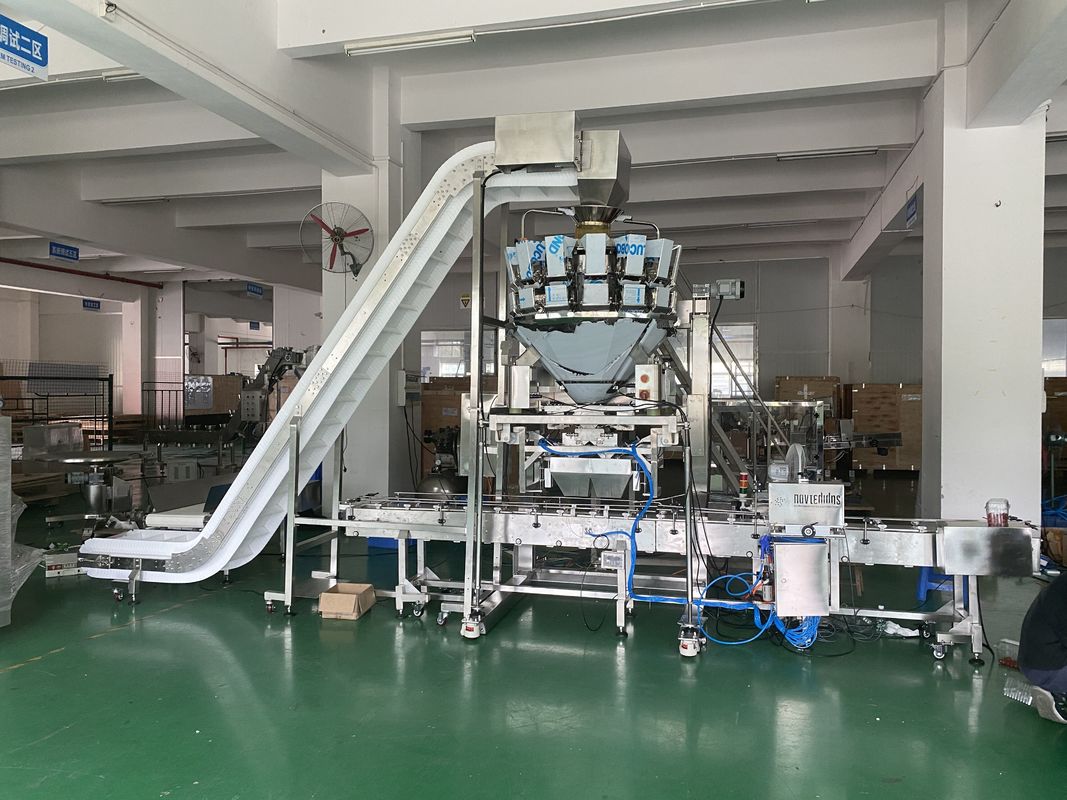

Multi-Head Weigher Packaging Machine for Cherry Tomatoes and Mini Fruits

This precision packaging machine is designed for weighing and packaging granular and bar-shaped products including fruits, nuts, candies, frozen foods, and industrial components.

Key Features
  1. Professional digital weighing module with high precision (0.1g) and excellent stability
  2. Flexible control system options: MCU or PLC available
  3. User-friendly 7" touch screen interface with multi-language support (up to 16 languages) and USB software upgrades
  4. 99 preset product parameters and factory recovery function for diverse packaging requirements
  5. Sequential hopper discharge system prevents product blockage
  6. Dual-function operation: weighing and counting capabilities
  7. Real-time monitoring of vibration amplitude and product weight in each hopper
  8. Constructed with SUS304/316 stainless steel and IP65 dust/waterproof rating
  9. Easy maintenance with cleaning mode that opens all hoppers
  10. Modular control system design simplifies maintenance and reduces costs
Technical Characteristics
  1. Dual-product upper storage funnel for simultaneous weighing of different items
  2. Independent main vibrator controls product thickness precisely
  3. Integrated frame and cabinet design enhances stability and accuracy
  4. Standardized components with mold processing for better interchangeability
  5. Stabilized actuator reduces mechanical vibration and improves load cell accuracy
Detailed Specifications
Model TY-1A-P1216-101
Max. Weighing (one hopper) 1000g
Accuracy ±0.5g
Min. Scale Interval 0.1g
Max. Speed 10-30 WPM
Hopper Volume Customizable
Control System MCU / PLC
HMI 7" / 10" color touch screen
Power Supply AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension 2000(L)*1200(W)*1240(H)mm
Package Weight 375kg
