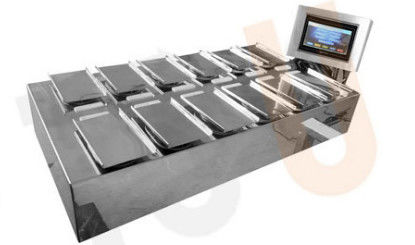

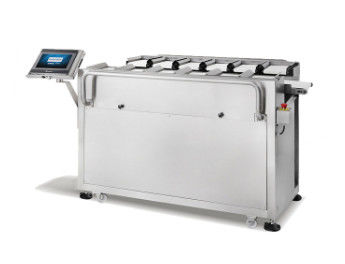

Name: MCU Control 10WPM Fruit And Vegetable Packaging Machine Combination Scale
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TY-1A-ZH-M2008-101
Price: 18,500.00 USD
Availability: InStock

Home > products > Fruit And Vegetable Packaging Machine >

MCU Control 10WPM Fruit And Vegetable Packaging Machine Combination Scale

10WPM Fruit And Vegetable Packaging Machine

MCU Control Fruit And Vegetable Packaging Machine

10WPM combination scale

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE/ISO 9001

Model Number:

TY-1A-ZH-M2008-101

Request A Quote

MCU Control 10WPM Fruit And Vegetable Packaging Machine Combination Scale

Product Details

Material:

Stainless Steel 304

Accuracy:

0.1g

Control System:

MCU / PLC

After Warranty Service:

Video Technical Support, Online Support

Max. Speed:

10~30 WPM

HMI:

7'' Color Touch Screen

Power Supply:

AC220V ±10% 50HZ/60HZ, 2KW

Certification:

CE/ISO 9001

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

wooden case

Delivery Time

15-30 working days

Payment Terms

L/C, T/T

Supply Ability

50 Sets/Month

Mesh Bag Packing Machine Onion Mesh Bags Clipping Machine Fruits & Vegetables Mesh Bagging Machine

Get Best Price

video

300WPM 1000g Fruit And Vegetable Packaging Machine Weight Sorting Machine

Get Best Price

video

5.0L Fruit And Vegetable Packaging Machine Automatic Vffs Multihead Weigher Salad Bagging Machine

Get Best Price

video

SS316 Weighing Filling Machine Vertical Lettuce Watercress 500g Baby Carrot Weighing Packing Detecting Machine

Get Best Price

Contact Now

Product Description

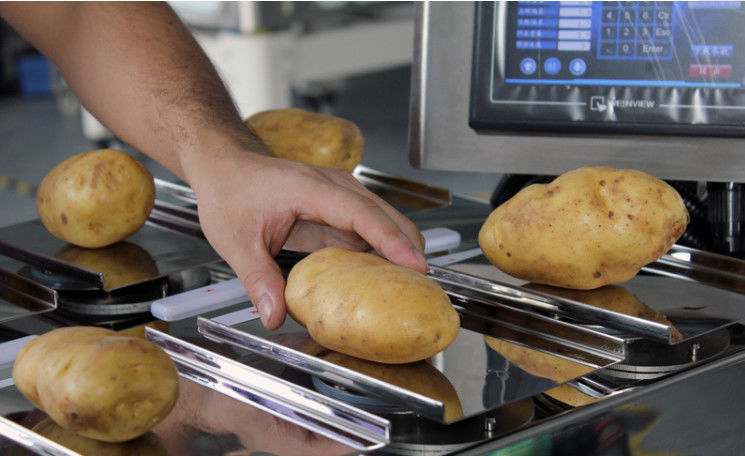

Semi-Automatic Combination Scale for Fruit Vegetable Potato Tomato Onion Bunch of Grape etc

Application:

For weighing of light or bulky products,such as large-size nuts,vegetable,fruits, fresh fish etc.

Features :

1. Professional digital weighing module with high precision and good stability

2. Control system: MCU or PLC (optional).

3. Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.

4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.

5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.

6. Weighing and counting function to meet diverse needs from customers.7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.

8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.

9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.

10. Modular design of control system for easy maintenance and cost-saving.

Specifications:

Model	TY-1A-ZH-M2008-101; TY-1A-P2008-101
Max. Weighing (one hopper)	100g
Accuracy	x (0.5)
Min. Scale Interval	0.1g
Max. Speed	10-30 WPM
Hopper Volume	customize
Control System	MCU / PLC
HMI	7’’ / 10’’ color touch screen
Power Supply	AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension	2000(L)1200(W)1240(H)mm
Package weight	375kg

Details:

Company & Factory Pictures:

MCU Control 10WPM Fruit And Vegetable Packaging Machine Combination Scale 1
