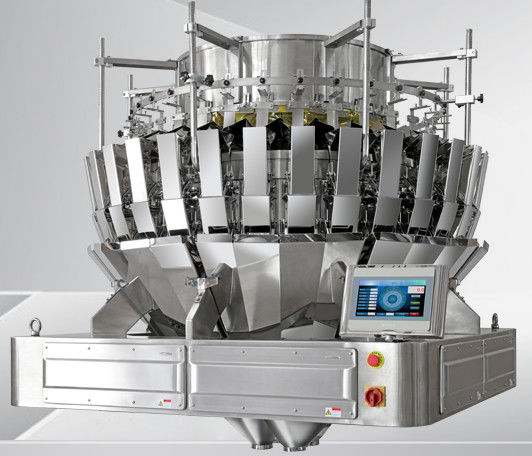

32 Head multihead weigher manufacturer for Mixed nuts, pet food,noodles,jelly,and other snack food
Applications:
Applicable for weighing of granular or small dose products with good flowability.
Main Function & Features:
1. Professional digital weighing modular with high precision and good stability.
2. Operation authorization set-up in HMI; 16 languages to be selected, application software upgraded through USB.
3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
4. Weighing hopper able to discharge in turn, effectively prevent products from blocking.
5. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of machine.
6. Machine body with SUS304/316 for option, IP65 dust and waterproof design.
7.Cleaning Function: able to let the hoppers stay in opening for easy daily cleaning and maintenance.
8. Modular design of control system for easy maintenance and cost-saving.
9. 2-6 blended product weighing.
10. Able to keep good ratio precision of each blended product and high accuracy of the total weight.
Specifications:
| Model |
TY-A-M32-1；TY-A-P32-1 |
| Max. Weighing (one hopper) |
5-250g |
| Accuracy |
x (0.5) |
| Min. Scale Intervals |
0.1g |
| Max. Speed |
60P/M |
| Hopper Volume |
0.8L / 0.5l |
| Control System |
MCU / PLC |
| HMI |
10” color touch screen |
| Power Supply |
AC220V ±10% 50HZ/60HZ, 4KW |
| Packing Dimension |
Main Machine: 1,960(L)*1,890(W)*1,588(H)mm
Spare Parts: 1,350(L)*1,350(W)*938(H)mm
|
| Package weight |
Machine: 465kg
Spare Parts: 360kg
|

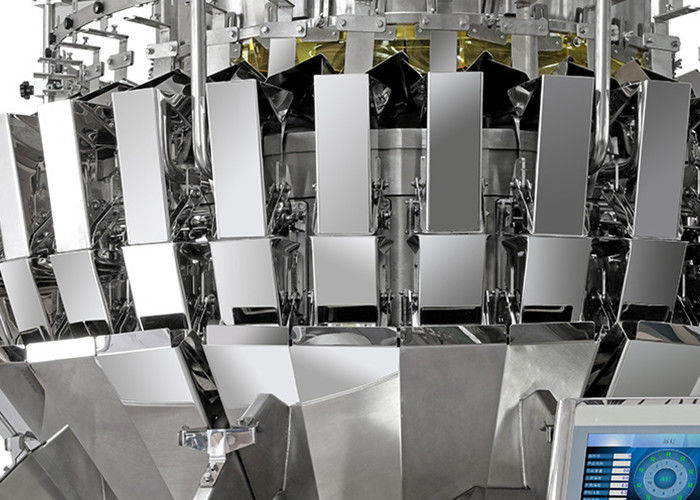

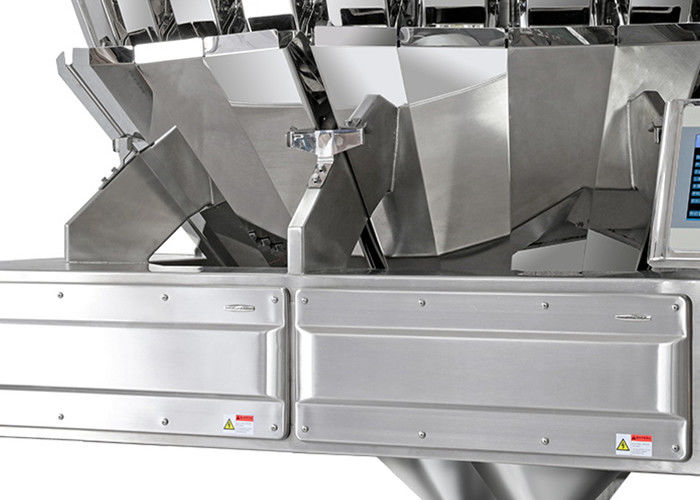

Details:
Company & Factory Pictures:
After-sale services:
1. Manual / Videos of machine installation, adjusting, maintenance are available for you.
2. If any problems happened, telecom or online face to face communication available 24 hours.
3. Engineers & technician Engineer available to serve machines for your countries.
4. The machine will have 1 year warranty of machine.
