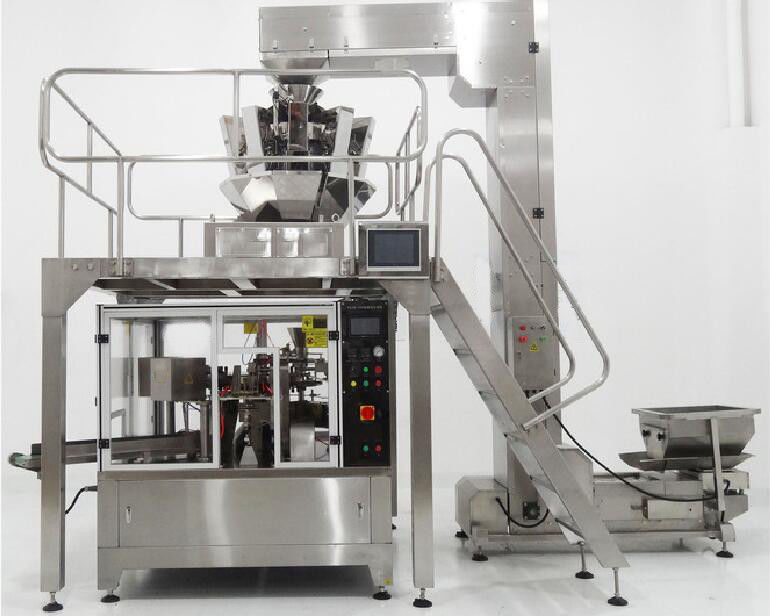

MCU Control 80bpm Frozen Food Packing Machine For Fish Ball

MCU Control 80bpm Frozen Food Packing Machine For Fish Ball

80bpm Frozen Food Packing Machine

MCU control Frozen Food Packing Machine

MCU control conveyor packing machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-1A-YZ-M1008-101,TY-1A-YZ-M1016-101

Contact Us
Request A Quote
Product Details
Product Name:
Frozen Food Packing Machine
Body Frame:
SUS304
Max Film Width:
420mm-720mm
Max Speed:
100 Bpm (empty Bags)
HMI:
7'' Color Touch Screen
Control System:
MCU / PLC
Power Supply:
AC220V ±10% 50HZ/60HZ, 2KW
After Warranty Service:
Video Technical Support, Online Support
Automatic Grade:
Automatic
Function:
Sealing,Filling,Wrapping,Labeling,weighing
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Pollywood case
Delivery Time
3 -20 days after payment arranged
Payment Terms
L/C, D/P, T/T
Supply Ability
100set/month
Product Description

Frozen Meatball fried fish ball Multihead Weigher Packaging Conveyor Machine





Application & Features:



1. The entire process of feeding, measuring, filling and bag making, printing date, conveying and discharging is completed automatically.

2. Wide application range and strong material adaptability.

3. High measuring accuracy and high efficiency.

4. It is suitable for customers who require economical and practical, wide range of materials, and no special requirements for packaging.





Main Configuration:



1. Body frame: SUS304

2. Max film width: 420mm.

3. Max speed: 100 bpm (empty bags).

4. Packaging material: standard heat sealable composite film.

5. Main electrical configuration of packaging machine:

-- MITSUBISHI PLC

-- 2 sets of Panasonic servo system

-- AIRTAC pneumatic parts

-- Banner photoelectric sensor

-- Pneumatic hot stamp printer (NANYUN)

6. One set of former free of charge (film width: 420mm, double clip seal)

7. 10” touch screen





Specifications:



Model TY-1A-YZ-M1008-101,TY-1A-YZ-M1016-101
Max. Weighing (one hopper) 300g
Weighing Accuracy x (0.5)
Min. Scale Interval 0.1g
Hopper Q’ty 10
Hopper Volume 0.8L / 1.6L
Packing Speed 80 bpm (empty bags)
Power Supply AC220V ±10% 50HZ/60HZ, 2.5KW
Machine Dimension 1,457(L)*1,080(W)*2,313(H)mm (0.8L)
1,700(L)*1,211(W)*2,415(H)mm (1.6L)
Packing Weight 755kg (0.8L); 805kg (1.6L)





Customer-made case:



MCU Control 80bpm Frozen Food Packing Machine For Fish Ball 0

MCU Control 80bpm Frozen Food Packing Machine For Fish Ball 1

MCU Control 80bpm Frozen Food Packing Machine For Fish Ball 2
