Name: 3L 30 Times/Min 350mm OD Vibration Sorting Machine Stainless Steel
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: Linear Vibrating Screen
Price: 18,500.00 USD
Availability: InStock

Home > products > Weighing And Filling Machine >

3L 30 Times/Min 350mm OD Vibration Sorting Machine Stainless Steel

3L vibration sorting machine

30 Times/min vibration sorting machine

350mm OD vibration sorting machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE/ISO 9001

Model Number:

Linear Vibrating Screen

Request A Quote

Product Details

Body Material:

Main Body And Contact Surface Is SUS304. Vibration Device Is Cast Iron.

Vibration Pan Volume:

3L Or Per Customer’s Requirement

Max. Counting:

30 Times/min

Vibration Pan OD:

350mm Or Per Customer’s Requirement

HMI:

10‘’color Touch Screen

Power Supply:

Single Phase 220V 50HZ/60HZ

Material:

SUS 304

Certification:

CE/ISO 9001

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotaible

Packaging Details

wooden case

Delivery Time

15-30 working days

Payment Terms

L/C, T/T

Supply Ability

50 Sets/Month

720 Big Bag Automatic Weighing Multihead Weigher For Washing Powder Filling Machine

Get Best Price

video

Pillow Bags Automatic VFFS Packaging Machine For Pulses Nuts Beans

Get Best Price

video

Washing Powder Pouch Packing Machine Multihead Weighing Laundry Dertergent Powder Bag Filling Machine

Get Best Price

video

Chips Vacuum Nitrogen Metal Jar Grain Food Tin Can Sealer Popcorn Plastic Jar Tin Seal Machine

Get Best Price

Contact Now

Product Description

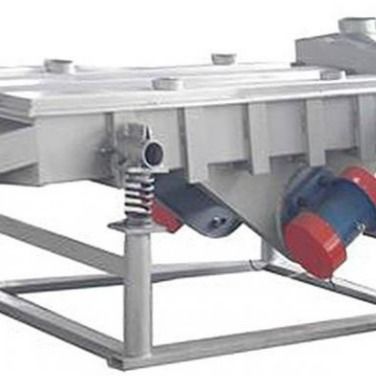

Powder Granular Linear Vibrating Counting Machine 2 Level Screening

Applications:

Mainly used in chemical, food, plastic, medical, metallurgical, glass, building material, grain, fertilizer, abrasives, ceramic industries, etc. for screening dried granular, powdered material.

Main Function & Features:

1. Linear vibrating screen uses vibration motor as vibration source to cause the material to be thrown up on the screen while moving forward. The material enters the feed inlet of the sieve evenly from the multi-layer screen to get different specifications of the product and is discharged from each outlet respectively.

2. Low energy consumption, high output, simple structure, easy maintenance, fully enclosed structure to avoid the powdered material form overflowing and automatic discharge. Suitable for flow production line.

Technical Parameters:

Contents	Specifications
Body Material	Carbon steel; Contact surface material is stainless steel.
Screening Level	2 level screening
Screening Capacity	8m³/h
Min. Exit Height	540mm or per requirement

Details:

3L 30 Times/Min 350mm OD Vibration Sorting Machine Stainless Steel 0

Materials:

3L 30 Times/Min 350mm OD Vibration Sorting Machine Stainless Steel 1

Scope of Application
The equipment can automatically discharge materials and is more suitable for assembly line operation. It is suitable for the screening and grading of powder and granular materials, and widely used in plastics, abrasives, chemical industry, medicine, building materials, grain, carbon, fertilizer and other industries.
