AC220V 2KW 100bpm Snack Food Packaging Machine High Efficiency

AC220V 2KW 100bpm Snack Food Packaging Machine High Efficiency

100bpm Snack Food Packaging Machine

AC220V 2KW Snack Food Packaging Machine

AC220V 2KW crisp packaging machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-1A-YZ-M1008-101 TY-1A-YZ-M1016-101

Contact Us
Request A Quote
Product Details
Product Name:
All In One Packing Machine
Body Frame:
SUS304
Max Film Width:
420mm
Max Speed:
100 Bpm (empty Bags)
Accuracy:
0.1 G
HMI:
7'' / 10'' Color Touch Screen
Control System:
MCU / PLC
Power Supply:
AC220V ±10% 50HZ/60HZ, 2KW
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Pollywood case
Delivery Time
3 -20 days after payment arranged
Payment Terms
L/C, D/P, T/T
Supply Ability
100set/month
Product Description

Fully Automatic Multihead Weigher And Granules Food melon seeds weighing and packaging line Machine



Application:



Applicable for weighing of all types of small-sized / dosed, granular products, such as prepared herbal medicine, tea, seeds, MSG, chicken essence seasoning, coffee beans, chocolate beans, etc.



High speed and high accuracy combination, select the best combination from plenty weights combination through computerized calculation.
Fine adjusted the opening and closing speed of the bucket door to avoid crush and block.
Quantitative weighing function.
304 Stainless steel structure, easy for cleaning.
Displaying every vibration for working performance monitor.
Presetting 99 sets of parameter for programming.
Multilanguage control panel. Chinese/English etc.





Specifications:



Model TY-A-M14-1; TY-A-P14-1
Max. Weighing (one hopper) 5-200g
Accuracy x (0.5)
Min. Scale Interval 0.1g
Max. Speed 120 WPM
Hopper Volume 0.8L/0.5L
Control System MCU / PLC
HMI 7’’ / 10’’ color touch screen
Power Supply AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension 1,370(L)*1,060(W)*1,105(H)mm
Package weight 240kg

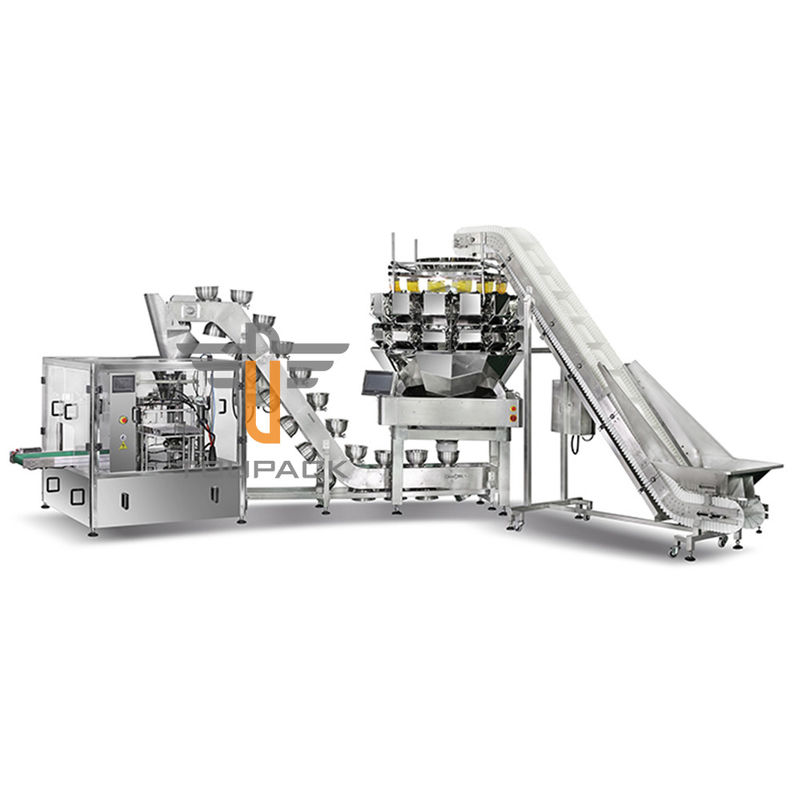

Intergrated system:



AC220V 2KW 100bpm Snack Food Packaging Machine High Efficiency 0



Product details:

A. Z type elevator: It is using to help user achieve product automatic feeding and stopping when packing machine need.
B. Multi-head weigher: using to automatic weighting and filling the product, very accurate,the weigher's computer determines the weight of product in each individual weigh hopper and identifies which combination contains the weight closest to the target weight.Then opens all the hoppers of this combination and the product falls, via a discharge chute, into a bagmaker or, alternatively, into a distribution system which places the product.
C. Platform: normally using to support weigher and easy for operator to cleaning and inspecting when real production.
D. Sealing part: adopt servo motor film pulling, servo motor sealing, working with horizontal zig cut effect, make the packing speed faster and bag sealing better.
E. Finished products conveyor: it is using to help user receive the product when after package and send into next process.

Machine adopt PLC control system and air cylinder for operation, make sure each parts can be working independent and easy for maintain and cleaning.


Customer-made Case:



AC220V 2KW 100bpm Snack Food Packaging Machine High Efficiency 1

AC220V 2KW 100bpm Snack Food Packaging Machine High Efficiency 2
