Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Model Number:
Z-Type Bucket Elevator

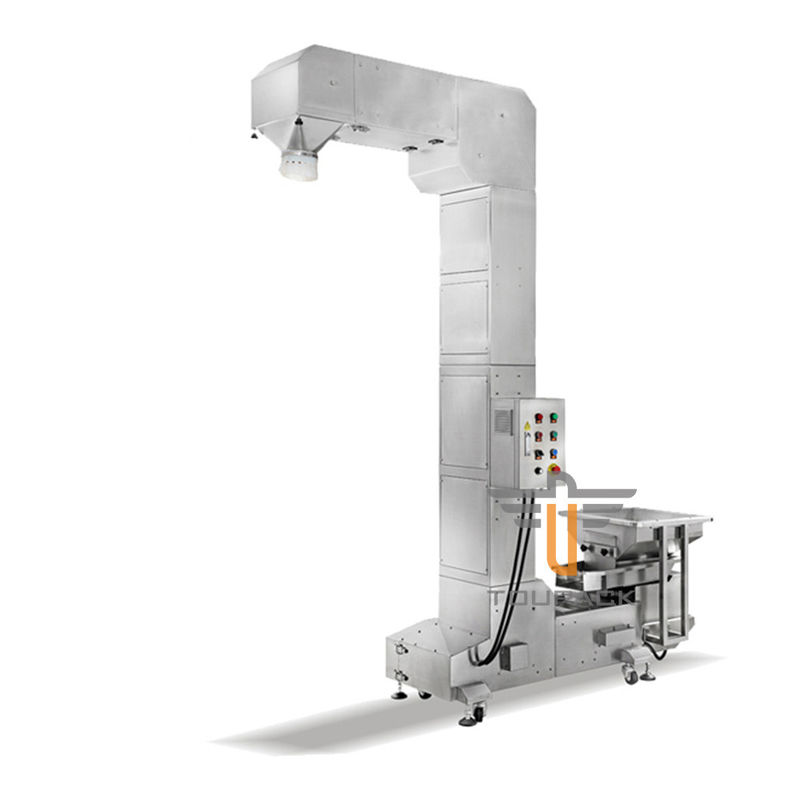

Z Type Bucket Elevator Conveyor For Snack Food
Application:

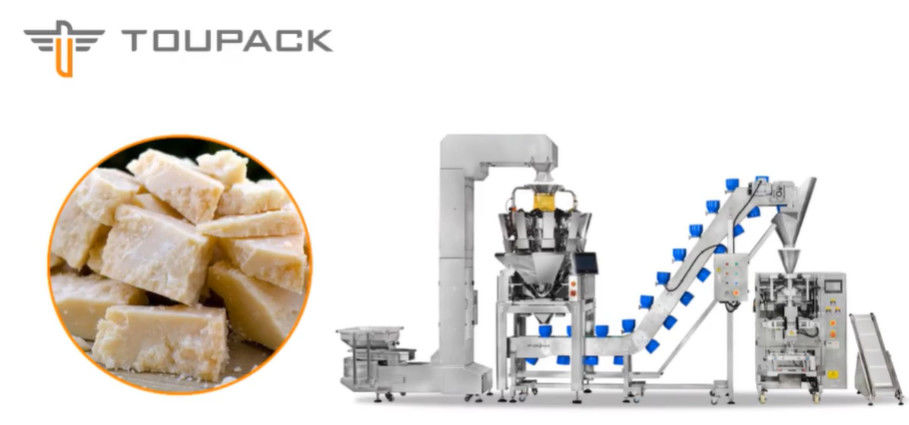

The equipment is widely used in where multi-point feeding and discharging is needed. Usually it works together with weighing & packaging machines and color selecting machines on automatic production line. The products elevated vary from pet food, puffed food, fodder, candies, dried fruit, health food, grains, chemicals, hardware, etc.
Main Function & Features:
1. The bucket is made of food grade PP material with good looking, free of deformation as well as of low and high temperature resistance.
2. Compact structure design for space saving the Lifting height and machine size can be customized.
3. Fully enclosed structure leaves the machine no chance for leakage or pollution. Low rate of material damage. Ideal for non-sticky product conveying.
4. Adjustable conveying speed and easy maintenance, disassembly and cleaning.
Technical Parameters:
| Contents | Specifications |
| Body Material | carbon steel / SUS304 |
| Hopper Volume | 1.0L / 1.8L / 3.6L |
| Hopper Surface | dimple / plain |
| Power Supply | single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW |
| Conveying Capacity | 2.5m³/h / 4m³/h / 8m³/h |
| Machine Dimension(mm) | per customer’s requirement |
| Vibrating Feeder | detached / independent vibrating feeder |
| Feeder Volume | 70L / 100L / 150L / 200L |
| Discharge Funnel | single / double / multiple |
Customer-made Case:
