Name: 400mm Length 120Bottles/Min Automated Sortation Systems For Vitamin Bottle
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TYA-CW90
Price: 18,500.00 USD
Availability: InStock

Home > products > Weight Sorting Machine >

400mm Length 120Bottles/Min Automated Sortation Systems For Vitamin Bottle

400mm Length automated sortation systems

120Bottles/Min automated sortation systems

120Bottles/Min high speed sorter

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

Model Number:

TYA-CW90

Request A Quote

400mm Length 120Bottles/Min Automated Sortation Systems For Vitamin Bottle

Product Details

Material:

SUS304 Steel

Control Panel:

10.1 Inch Touch Screen

HS Code:

84233020

Max Speed:

120 Bottles Per Min

Control System:

High Speed A/D

Accuracy:

±0.5g

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotaible

Packaging Details

wooden case

Delivery Time

15-30 working dayas

Payment Terms

L/C, T/T

Supply Ability

50 Sets/Month

High Precision 1.5KW Egg Yolk Weight Sorting Machine For Food Industry

Get Best Price

video

30Times/Min OD 350mm Weight Sorter Machine , Automated Sorting System

Get Best Price

video

High Speed 160Times/Min 1,000g Weight Sorting Machine For Seafood

Get Best Price

video

High Accuracy Australian Lobster Weight Sorting Machine 2 Level 6 Level Grading Machine

Get Best Price

Contact Now

Product Description

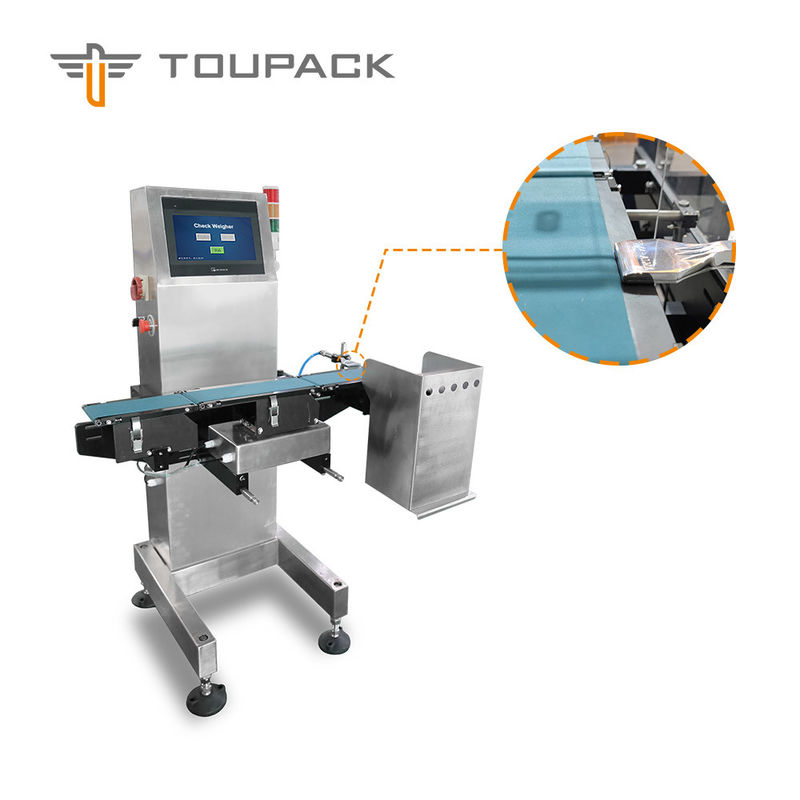

Vitamin Bottle Or Any Other Finished Products Check Weigher

Application:

It is suitable for sorting finished product such as candy bag , bottle, food box.

Features :
1. High accuracy and tailored load cell.
2. Intelligent multi-sampling stable mode, higher accuracy.
3. Intelligent alarm diagnosis.
4. Automatic zero tracking.
5. Modular and CAN bus technology, more efficient and stable
6. Modbus Industry communication protocol

7.VFD adopted to adjust speed continuosly with large regulating range.

Specifications:

Model	TYA-CW90	TYA-CW120	TYA-CW220
Weighing Range	200g	200g	1000g
Weighing Accuracy	±0.05g~±0.15g	±0.2g	±0.5g
Weighing Resolution	0.02g	0.1g	0.1g
Max Speed	200 WPM	150 WPM	120 WPM
Belt Width	95mm	120mm	220mm
Weighing Belt Length	200mm	200mm	400mm
Infeed/Outfeed Belt Lenght	300mm	200mm/380mm	400mm/380mm
Power Supply	AC220V ±10%/1P/0.1KW	AC220V ±10%/1P/0.2KW	AC220V ±10%/1P/0.2KW
Control System	High speed A/D sampling controller	High speed A/D sampling controller	High speed A/D sampling controller
Pre-set Prod. No.	99	99	99
Belt Height	800±50mm	750±50mm	750±50mm
Optional Rejector	Air blower	Air blower	Air Blower/ Swing Arm/ Pusher
