Name: Stainless Steel 4m³/H 3L Z TypeInclined Bucket Elevator For Food
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: Bowl-Type Elevator
Price: 16,500.00 USD
Availability: InStock

Home > Products > Snack Food Packaging Machine >

Stainless Steel 4m³/H 3L Z TypeInclined Bucket Elevator For Food

3L Inclined Bucket Elevator

4m³/h Inclined Bucket Elevator

3L vertical bucket conveyor

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Model Number:

Bowl-Type Elevator

Request A Quote

Stainless Steel 4m³/H 3L Z TypeInclined Bucket Elevator For Food

Product Details

Body Material:

SUS304

Bowl Volume:

0.8L / 1.4L / 3L

Conveying Capacity:

1.5m³/h / 2.5m³/h / 4m³/h

Conveying Belt Width(mm):

Per Customer's Requirement

Power Supply:

Single / 3 Phase 220V/380V 50HZ/60HZ, 1.1KW

Applicable:

Secondary Lifting Solution

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

wooden case

Delivery Time

10-25 working days

Payment Terms

L/C, D/P, T/T

Supply Ability

30 set per month

Automatic Weighing Filling Dried Blueberry Strawberry Frozen Fruits Vertical Packaging Machine

Get Best Price

video

High Quality Weighing Vertical Filling Packaging Dried Dates Dried Banana Apple Slices Dried Mango Dried Fruits Packing Machine

Get Best Price

video

Automatic VFFS Vertical Freeze Fruits Berry Frozen Sliced Strawberry Packaging Machine

Get Best Price

video

SS304 Automatic Rotary Vacuum Filling And Packing Machine Feeding Packing Equipment

Get Best Price

Contact Now

Product Description

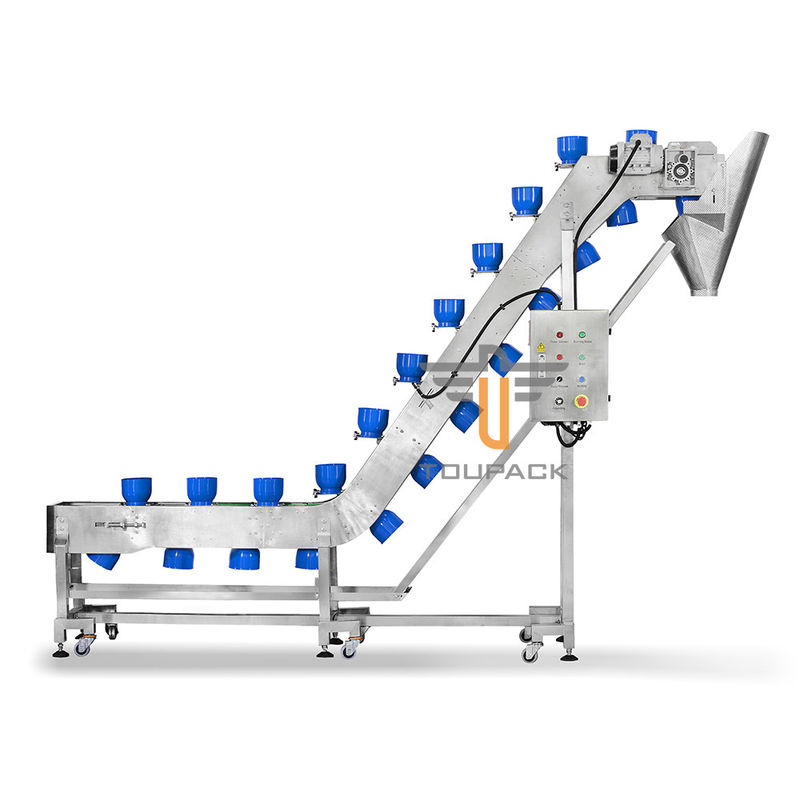

Stainless Steel 4m³/H 3L Z Type Inclined Bucket Elevator For Food

Product Specifications

Body Material	SUS304
Bowl Volume	0.8L / 1.4L / 3L
Conveying Capacity	1.5m³/h / 2.5m³/h / 4m³/h
Conveying Belt Width	Per customer's requirement
Power Supply	Single / 3 phase 220V/380V 50HZ/60HZ, 1.1KW
Application	Secondary lifting solution

Product Overview

Factory price Z structure stainless steel transporter bowl inclined food feeding conveyor designed for efficient material handling in food processing applications.

Applications

Ideal for lift-conveying of solid, granular, and small-sized products. Particularly suitable for secondary lifting solutions where field space is limited.

Key Features

Operates in continuous or intermittent conveyance modes and integrates with other feeding equipment
Food-grade PP material bowls that can be quickly removed for cleaning
Adjustable conveying speed and timing for secondary feeding operations
Maintains level product containment even in inclined positions

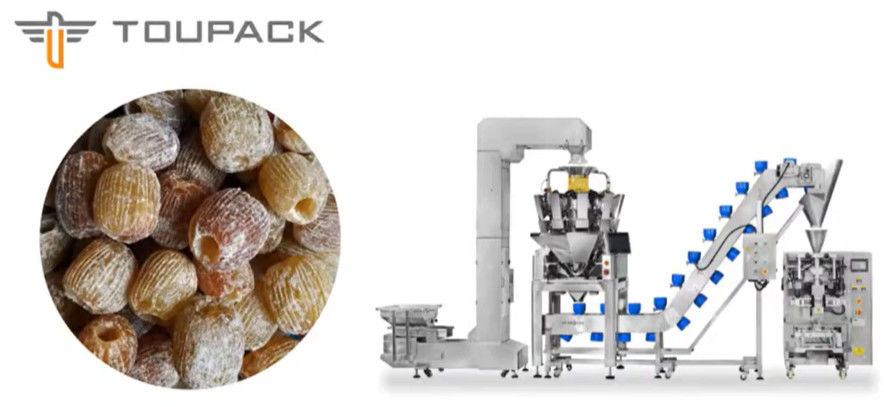

Compatible with rotary packaging machines for mixed solid & liquid product packaging

Technical Parameters

Body Material	SUS304
Bowl Volume	0.8L / 1.4L / 3L
Power Supply	Single / 3 phase 220V/380V 50HZ/60HZ, 0.75KW
Conveying Capacity	1.5m³/h / 2.5m³/h / 4m³/h
Machine Dimension	1,450mm or per customer's requirement
