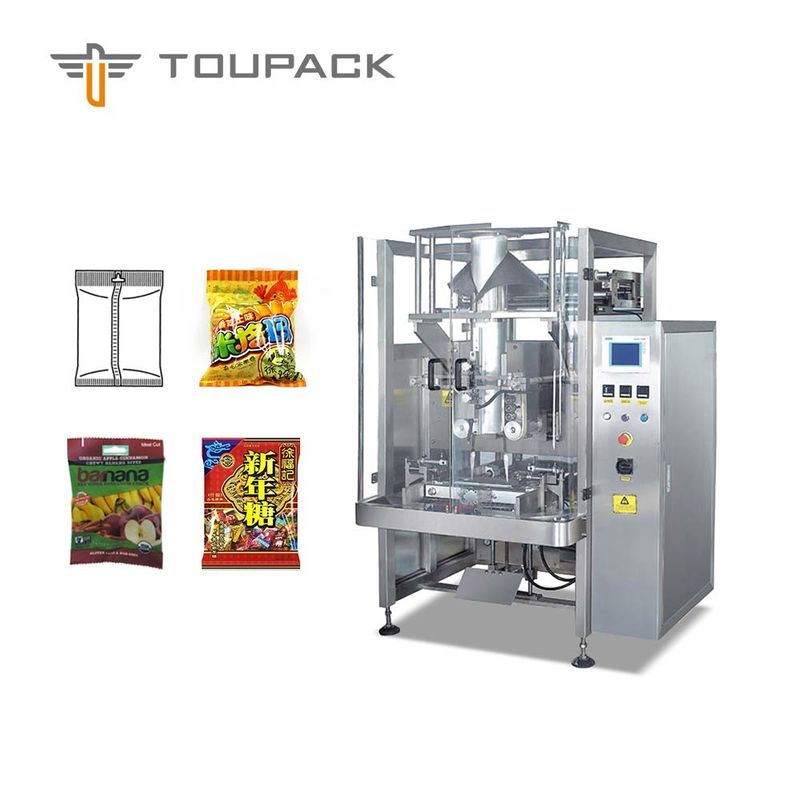

VFFS 320/420 Cashew Vertical Form Fill Seal Packaging Machine

VFFS 320/420 Cashew Vertical Form Fill Seal Packaging Machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-1A-YZ-M1008-101 TY-1A-YZ-M1016-101

Contact Us
Request A Quote
Product Details
Product Name:
Snake Food Packing Machine
Body Frame:
SUS304
Packaging Type:
Stand-up Pouch, Bags, Film, Foil, Pouch
Core Components:
PLC, Motor, Pressure Vessel, Pump
Vacuum Source:
120 L/min, 0.06-0.1 Mpa
Capacity:
100 Bags/min
Bags Size:
W:60~130 Mm L:55-180 Mm
Item Name:
Vacuum Packing Machine
Bag Sealing Method:
Cool Water And Transient Heating
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Pollywood case
Delivery Time
3 -20 days after payment arranged
Payment Terms
L/C, D/P, T/T
Supply Ability
100set/month
Product Description

Automatic Vertical Form Fill Seal Packaging Machine VFFS320/ 420 for Corn, Snacks, Cashew





Main Function and Features:



1. Imported PLC control system with human-machine interface and easy operating visual touch screen.

2. Servo film running system, pneumatic horizontal sealing control, precise positioning, excellent machine performance and nice packaging.

3. Perfect automatic alarm and protection function to minimize the loss.

4. Full packaging process of measuring, feeding, filling, bag forming and date printing in one automatic operation by the machine equipped with measurement device.

5. Bag type: pillow bag, gusset bag and hole-punching bag.

6. Maximize the reliability and intelligence of the whole machine.





Specifications:



Model 320 VFFS 420 VFFS
Packing Speed 10-80 bpm 10-70 bpm
Bag Size 50-200(L)*60-150(W)mm 60-300(L)*60-200(W)mm
Bag Type pillow bag, gusset bag, hole punching bag, vacuum bag
Film Width 140-320mm 140-420mm
Film Thickness 0.04-0.09mm 0.04-0.09mm
Film Material BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE
Pulling Belt Type single / dual belt single / dual belt
Air Consumption 0.8Mps 0.25m³/min 0.8Mps 0.5m³/min
Power Supply single phase 220V 50HZ/60HZ, 2.2KW single phase 220V 50HZ/60HZ, 2.2KW
Machine Dimension 1,115(L)*800(W)*1,370(H)mm 1,530(L)*970(W)*1,600(H)mm
Machine Weight 300kg 450kg
