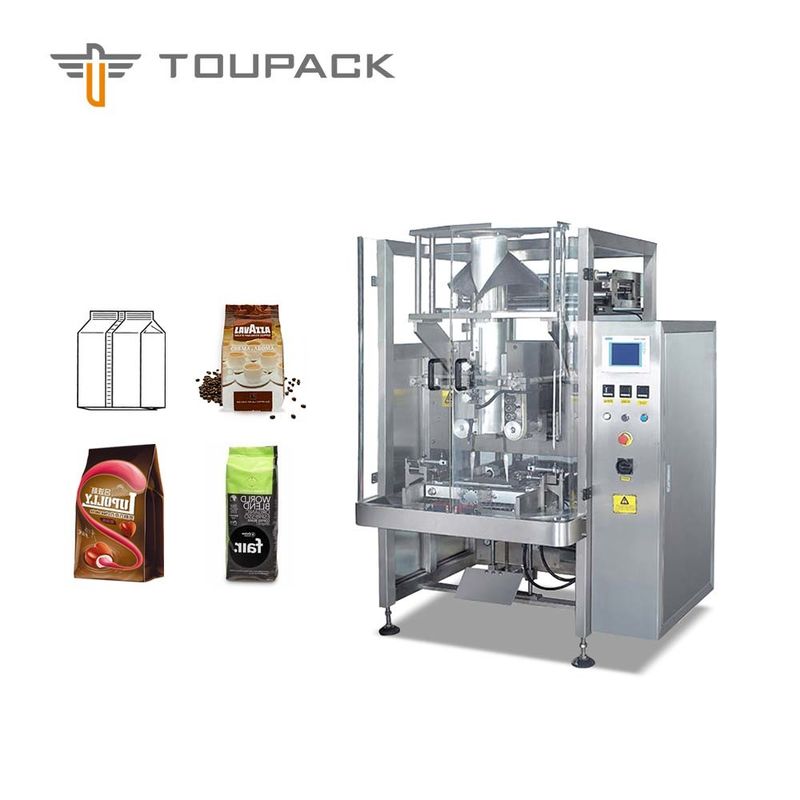

320/420 Automatic VFFS Vertical Form Fill Seal Packaging Machine For Powder Coffee Bean

320/420 Automatic VFFS Vertical Form Fill Seal Packaging Machine For Powder Coffee Bean

Powder Coffee Bean Packaging Machine

Automatic VFFS Packaging Machine

320 Coffee Bean Packaging Machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-1A-YZ-M1008-101 TY-1A-YZ-M1016-101

Contact Us
Request A Quote
Product Details
Product Name:
Snake Food Packing Machine
Body Frame:
SUS304
Packaging Type:
Stand-up Pouch, Bags, Film, Foil, Pouch
Core Components:
PLC, Motor, Pressure Vessel, Pump
Vacuum Source:
120 L/min, 0.06-0.1 Mpa
Capacity:
100 Bags/min
Bags Size:
W:60~130 Mm L:55-180 Mm
Item Name:
Vacuum Packing Machine
Bag Sealing Method:
Cool Water And Transient Heating
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Pollywood case
Delivery Time
3 -20 days after payment arranged
Payment Terms
L/C, D/P, T/T
Supply Ability
100set/month
Product Description
320/420 Automatic VFFS Vertical Form Fill Seal Packaging Machine For Powder Coffee Bean
Product Specifications
Attribute Value
Product name Snake Food Packing Machine
Body frame SUS304
Packaging Type Stand-up Pouch, Bags, Film, Foil, Pouch
Core Components PLC, Motor, Pressure vessel, Pump
Vacuum source 120 L/min, 0.06-0.1 Mpa
Capacity 100 bags/min
Bags size W:60~130 mm L:55-180 mm
Item name Vacuum Packing Machine
Bag sealing method Cool water and transient heating
Warranty 1 Year
Key Features
  • Imported PLC control system with human-machine interface and easy operating visual touch screen
  • Servo film running system with pneumatic horizontal sealing control for precise positioning
  • Automatic alarm and protection functions to minimize operational losses
  • Complete packaging process including measuring, feeding, filling, bag forming and date printing
  • Multiple bag type options: pillow bag, gusset bag and hole-punching bag
  • High reliability and intelligent operation
Applications

Ideal for dosing and packaging fluidic or low fluidity materials including:

  • Food products: milk powder, coffee powder, rice powder, solid drinks, condiments, sugars
  • Industrial materials: food additives, pharmaceuticals, fodder, detergent powder, agricultural pesticides
Technical Specifications
Model 320 VFFS 420 VFFS
Packing Speed 10-80 bpm 10-70 bpm
Bag Size 50-200(L)*60-150(W)mm 60-300(L)*60-200(W)mm
Bag Type pillow bag, gusset bag, hole punching bag, vacuum bag
Film Width 140-320mm 140-420mm
Film Thickness 0.04-0.09mm
Film Material BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE
Pulling Belt Type single / dual belt single / dual belt
Air Consumption 0.8Mps 0.25m³/min 0.8Mps 0.5m³/min
Power Supply single phase 220V 50HZ/60HZ, 2.2KW
Machine Dimension 1,115(L)*800(W)*1,370(H)mm 1,530(L)*970(W)*1,600(H)mm
Machine Weight 300kg 450kg
