Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Model Number:
TY-HPM250

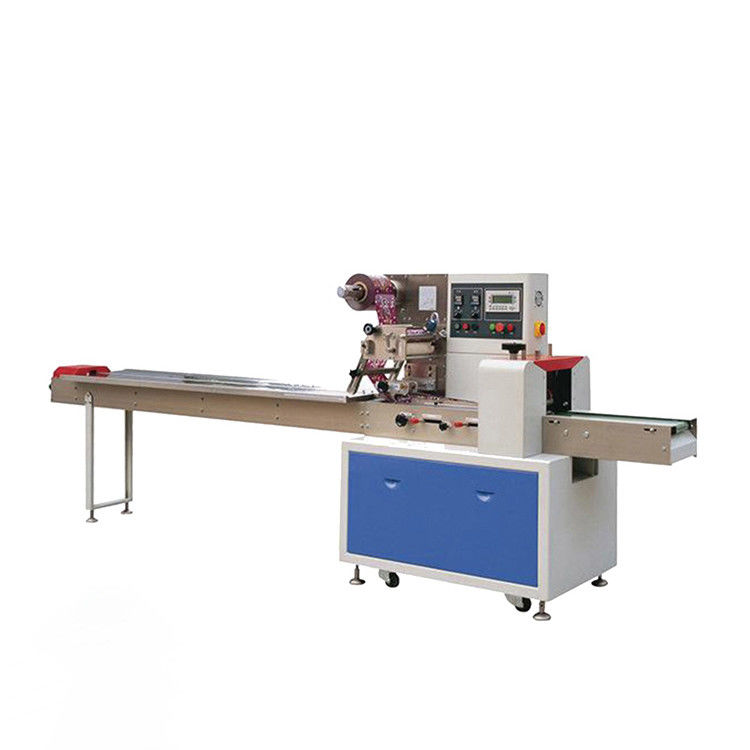

Horizontal Pillow Bag Automatic Flow Wrap Packing Machine
Features:
1. Double transducer control with flexible bag length cutting. No need to adjust unloading operation. Humanized operation with automatic prompt, saving time and film.
2. Imported MCU on main control circuit, HMI, frequency control, easy and quick parameter setting, Centralized and intuitive operation to fully realize humanized automatic operation control;
3. Clear display of self-diagnosis function.
4. Dual frequency conversion control over packaging speed and bagging length. Digital input of sealing and cutting position to make the sealing & cutting more accurate, nice-looking and stable.
5. High photoelectric eye to track automatically and accurately.
6. Positioned stop function without sticking to the knife or wasting film.
7. Independent temperature control for each seal. PID control suitable for various packing materials.
Specifications:
| Model | TY-HPM250 |
| Max. Film Width | 400mm |
| Bag Length | 150-400mm |
| Bag Width | 50-180mm |
| Max. Product Height | 65mm |
| Max. Roll Film Diameter | 320mm |
| Packing Material | OPP/CPP, OPP/PE, PET/PE |
| Packing Speed | 30-150 bpm |
| Machine Size | 4,030(L)*770(W)*1,450(H)mm |
| Machine Weight | 550kg |
| Power Supply | 220V 50HZ/60HZ |
