TOUPACK 16 Head 30WPM FFruit And Vegetable Packaging Machine

TOUPACK 16 Head 30WPM FFruit And Vegetable Packaging Machine

TOUPACK Fruit And Vegetable Packaging Machine

30WPM Fruit And Vegetable Packaging Machine

30WPM Multihead Combination Weigher

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-1A-ZH-M2008-101; TY-1A-P2008-101

Contact Us
Request A Quote
Product Details
Material:
Stainless Steel 304
Max. Speed:
10~30 WPM
Accuracy:
0.1g
HMI:
7'' Color Touch Screen
Control System:
MCU / PLC
Power Supply:
AC220V ±10% 50HZ/60HZ, 2KW
After Warranty Service:
Video Technical Support, Online Support
Driven Type:
Electric
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Pollywood case
Delivery Time
3 -20 days after payment arranged
Payment Terms
L/C, D/P, T/T
Supply Ability
100set/month
Product Description

High Precision 14 Heads Multi-Head Combination Weigher For Fruit Vegetable Salad





Application:


Suitable for fruits vegetable salad, sheet material and abnormity material such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, currant, almond, chocolate, filbert, compact foodstuff, dilatant food stuff, hardware and plastic can be weighed by the ration.



Technical Features:


1. Select the best combination immediately from diversified weight combinations through computer with perfect combination of high precision and high speed.
2. High precision data-type weighing sensor realizes precise weighing.
3. Liquid crystal screen operating system in multiple languages as Chinese an English. Etc.
4. IP65 degree water-proof and dust-proof design. It is clean and sanitary with all stainless steel parts. Full sealed design prevents accumulation of material and facilitates cleanng.
5. It can be fine the opening ad closing speed of hopper door according to the features of items to be weighed, and prevent crushing and blocking of material.
6. With powerful digital automatic counting function, it can record the index for each batch of product such as total bag number, pass rate, an difference of single bag, etc.
7. Optional devices: Triglyph balance ball, suction hopper, printing device, tolerance sorting device.





Specifications:



Model TY-A-M14-3;TY-A-P14-3
Max. Weighing (one hopper) 100-5000g
Accuracy x (0.5)
Min. Scale Interval 0.1g
Max. Speed 60 WPM
Hopper Volume 5.0L
Control System MCU / PLC
HMI 7’’ / 10’’ color touch screen
Power Supply AC220V/110V ±10% 50HZ/60HZ, 2KW
Packing Dimension

Machine: 1,530(L)*1,530(W)*1,658(H)mm

Spare parts: 1,480(L)*1,100(W)*1,238(H)mm

Package weight

Machine: 600kg

Spare parts: 330kg

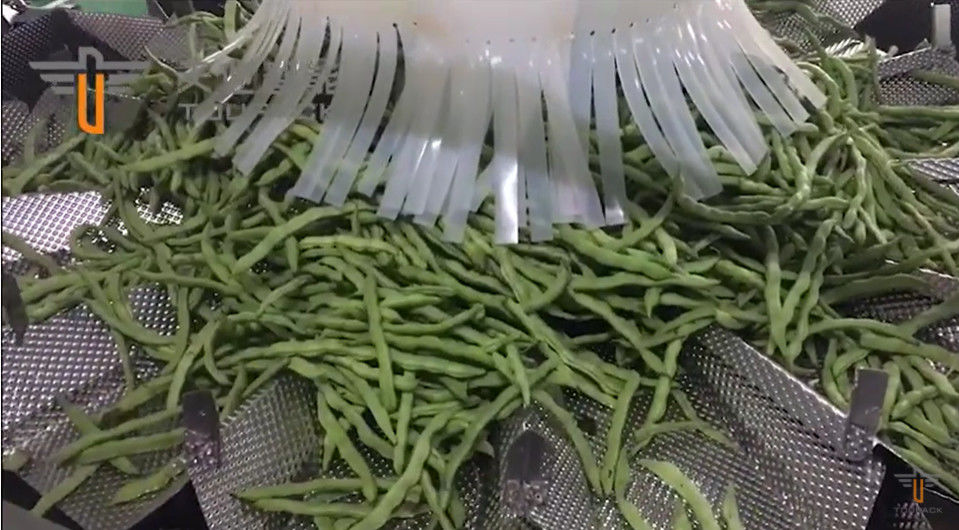

TOUPACK 16 Head 30WPM FFruit And Vegetable Packaging Machine 0







2. Functional:



(1). Select the best combination immediately from diversified weight combination through computer with perfect combination of high precision and high speed.

(2). Special revolving vibration is better for scattering material.

(3). High precision data-type weighing sensor realizes precise weighing.

(4). It can be finely regulated the opening & closing speed of hopper door according to the features of items to be weighed, and prevent crushing and blocking of material.

(5). Dimple stainless panel can help to convey and avoid damaging the product.

(6). IP65 grade water-proof &dust-proof design. It's clear and sanitary with all stainless still parts.

(7). Displaying every vibration for working performance monitor.

(8). Presetting 99 sets of parameter for programming.

(9). Multilanguage to choose: Chinese, English, Spanish, Korea, German, French and Arabic etc.
