Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Model Number:
Vibrating Feeder

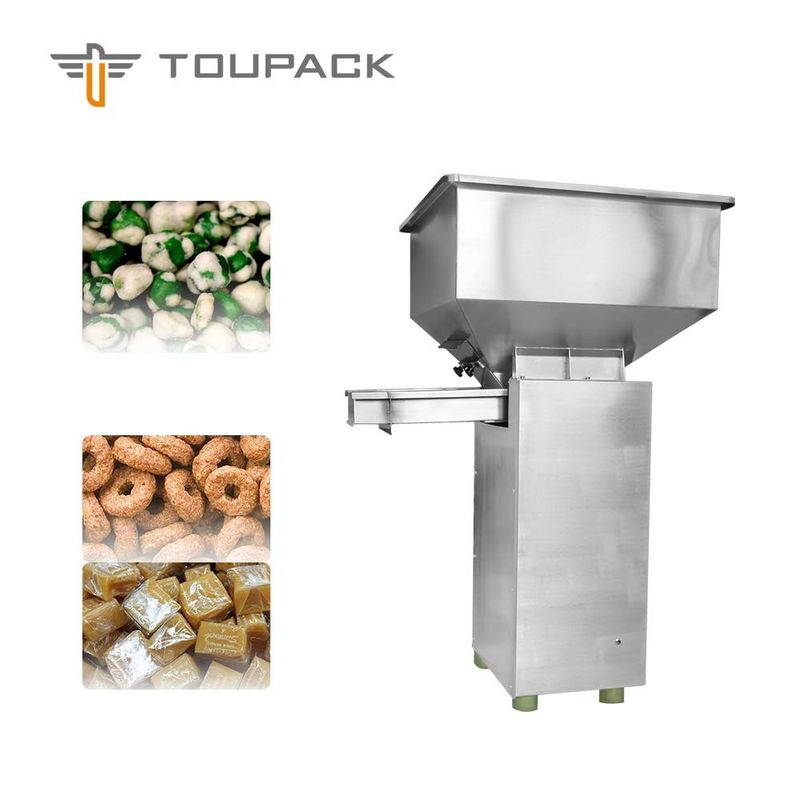

Stainless Steel SUS304 Vibrating Feeder 150L/200L For Snack Food
Stainless Steel Vibrating Feeder For Food Conveyor, Fast Rewinding Feeder
Application:
Mainly applicable in temporary storage and transportation to conveying equipment for granular products such as puffed food, grain, plastic pellets, dried fruit, etc.
Functions:
Vibratory feeder is for temporary storage and transferring dry, free-flowing food and non-food products to bucket elevator .their highly sanitary design with fully stainless steel structure make sure the machine fit the most demanding applications The durability ,ease of cleaning and backup- free which are good choice for food industries.
Technical Parameters:
| Contents | Specifications | |
| Machine | Independent vibrating feeder | Fast rewinding feeder |
| Body Material | SUS304 | |
| Frame Material | carbon steel with powder coating | |
| Vibrating Pan Length | 826mm | 2,667mm |
| Exit Height | 530mm / 550mm or per requirement | |
| Silo Volume | 150L/200L | N/A |
| Max. Capacity | 8m³/h | 8m³/h |
| Power Supply | single phase 220V 50HZ/60HZ | |
| Power Consumption | 0.75KW | 1.5KW |
| Total Height (mm) | custom-made per requirement | |
T
