Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Model Number:
TYA-MDP75

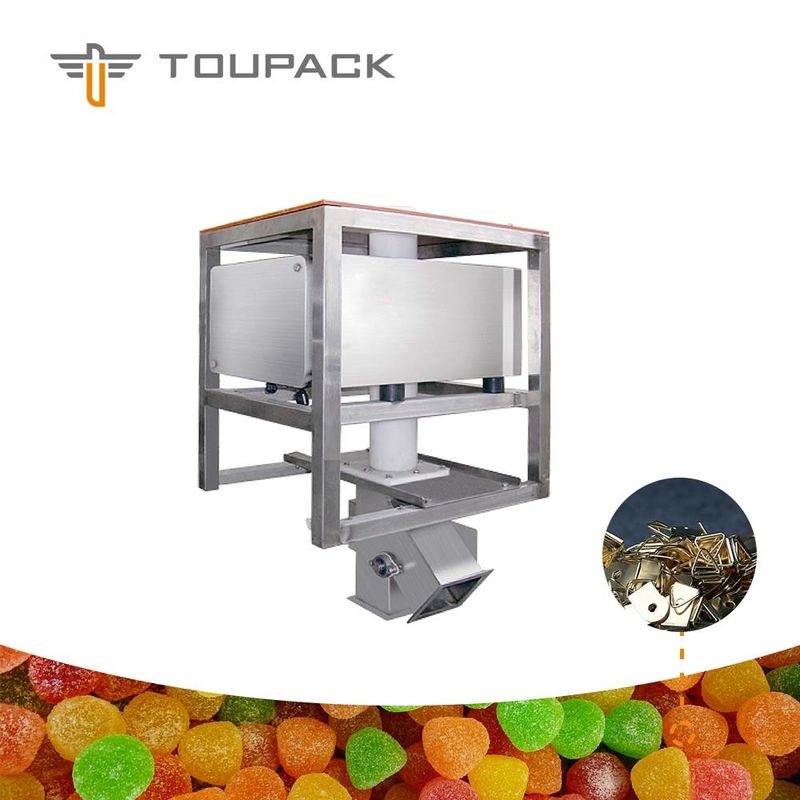

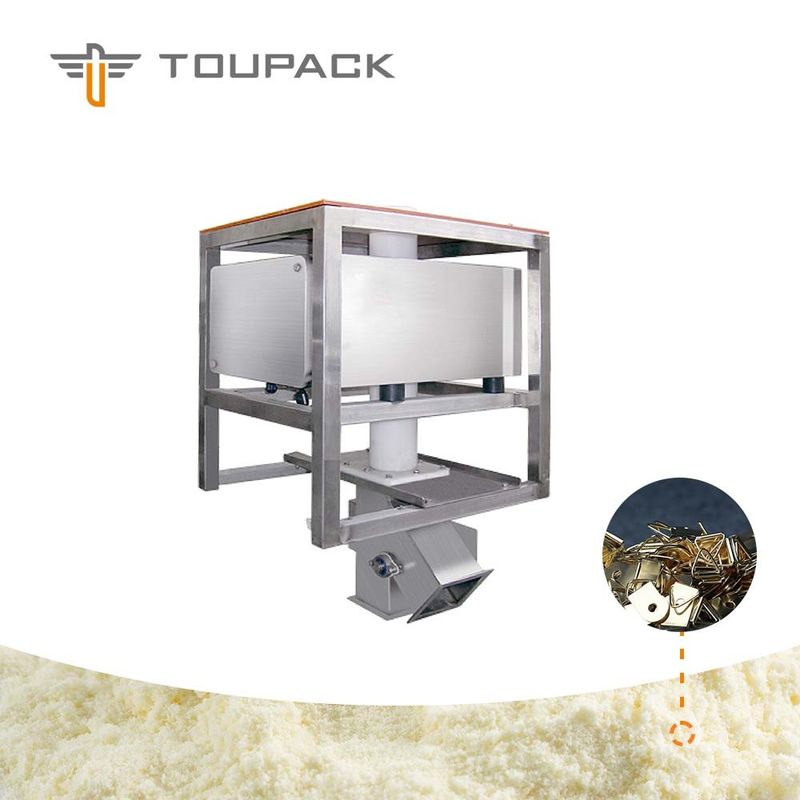

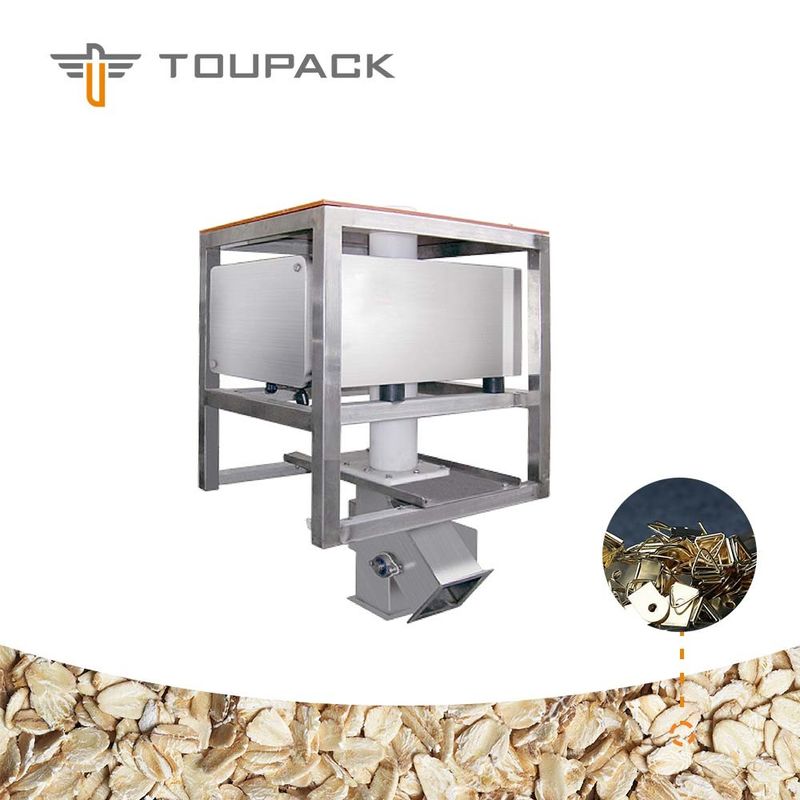

Gravity Free Fall Metal Detector For Powder / Granular Product Inspection
Application:
Suitable for metal contaminants detection in powder industries like: rice, grain, sugar powder, chemical powder, powder additives, plastic chips etc.
Main Function & Features:
1. Vertical free fall pipe design for dry powder product inspection.
2. Phase discriminating technology that can efectively refrain product effect;
3. Advanced DSP technology and leading intelligent algorithm improve the detection sensitivity.
4. Auto balance technology improve the working stability of machine.
5. Be able to detect out metals like iron, stainless steel, copper, gold, silver and aluminum, etc.
6. LCD display, Chinese&English operation menu;
7, 4 level Password setting.
8. Automatically rapid rejecting mechanism, to reduce the waste of the materials
9. Simple conveyor structure, easy install and clearn;
10. Made of stainless steel, fairly good dustproof, waterproof ability.
Specifications:
Model | TYA-MDP75 | TYA-MDP100 | TYA-MDP150 |
Detecting Tube Size | 75mm | 100mm | 150mm |
Detecting Sensitivity |
0.5mm (Fe) 1.2mm (SUS) |
0.7mm (Fe) 1.5mm (SUS) |
0.8mm(Fe) 1.5mm(SUS) |
Detecting Capacity | 3 ton/h | 5 ton/h | 10 ton/h |
Body Material | SUS304 | ||
Power Supply | AC 220V 50HZ | ||
Air Pressure | 0.5MPA |
