PLC Control 100bags/Min Snack Food Packaging Machine , Popcorn Packaging Machine

PLC Control 100bags/Min Snack Food Packaging Machine , Popcorn Packaging Machine

PLC control Snack Food Packaging Machine

100bags/min Snack Food Packaging Machine

100bags/min popcorn packaging machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-1A-YZ-M1008-101 TY-1A-YZ-M1016-101

Contact Us
Request A Quote
Product Details
Product Name:
Snake Food Packing Machine
Body Frame:
SUS304
Packaging Type:
Stand-up Pouch, Bags, Film, Foil, Pouch
Core Components:
PLC, Motor, Pressure Vessel, Pump
Vacuum Source:
120 L/min, 0.06-0.1 Mpa
Capacity:
100 Bags/min
Bags Size:
W:60~130 Mm L:55-180 Mm
Item Name:
Vacuum Packing Machine
Bag Sealing Method:
Cool Water And Transient Heating
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Pollywood case
Delivery Time
3 -20 days after payment arranged
Payment Terms
L/C, D/P, T/T
Supply Ability
100set/month
Product Description

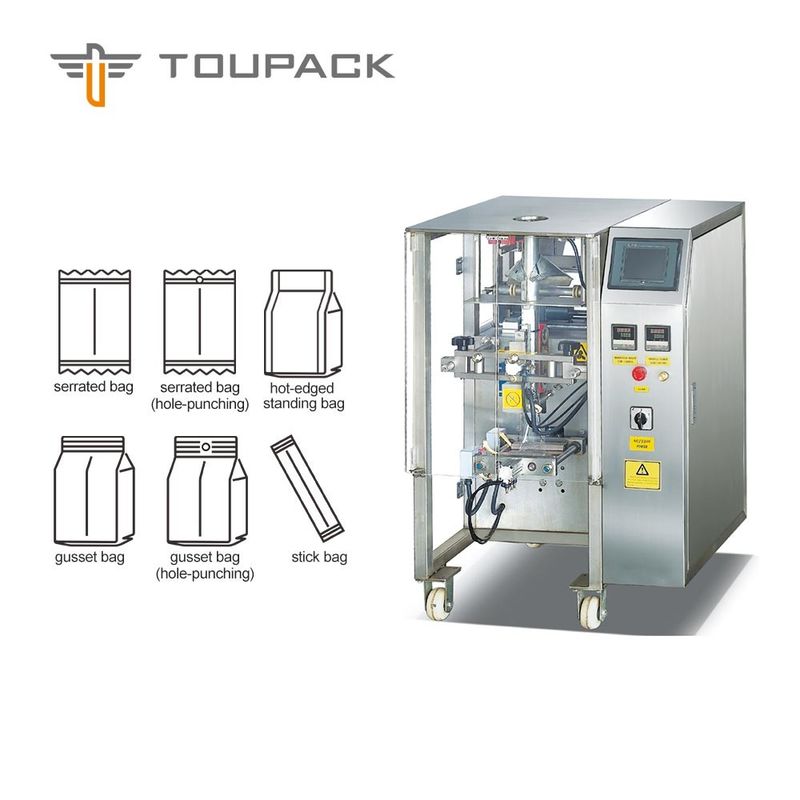

Automatic Vertical Form Fill Seal Packaging Machine VFFS320/ 420 for Corn, Snacks, Cashew





Main Function and Features:



1. Imported PLC control system with human-machine interface and easy operating visual touch screen.

2. Servo film running system, pneumatic horizontal sealing control, precise positioning, excellent machine performance and nice packaging.

3. Perfect automatic alarm and protection function to minimize the loss.

4. Full packaging process of measuring, feeding, filling, bag forming and date printing in one automatic operation by the machine equipped with measurement device.

5. Bag type: pillow bag, gusset bag and hole-punching bag.

6. Maximize the reliability and intelligence of the whole machine.





packing machine:



1.The machine is our company introduction of foreign advanced technology, and is improved and the production of a kind of high quality, high performance automatic packaging machine, complete automatic feeding,measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions. 2.The machine adopts high precision servo film transport system, PLC program control,developed touchable human-machine interface of advanced automatic positioning,photoelectric tracking, digital temperature control, etc. 3. Operation is more simple, perfect. It is the first choice of food packaging industry to improve the production efficiency, reduce labor intensity, improve the grade of packaging equipment. 4. Packaging material can be PE/polyethylene,PE/aluminum plating, pet/PE, pp, and other heat sealing packaging materials, etc





Specifications:



Model 320 VFFS 420 VFFS
Packing Speed 10-80 bpm 10-70 bpm
Bag Size 50-200(L)*60-150(W)mm 60-300(L)*60-200(W)mm
Bag Type pillow bag, gusset bag, hole punching bag, vacuum bag
Film Width 140-320mm 140-420mm
Film Thickness 0.04-0.09mm 0.04-0.09mm
Film Material BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE
Pulling Belt Type single / dual belt single / dual belt
Air Consumption 0.8Mps 0.25m³/min 0.8Mps 0.5m³/min
Power Supply single phase 220V 50HZ/60HZ, 2.2KW single phase 220V 50HZ/60HZ, 2.2KW
Machine Dimension 1,115(L)*800(W)*1,370(H)mm 1,530(L)*970(W)*1,600(H)mm
Machine Weight 300kg 450kg







































Details:



PLC Control 100bags/Min Snack Food Packaging Machine , Popcorn Packaging Machine 0

PLC Control 100bags/Min Snack Food Packaging Machine , Popcorn Packaging Machine 1

PLC Control 100bags/Min Snack Food Packaging Machine , Popcorn Packaging Machine 2
