Place of Origin:
Zhongshan, Guangdong China
Brand Name:
TOUPACK
Certification:
CE, ISO
Model Number:
TY-A-VFFS320, TY-A-VFFS420

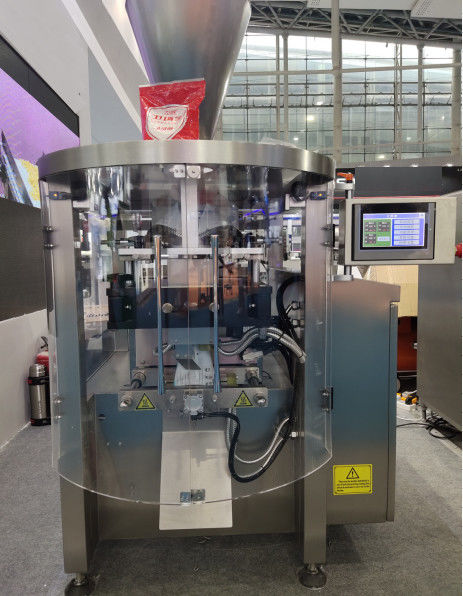

20-120bags/min VFFS Vertical Packaging Machine Vertical Packaging Machine Forming Filling Sealing for Sugar, Tea, Powder
Application:
Full Auto packaging machine for granular product, slice product, block product, powder product, and liquid.
For example, sugar, tea, powder, bean, tomato cherry, carrot chips, and so on...
Bag Type:
The machine can make pillow bag, guesset bag, and hole-punching bag...according to customer’s requirements.
Main Function:
| 1. | Imported PLC control system; Easily-operated HMI; Visual touch screen |

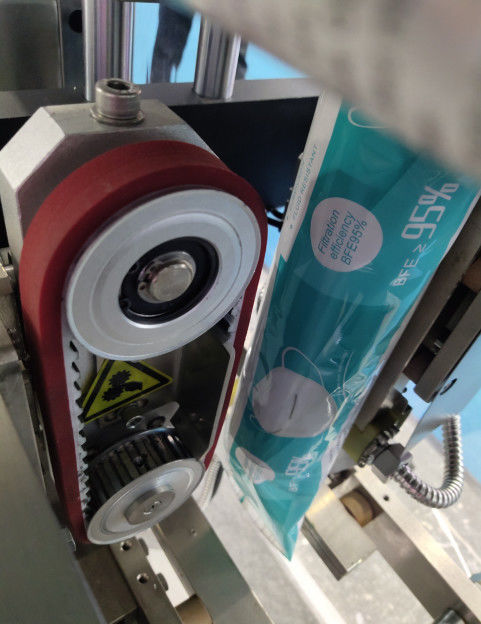

| 2. | Servo film running system controls film drawing down system Peumatic horizontal sealing control; Accurate positioning |
| 3. | Auto alarming and protection function prevent empty packaging
Various alarm system to reduce waste |

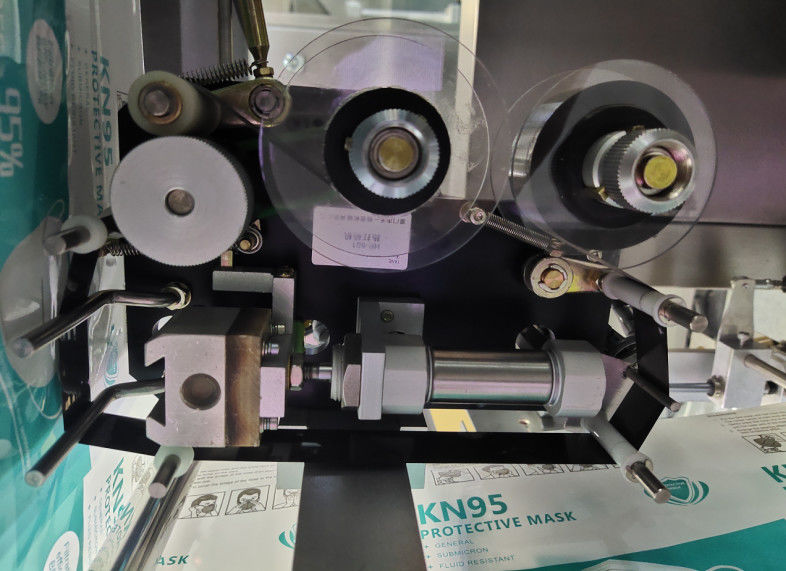

| 4. | Bag forming, filling, sealing, and date printing in one machine which is with measurement device |
| 5. | Maximize the reliability and intelligence of the packing machine |
| 6. | Bag former can be changed if having various needs of product |
Specification:
| Model | TY-A-VFFS320 | TY-A-VFFS420 |
| Packaging Speed | 10-80bpm | 10-70bpm |
| Bag Size | 50-200(L)*60-150(W)mm | 60-300(L)*60-200(W)mm |
| Bag Type | Pillow bag, gusset bag, hole punching bag, vaccum bag | Pillow bag, gusset bag, hole punching bag, vaccum bag |
| Film Width | 140-320mm | 140-420mm |
| Film Thickness | 0.04-0.09mm | 0.04-009mm |
| Film Material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET, PET/PE | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET, PET/PE |
| Pulling Belt Type | Single/ dual belt | Single/ dual belt |
| Air Consumption | 0.8mps 0.25m³/min | 0.8mps 0.5m³/min |
| Power Supply | Single phase 220V 50HZ/60HZ, 2.2KW | Single phase 220V 50HZ/60HZ, 2.2KW |
| Machine Dimension | 1,115(L)*800(W)*1,370(H)mm | 1,530(L)*970(W)*1,600(H)mm |
| Machine Weight | 300KGS | 450KGS |
Other Machines:
The VFFS320/ VFFS420 is available with the following machines.
Weighing machine:
Multihead weigher:
10 heads multihead 0.8L/1.6L/2.5L weigher, 14 heads multihead 0.8L/1.6L/2.5L weigher
(For your reference)
Auger filler:
Supporting plarform:
For your reference, using for supporting multihead weigher.
Conveyor:
Send your inquiry directly to us
