Place of Origin:
China
Brand Name:
TOUPACK
Certification:
CE
Model Number:
TY—VP730VFFS

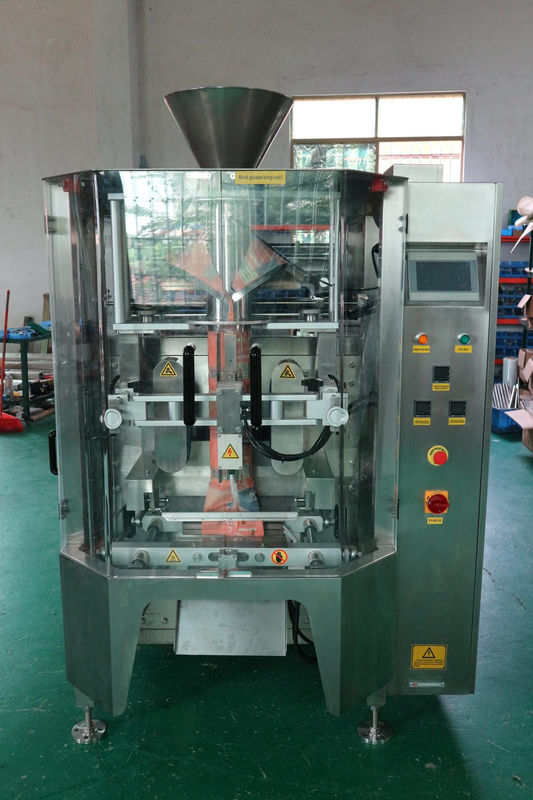

VFFS Vertical Form Fill Seal Packing Machine For Sugar Candy Snack Food
Introduction
* The whole machine has advanced design, reasonable structure and convenient adjustment, operation and maintenance;
* Positioning standard of servo film transport system; Synchronous belt transport film, stable and reliable;
* The automatic correction function saves time and film, and improves the reliability and intelligence of the whole machine
* It has a variety of automatic alarm protection functions to minimize loss;
*The machine is matched with the metering device to automatically complete the whole process of product metering, feeding, filling and bag making, printing date, inflation (exhaust) and finished product output.
* Bag making form: pillow bag, vertical bag and hanging hole belt
* You can choose nitrogen filled packaging, the same as vacuum packaging
| Content | |
| Packing Speed | 5----45 bags/min |
| Bag-making size | (L)80-500mm700mm(W) 150-350mm |
| Measurement range | Max200---5000ML |
| Maximum packaging film width | 730mm |
| film thickness | 0.05-0.15m |
| Gas consumption | 0.8ps 0.6m3/min |
| Power / voltage | 7.5KW 220V 50Hz |
| Packing dimensions | L1850*W1410*H2400mm |
| Net weight | 780KG |
Main machine electric part and spare part
| TY—VP730 Main machine electric part: | |||
|
Name |
Brand |
Producing area |
Remark |
| Touch-sensitive screen | WEINVIEW | Taiwan | |
| Programmer controlled system | Mitsubishi | Japan | |
| Servo motor | Schneider | Germany | |
| Servo driver | Schneider | Germany | |
| Cylinder | AirTAC | Taiwan | |
| Cylinder | AirTAC | Taiwan | |
| Electromagnetic valve | AirTAC | Taiwan | |
| Intermediate relay | KACON | Republic | |
| Photoelectric eye | BEDELI | Taiwan | |
| Power | ZHANGXIN | China | |
| Solid state relay | Schneider | Germany | |
| Thermometer control | YATAI | Shanghai | |
| Cylinder | AirTAC | Taiwan | |
| 1 | Horizontal heater | 2pc |
| 2 | Vertical heater | 1pc |
| 3 | Winding belt | 1pc |
| 4 | High temperature belt | 1pc |
| 5 | T type cutter | 1pc |
| 6 | Thermocouple | 1pc |
| 7 | Printing number Combined with dater printer | 1pc |
| 8 | hexagon ring spanner | 1pc |
| 9 | Open spanner | 1pc |
| 10 | Copper brush | 1pc |
