30-40 bags/min PLC Rotary Packing Machine Multihead Weigher For Dried Fruit Lemond With Premade Pouch
PLC High Speed Rotary Packing Machine Multihead Weigher Packaging System
For Dried Fruits Lemond With Premade Pouch
Included:

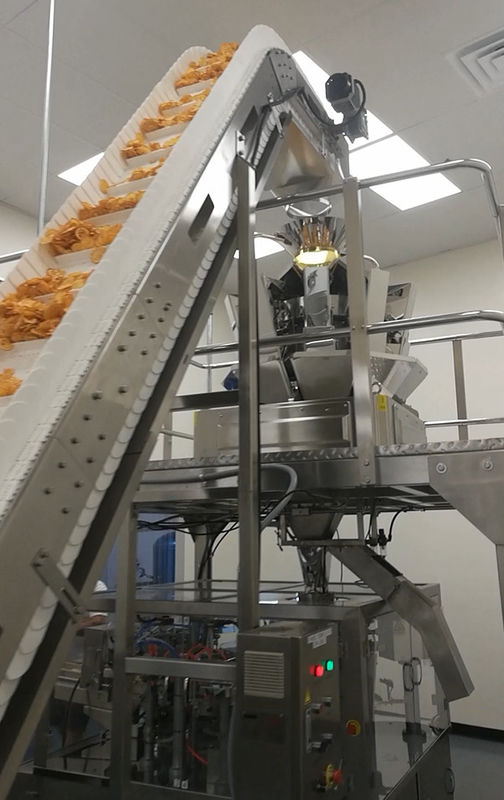

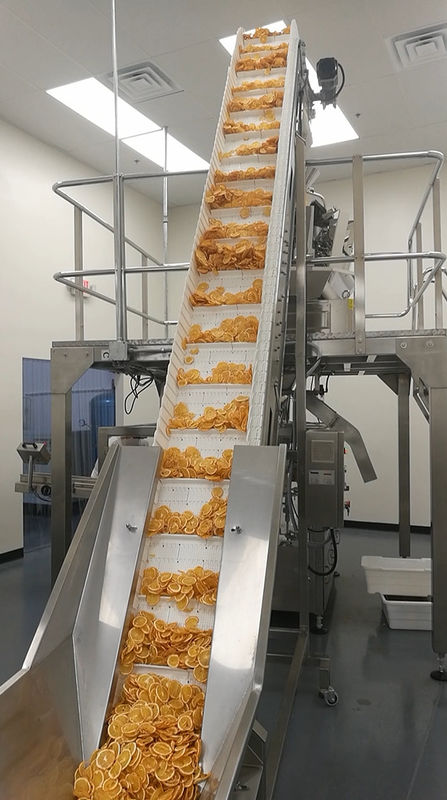

One inclined elevator, one 10-head multihead weigher, one platform, one rotary packaging machine, one conveyor
Applification:
Dried fruits & vegetables, puff product, sliced product, granular product...
For example, nuts, beans, dried lemond, photo chips, salads, raisin, oatmeal, pet food, seeds...
Specification:

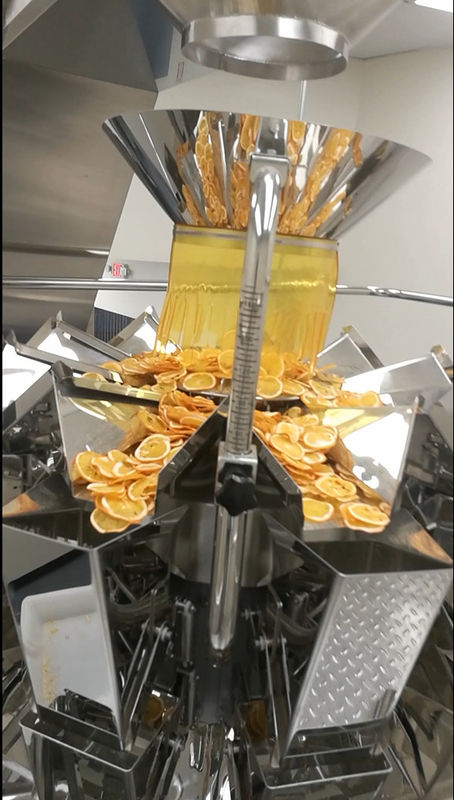

Multihead Weigher:
| Model |
TY-M10L1.6L |
| Max. Weighing Capacity/Hopper |
1,000g |
| Max. Speed |
x0.5 |
| Accuracy |
0.1g |
| Min. Scale Interval |
7 WPM |
| Hopper Volume |
1.6L |
| Control System |
MCU/PLC |

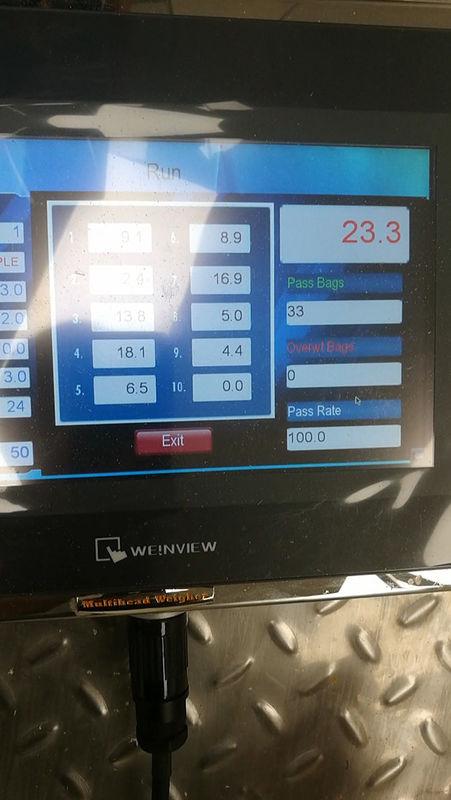

| HMI |
7''/10'' touch screen |
| Power Supply |
AC220V±10% 50HZ/60HZ, 1.5KW |
| Packing Dimension |
1170(L)*1080(W)*1813(H)mm |
| Net Weight |
340KGS |
| Gross Weight |
420KGS |

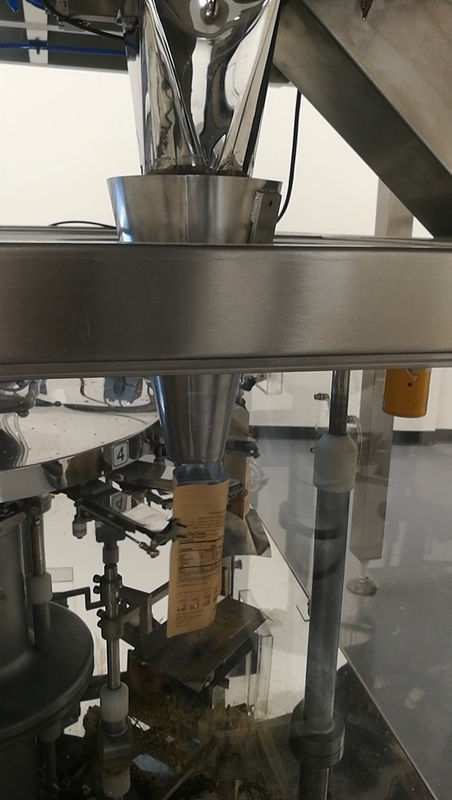

Rotary Packaging Machine:
1. Type: Parts touch the products are 304 stainless steel, columns are carbon steel
2. Run the machine on the 7inch Siemens touch screen
3. Noise from running machine: within 75db(out of the radius of 1m)
4. Compressed air: about 5～8kgf/cm²,0.5m³/min (Customer supply)
5. The required size of pouch: Width: 140-270mm
Length:100-360mm
6. Packaging speed: need sample and bags to confirm 30-40 bags/min
(Note: The speed will vary according to the weigher’s speed, the falling speed, the packaging weight, the packaging precision, the product character, the nitrogen concentration and pouch character etc)
7. Power supply: AC380V, 3- phase 50Hz (Customer supply)
8. Power consumption: 3.2kw
9. Machine net weight: 1850kg
