Home > products > Nuts Packing Machine >
60BPM 10 Head Multihead Weigher For Snack Chips 5L 2.5 L 1.6 L

60BPM 10 Head Multihead Weigher For Snack Chips 5L 2.5 L 1.6 L

60BPM Multihead Weigher

1.6L Multihead Weigher

Snack Chips Multihead Weigher

Place of Origin:

Zhongshan, Guangdong, China

Brand Name:

TOUPACk

Certification:

CE , ISO

Model Number:

10 - head SUS 304 weigher

Contact Us
Request A Quote
60BPM 10 Head Multihead Weigher For Snack Chips 5L 2.5 L 1.6 L 60BPM 10 Head Multihead Weigher For Snack Chips 5L 2.5 L 1.6 L 60BPM 10 Head Multihead Weigher For Snack Chips 5L 2.5 L 1.6 L 60BPM 10 Head Multihead Weigher For Snack Chips 5L 2.5 L 1.6 L
Product Details
Material:
SUS 304 316
Application:
Snack And Puffed Potato Chips
Automatic Grade:
Automatic
Speed:
60 BPM
Control System:
PLC
Working Voltage:
220V 50HZ / 60 HZ 1P
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Wooden case
Delivery Time
15-35 working days
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price High Efficiency Pistachio Nuts Vertical Packing Machine PLC-Driven For Sealing Wrapping Labeling Filling Pouch Packaging Line online video

High Efficiency Pistachio Nuts Vertical Packing Machine PLC-Driven For Sealing Wrapping Labeling Filling Pouch Packaging Line

Get Best Price
Good price Automatic Vertical Weighing Filling Pouch Bag Snack Coffee Bean Cereal Dog Food Rice Peanut Granule Dried Fruit Packing Machine online video

Automatic Vertical Weighing Filling Pouch Bag Snack Coffee Bean Cereal Dog Food Rice Peanut Granule Dried Fruit Packing Machine

Get Best Price
Good price Safety Circular Multi Head Weight Sorting Machine For Sea Food 300 Times / Min online video

Safety Circular Multi Head Weight Sorting Machine For Sea Food 300 Times / Min

Get Best Price
Good price 20m/min Nuts Packing Machine Food Grade Cherry Tomato Stainless Steel Swan Neck Tilting Conveyor online video

20m/min Nuts Packing Machine Food Grade Cherry Tomato Stainless Steel Swan Neck Tilting Conveyor

Get Best Price
Contact Us
Contact Now
Product Description

PLC 60BPM 10 Head Multihead Weigher For Snack Chips SS 304 5L / 2.5 L / 1.6 L



Automatic Filling and Weighing System Features Customer-Made 10 head weigher with Z type elevator and packaging machine for Cheese And Onion Hoops





Automatic Filling and Weighing System Features:

1. High measurement accuracy and suitable for precise filling of 1 mold with 2 / 3 / 4 / 5 / 6 / 8 / 10 cups.
2. Full automatic cup packaging line.
3. Applicable for a wide range of products


Automatic Filling and Weighing System Features Applications :

It's suitable to use in automatically packing any loose, no adhesive, granular materials of food industry. Such as puffed food, fried food, shrimp slices, chips, fragile food of large bag of leisure food.


Automatic Filling and Weighing System Features Specificaions:

Weigher:

Model TY-1A -M10-1；TY-1A -P10-1
Max. Weighing (one hopper) 5-200g
Accuracy x (0.5)
Min. Scale Interval 0.1g
Max. Speed 60 WPM
Hopper Volume 0.8L
Control System MCU / PLC
HMI 7’’ / 10’’ color touch screen
Power Supply AC220V ±10% 50HZ/60HZ, 1.5KW
Packing Dimension 1,370(L)*1,060(W)*1,205(H)mm
Package weight 220kg


Automatic Filling and Weighing System Features Packaging Machine:

Model 320 VFFS 420 VFFS
Packing Speed 10-80 bpm 10-70 bpm
Bag Size 50-200(L)*60-150(W)mm 60-300(L)*60-200(W)mm
Bag Type pillow bag, gusset bag, hole punching bag, vacuum bag
Film Width 140-320mm 140-420mm
Film Thickness 0.04-0.09mm 0.04-0.09mm
Film Material BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE
Pulling Belt Type single / dual belt single / dual belt
Air Consumption 0.8Mps 0.25m³/min 0.8Mps 0.5m³/min
Power Supply single phase 220V 50HZ/60HZ, 2.2KW single phase 220V 50HZ/60HZ, 2.2KW
Machine Dimension 1,115(L)*800(W)*1,370(H)mm 1,530(L)*970(W)*1,600(H)mm
Machine Weight 300kg 450kg

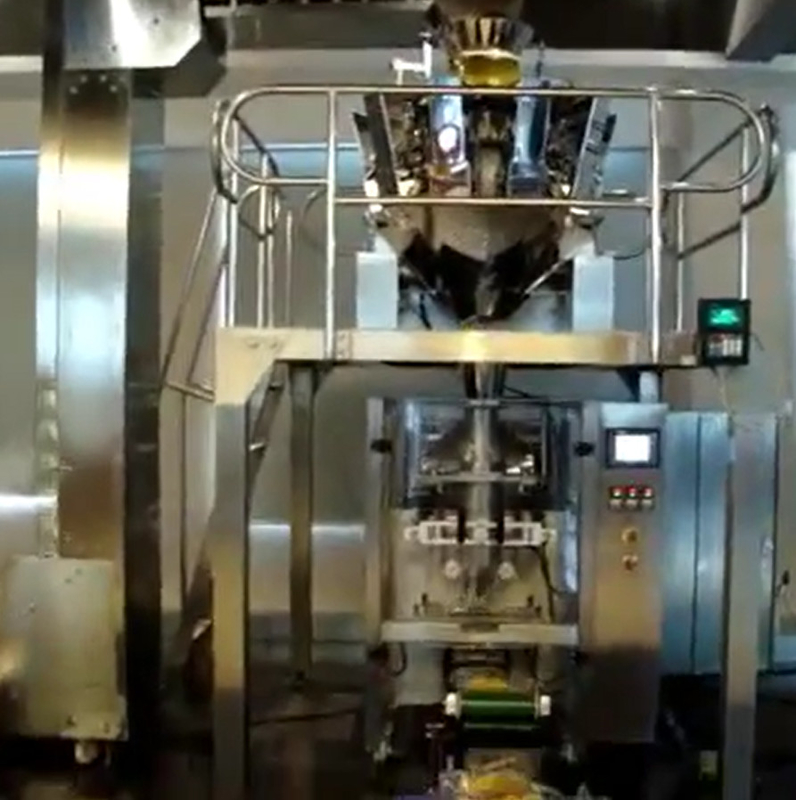

Automatic Filling and Weighing System Features Solution units:

① Z-type bucket conveyor
② 10 / 14 head weigher
③ Working platform
④ VFFS
⑤ Finished product conveyor
⑥ Auto check weigher
⑦ Metal detector


Automatic Filling and Weighing System Features Details:

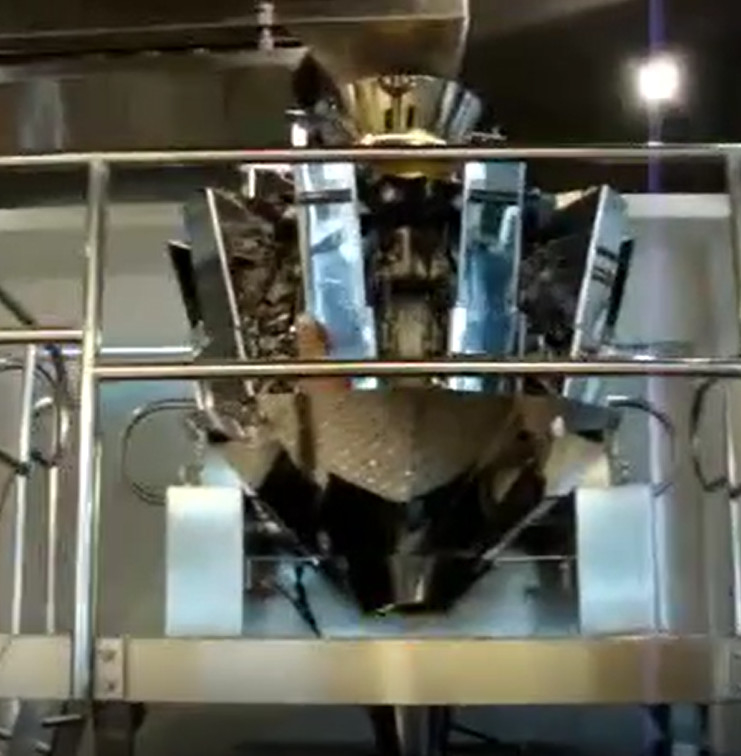

Vibration Hopper:

60BPM 10 Head Multihead Weigher For Snack Chips 5L 2.5 L 1.6 L 0



Buckets:

60BPM 10 Head Multihead Weigher For Snack Chips 5L 2.5 L 1.6 L 1

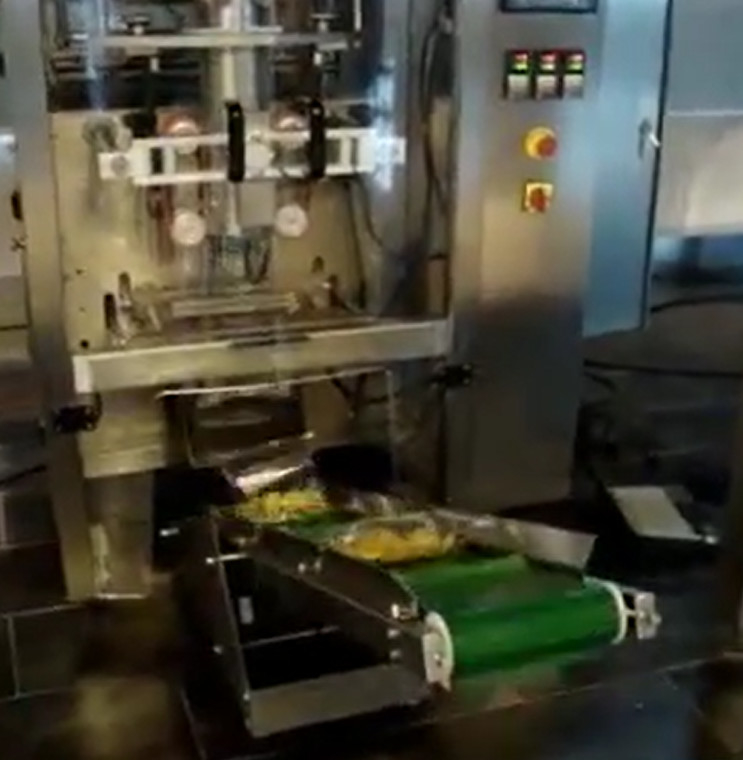

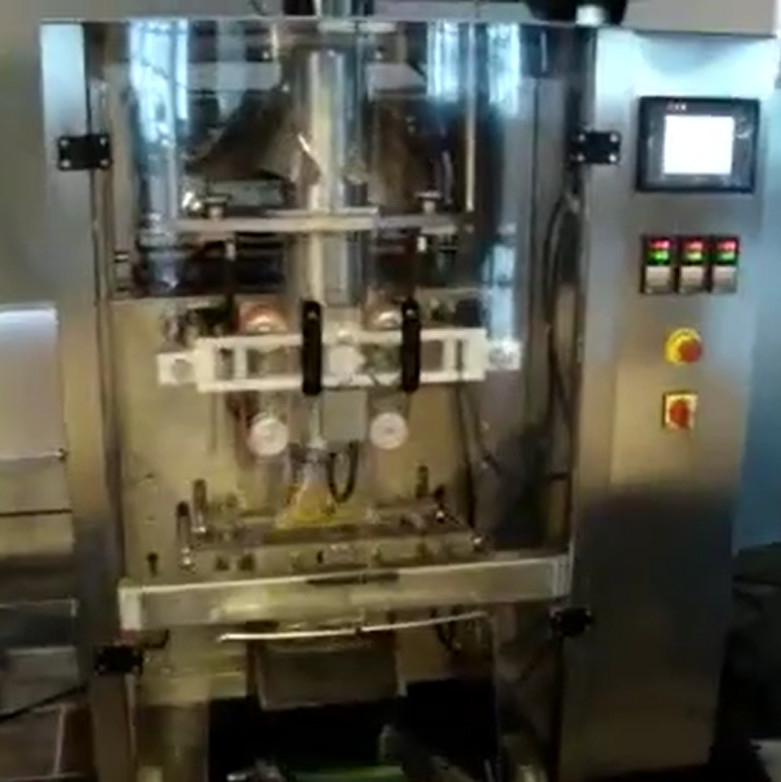

Packaging Machine:



60BPM 10 Head Multihead Weigher For Snack Chips 5L 2.5 L 1.6 L 2
