Vertical Forming Filling Sealing 520 Pillow Bagging Machine For Snack Food

Vertical Forming Filling Sealing 520 Pillow Bagging Machine For Snack Food

Vertical Forming Pillow Bagging Machine

Snack Food Pillow Bagging Machine

Place of Origin:

China

Brand Name:

TOUPACK

Certification:

CE, ISO

Model Number:

VFFS-520

Contact Us
Request A Quote
Vertical Forming Filling Sealing 520 Pillow Bagging Machine For Snack Food Vertical Forming Filling Sealing 520 Pillow Bagging Machine For Snack Food Vertical Forming Filling Sealing 520 Pillow Bagging Machine For Snack Food Vertical Forming Filling Sealing 520 Pillow Bagging Machine For Snack Food
Product Details
Power Supply:
Single Phase, AC220V@50Hz/60Hz
Material:
SUS 304 Stainless Steel
Packing Speed:
10-60 BPM
Film Width:
120-520mm
Film Thickness:
0.04-0.09mm
Bagging:
Pillow Bag, Block Bottom Bag, Side Sealing Bag, Doy Pack Bag
Gross Weight:
300-900KGS
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
negotiable
Packaging Details
wood crates
Delivery Time
15-30 days
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price High Speed AC220V 100bpm Snack Food Packaging Machine For Biscuits online

High Speed AC220V 100bpm Snack Food Packaging Machine For Biscuits

Get Best Price
Good price 0.8L 80WPM Snack Food Packaging Machine Conveyor Packing Machine For Stand Up Pouch online

0.8L 80WPM Snack Food Packaging Machine Conveyor Packing Machine For Stand Up Pouch

Get Best Price
Good price 80 Bags / min 250W SUS304 Puffed Food Packaging Machine online

80 Bags / min 250W SUS304 Puffed Food Packaging Machine

Get Best Price
Good price 220V 50Bpm Snack Food Packaging Machine , Premade Pouch Packing Machine online

220V 50Bpm Snack Food Packaging Machine , Premade Pouch Packing Machine

Get Best Price
Contact Us
Contact Now
Product Description
Vertical Forming Filling Sealing 520 Pillow Bagging Machine For Snack Food
Product Overview

Automatic SUS 304 stainless steel vertical forming, filling, and sealing machine designed for efficient snack food packaging. The VFFS-520 model combines precision engineering with user-friendly operation for optimal packaging performance.

Key Features
  • Advanced Control System: PLC control with human-machine interface and intuitive touch screen operation
  • Precision Packaging: Servo film running system with pneumatic horizontal sealing for accurate positioning
  • Integrated Process: Combines measuring, feeding, filling, bag forming, and printing in one automated system
  • Safety Features: Automatic alarm and protection functions to minimize operational losses
  • Versatile Bagging: Supports multiple bag types including pillow, gusset, and hole-punching bags
Technical Specifications
Model VFFS-520
Packing Speed 10-60 BPM
Bag Dimensions 50-350 (L) × 250 (W) mm
Bag Types Pillow bag, block bottom bag, side sealing bag, doy pack bag
Film Width 120-520mm
Film Thickness 0.04-0.09mm
Film Material BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE
Power Supply Single-phase, 220V@50Hz/60Hz, 3.4KW
Machine Dimensions 1560 (L) × 1160 (W) × 1530 (H) mm
Gross Weight 480KGS

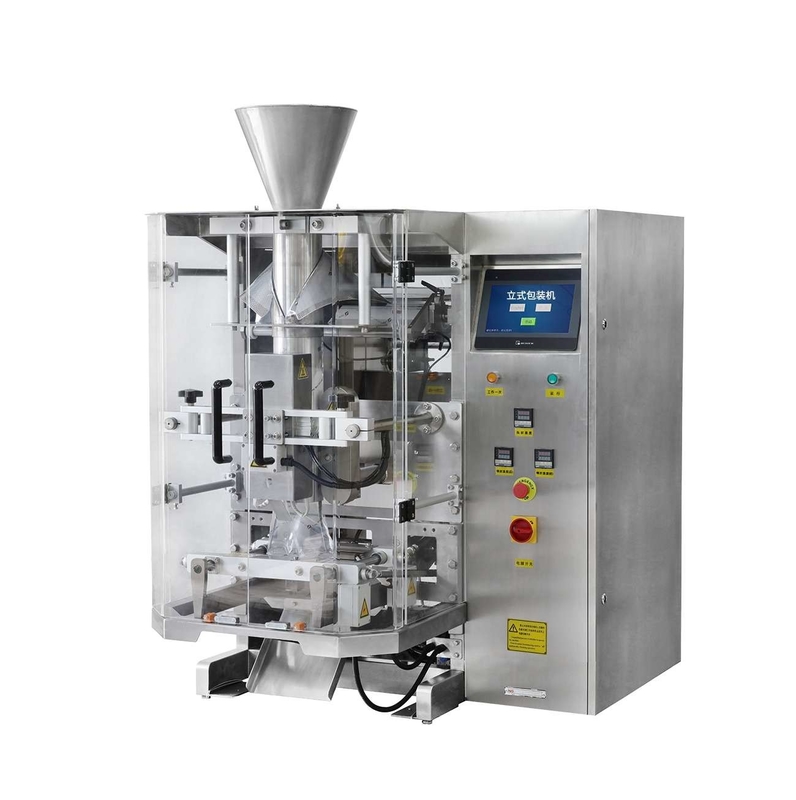

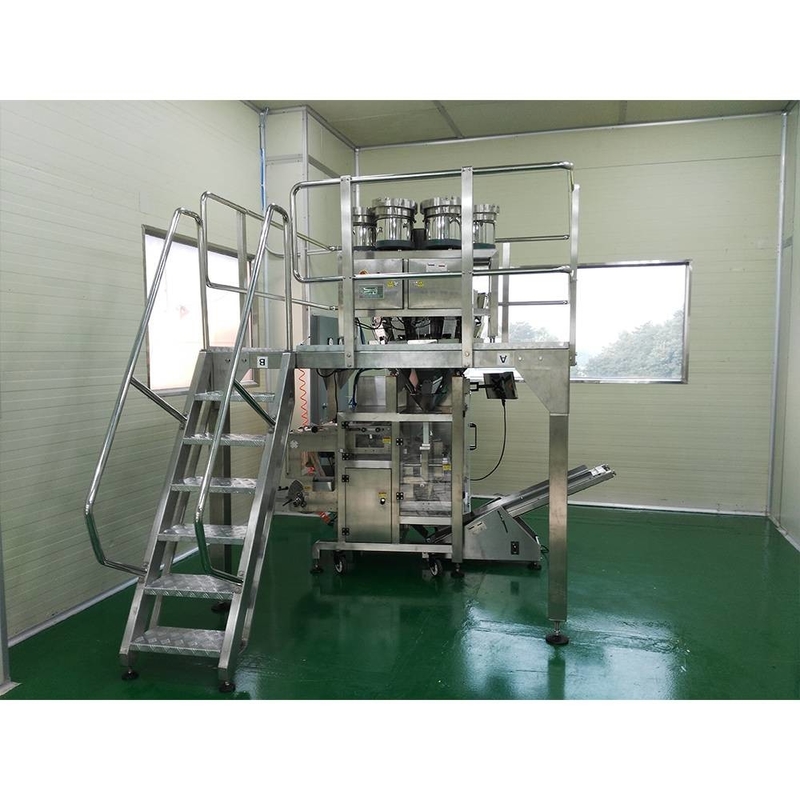

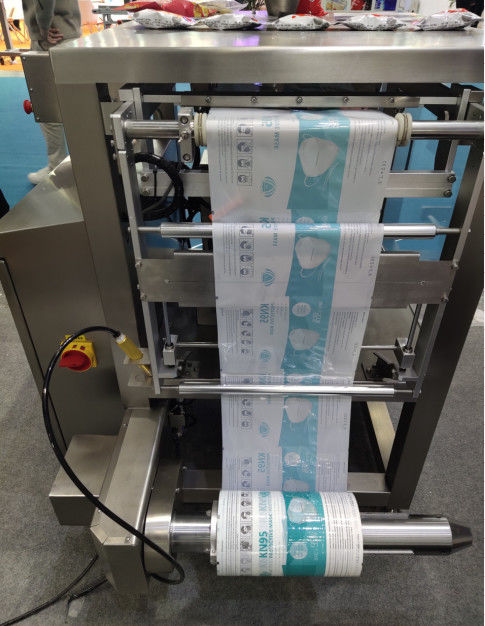

Product Images
Vertical Forming Filling Sealing 520 Pillow Bagging Machine For Snack Food 0 Vertical Forming Filling Sealing 520 Pillow Bagging Machine For Snack Food 1
