Customized 50 Bags / Min Automatic Bag Filling Machine

Customized 50 Bags / Min Automatic Bag Filling Machine

SUS 304 Automatic Bag Filling Machine

50 Bags / Min Bag Filling Machine

SUS 316 Biscuit Packing Machine

Place of Origin:

Zhongshan, Guangdong, China

Brand Name:

TOUPACk

Certification:

CE / ISO

Model Number:

Z type bucket elevator / multihead weigher

Contact Us
Request A Quote
Customized 50 Bags / Min Automatic Bag Filling Machine
Customized 50 Bags / Min Automatic Bag Filling Machine Customized 50 Bags / Min Automatic Bag Filling Machine Customized 50 Bags / Min Automatic Bag Filling Machine Customized 50 Bags / Min Automatic Bag Filling Machine Customized 50 Bags / Min Automatic Bag Filling Machine Customized 50 Bags / Min Automatic Bag Filling Machine
Product Details
Material:
SUS 304 / 316 / Carbon Steel
Solution:
Automatic Weighing And Packaging Solution With 10-head Weigher , Z Shape Elevator And VFFS Packaging Machines
Condition:
New
Type:
Fully Automatic For Egg Roll
Function:
Multifunctional
Control System:
AB / Siemens PLC Or MCU
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Wooden Case
Delivery Time
15-35 working days
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price Customized 50 Bags / Min Automatic Bag Filling Machine online video

Customized 50 Bags / Min Automatic Bag Filling Machine

Get Best Price
Good price Intelligent Biscuit Packing Machine candy Cans Filling System online video

Intelligent Biscuit Packing Machine candy Cans Filling System

Get Best Price
Good price CE Approve 50Bpm Multi Pack Biscuit Packing Machine Fully Automated online

CE Approve 50Bpm Multi Pack Biscuit Packing Machine Fully Automated

Get Best Price
Good price 0-20m / Min SUS 304 Finished Product Conveyor For Biscuit Cherry online

0-20m / Min SUS 304 Finished Product Conveyor For Biscuit Cherry

Get Best Price
Contact Us
Contact Now
Product Description

SUS 304 Customized 50 Bags / Min Automatic Bag Filling Machine



Automatic Weighing And Packaging Solution, including a 10 Heads Weigher,  a Z Type 1.8L Buckrt Elevator and a VFFS Packaging Machine





Application:



It's suitable to use in automatically packing any loose, no adhesive, granular materials of food industry. Such as puffed food, fried food, shrimp slices, chips, fragile food of large bag of leisure food.



Specification:



10 Heads Multi-head Weigher
Max. Weighing (one hopper) 5-200g
Accuracy x (0.5)
Min. Scale Interval 0.1g
Max. Speed 60 WPM
Hopper Volume 0.8L/0.5L
Control System MCU / PLC
HMI 7’’ / 10’’ color touch screen
Power Supply AC220V ±10% 50HZ/60HZ, 1.5KW
Packing Dimension 1,370(L)*1,060(W)*1,105(H)mm
Package weight 220kg





Packaging machine 520 VFFS 620 VFFS 720 VFFS
Packing Speed 10-60 bpm 10-50 bpm 10-50 bpm
Bag Size 50-350(L)*50-250(W)mm 20-400(L)*100-300(W)mm 20-450(L)*140-350(W)mm
Bag Type pillow bag, gusset bag, hole punching bag pillow bag, gusset bag, hole punching bag pillow bag, gusset bag, hole punching bag
Film Width 120-520mm 620mm 720mm
Film Thickness 0.04-0.09mm 0.04-0.09mm 0.06-0.12mm
Film Material BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE
Pulling Belt Type synchronous belt film pulling synchronous servo motor belt film pulling synchronous servo motor belt film pulling
Air Consumption 0.8Mps 0.4m3/min 0.8Mps 0.6m3/min 200L/min 0.7×105Pa
Power Supply single phase 220V 50HZ/60HZ, 3.4KW / 4.2KW single phase 220V 50HZ/60HZ, 4.0KW single phase 220V 50/60HZ, 4.5KW
Machine Dimension 1,560(L)*1,160(W)*1,530(H)mm 1,250(L)*1,600(W)*1,700(H)mm 1,360(L)*1,630(W)*1,900(H)mm
Machine Weight 480kg 800kg 900kg



Z type conveyor
Body Material carbon steel / SUS304
Hopper Volume 1.0L / 1.8L / 3.6L
Hopper Surface dimple / plain
Power Supply single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW
Conveying Capacity 2.5m³/h / 4m³/h / 8m³/h
Machine Dimension(mm) per customer’s requirement
Vibrating Feeder detached / independent vibrating feeder
Feeder Volume 70L / 100L / 150L / 200L
Discharge Funnel single / double / multiple





Successful case:

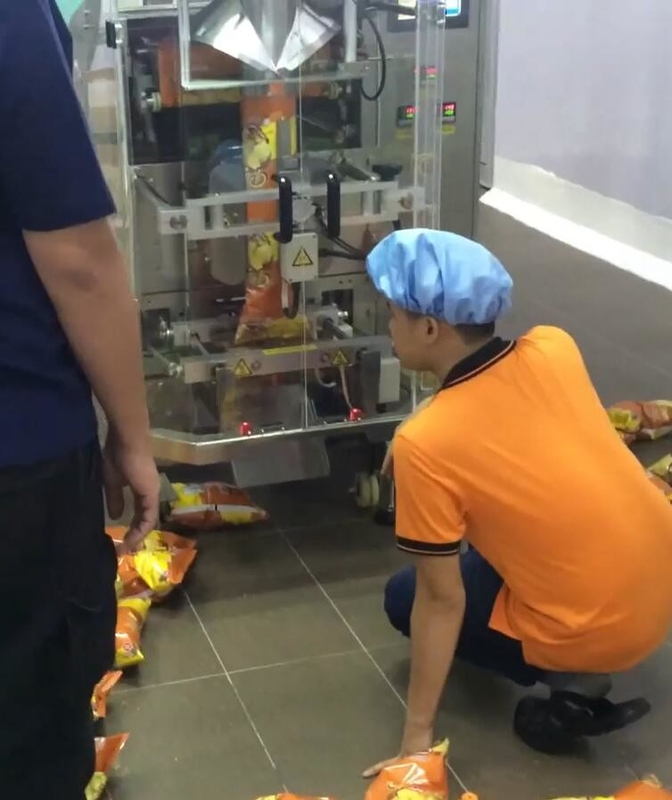

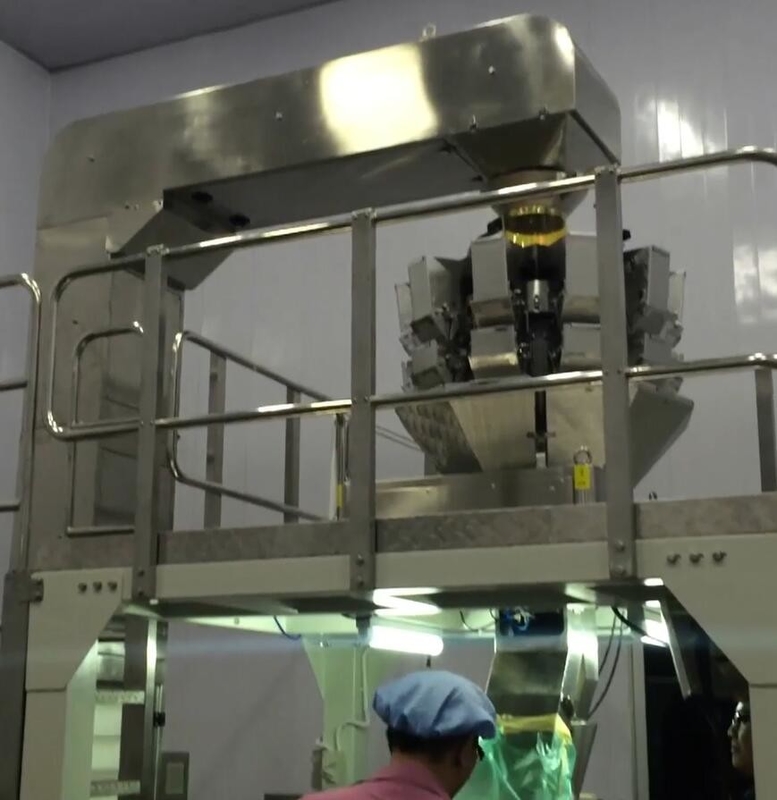

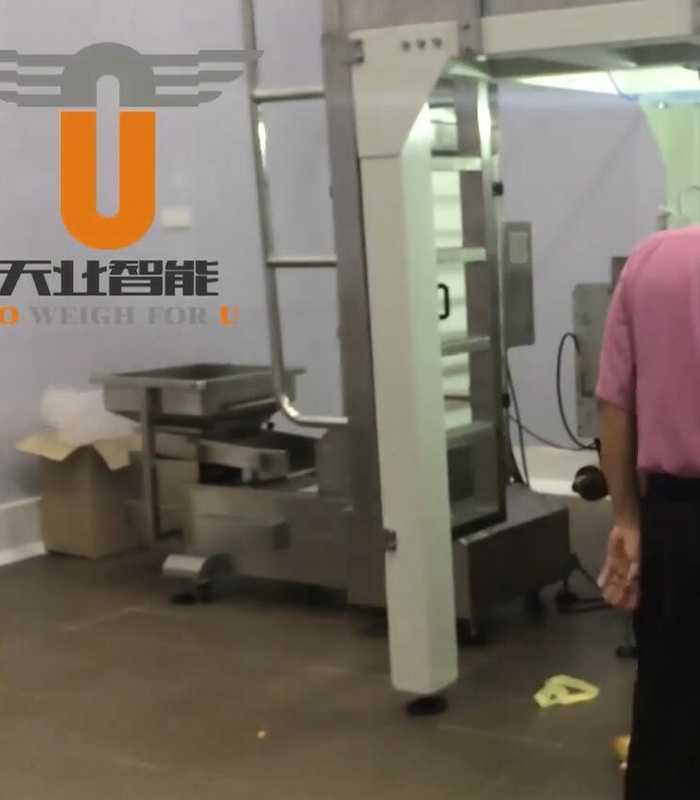

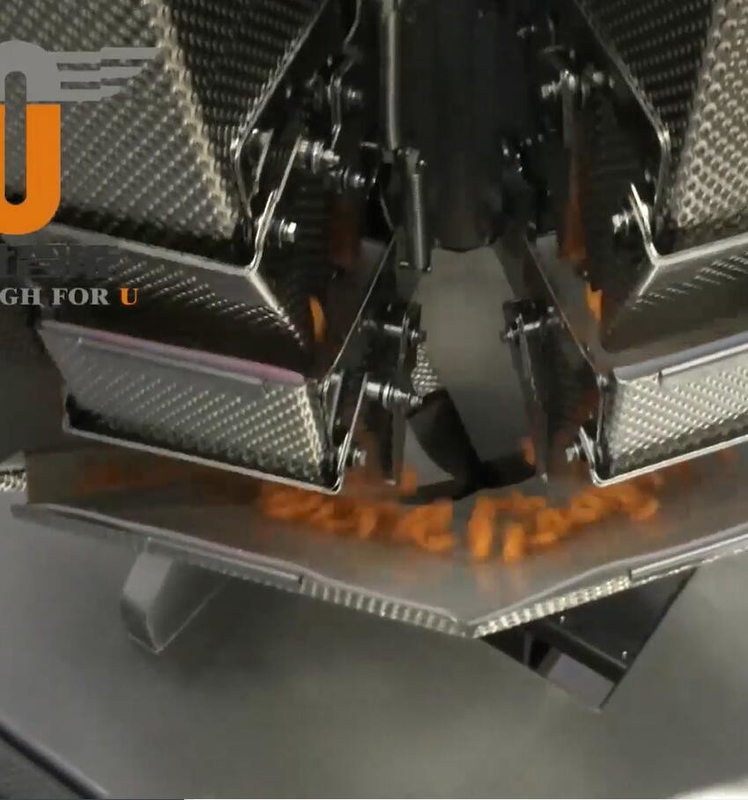

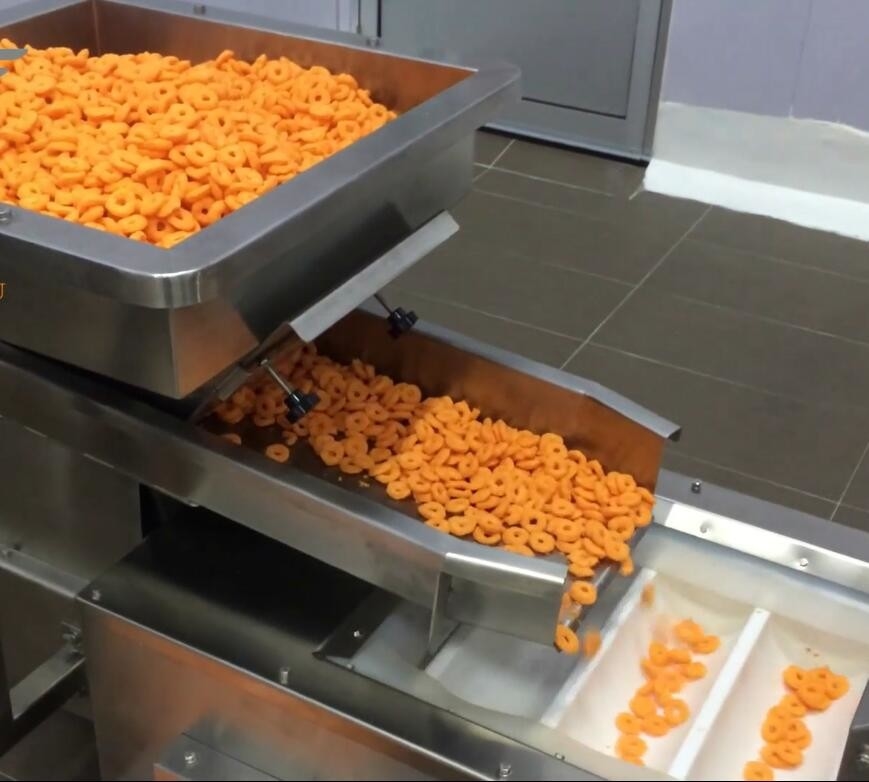

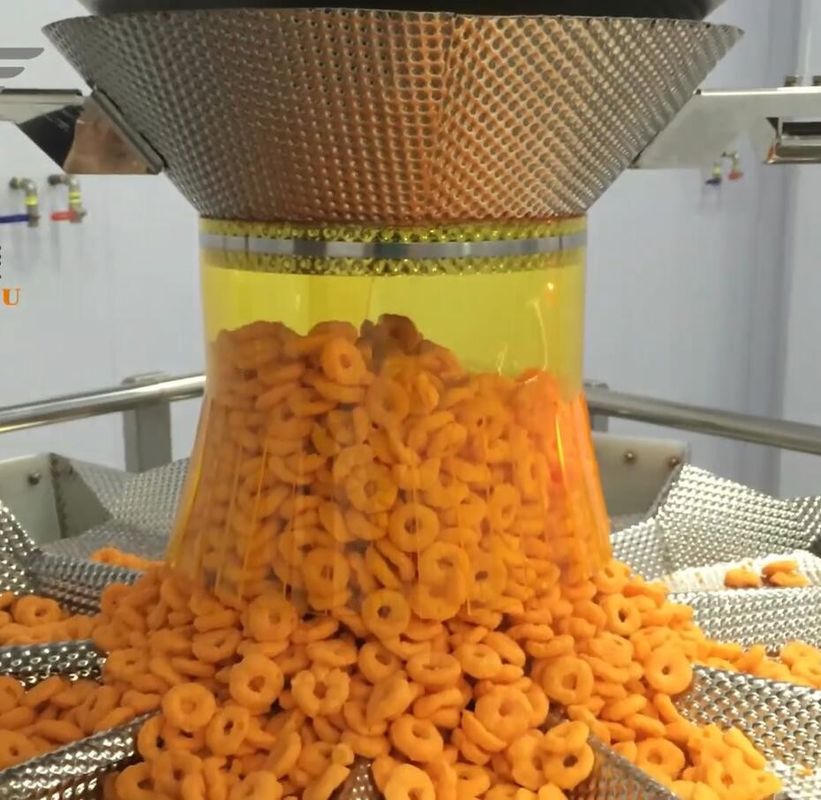

Customized 50 Bags / Min Automatic Bag Filling Machine 0



Customized 50 Bags / Min Automatic Bag Filling Machine 1
