Place of Origin:
Guangdong, China
Brand Name:
TOUPACK
Certification:
CE, ISO
Model Number:
Auto packaging system with multihead weigher and S shape elevator
High Speed Two Channel Multi-Function Weigher For Gummy / Chew Candy / Lollipops Packaging System
Multi-Function Packaging System Application:
Applicable for weighing of all types of small-sized / dosed, granular products, such as prepared herbal medicine, tea, seeds, MSG, chicken essence seasoning, coffee beans, jelly bean, candies, chocolate beans, etc.
Multi-Function Packaging System Advantages:
1. More Advanced: SPWM - Individual Frequency and Voltage modulation for efficient performance.
2. More Flexible: Data Carrier Detection Method on Essential Frequency.
3. More Stable: Standardized SMT Application.
4. More Convenient: Modularized Design and Easy Assembly.
Multi-Function Packaging System Specification:
Model | TY-A-M/P14-1 | TY-A-M/P14-2 |
Weighing Range | 5-200g | 20-1500g |
Accuracy | x(0.5) | x(0.5) |
Min.Scale Interval | 0.1g | 0.1g |
Max. Speed | 120 P/M | 120 P/M |
Hopper Volume | 0.8L | 1.6L/2.5L |
Control System | MCU/PLC | MCU/PLC |
HMI | 7''/10'' Touch screen | 7''/10'' Touch screen |
Power Supply | AC220V ±10% 50HZ/60HZ, 1.5KW | AC220V ±10% 50HZ/60HZ, 1.5KW |
Packing Dimension | 1,370*1,060*1,105mm (L*W*H) | 1140*1140*1853 (L*W*H) |
Gross Weight | 240KGS | 500KGS |
Model | TY-1A -M10-1;TY-1A -P10-1 |
Max. Weighing (one hopper) | 5-200g |
Accuracy | x (0.5) |
Min. Scale Interval | 0.1g |
Max. Speed | 60 WPM |
Hopper Volume | 0.8L/0.5L |
Control System | MCU / PLC |
HMI | 7’’ / 10’’ color touch screen |
Power Supply | AC220V ±10% 50HZ/60HZ, 1.5KW |
Packing Dimension | 1,370(L)*1,060(W)*1,205(H)mm |
Package weight | 220kg |

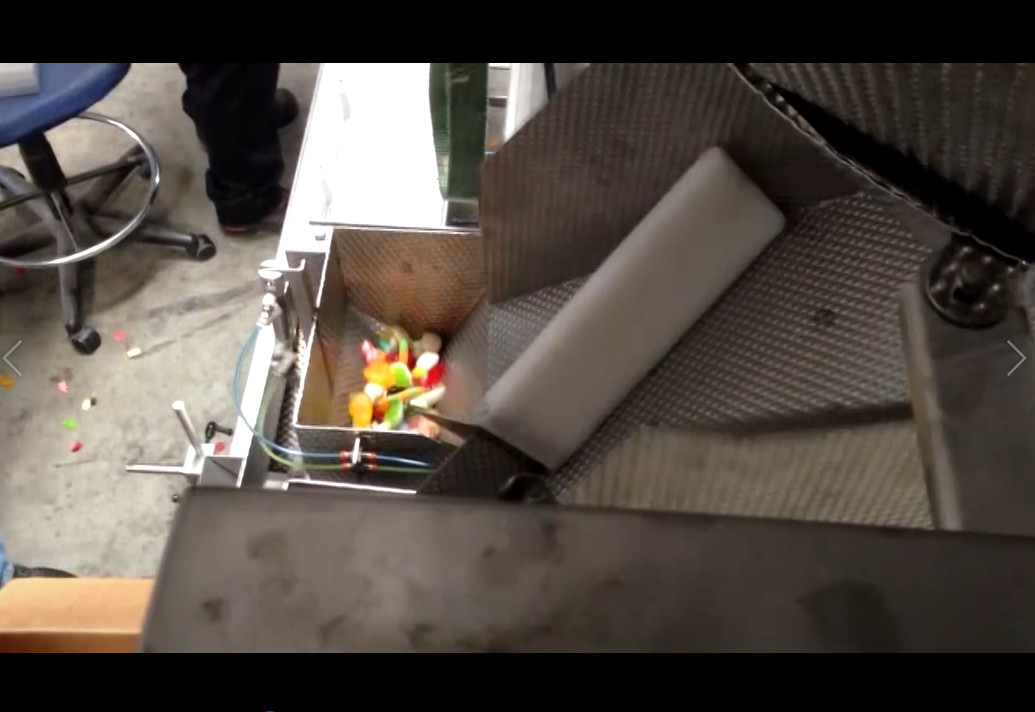

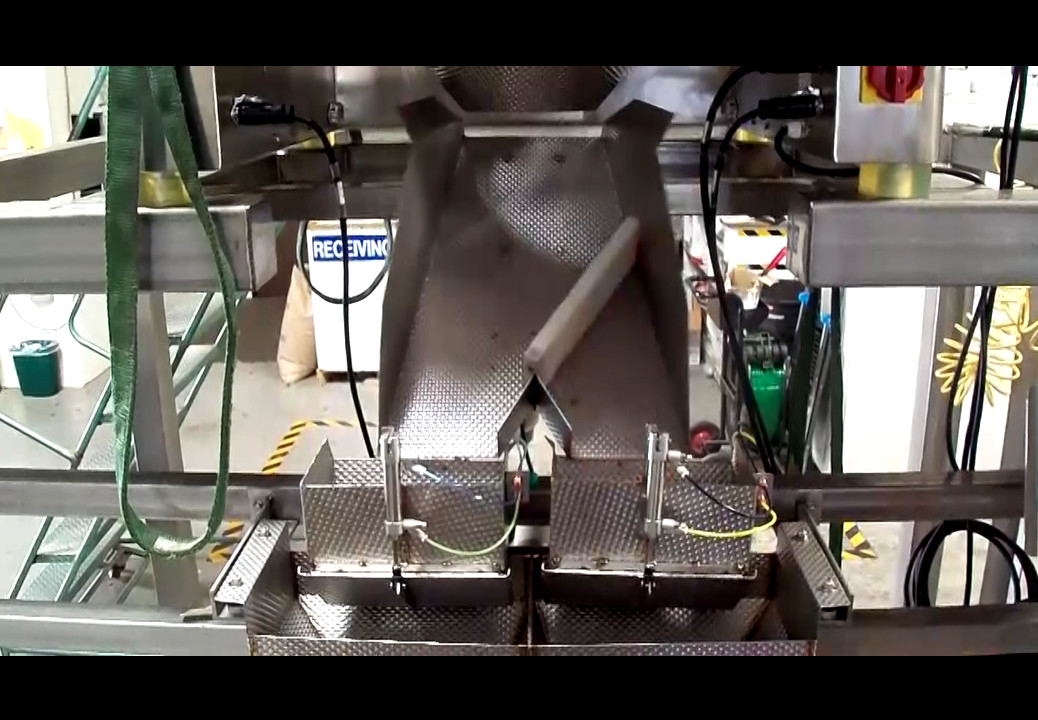

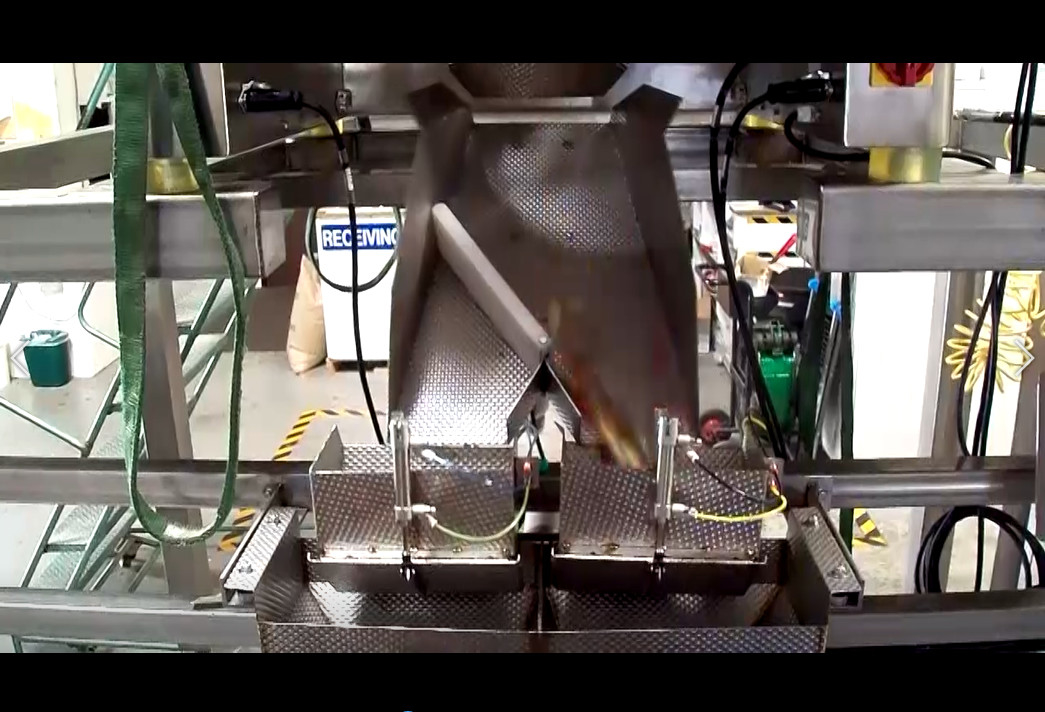

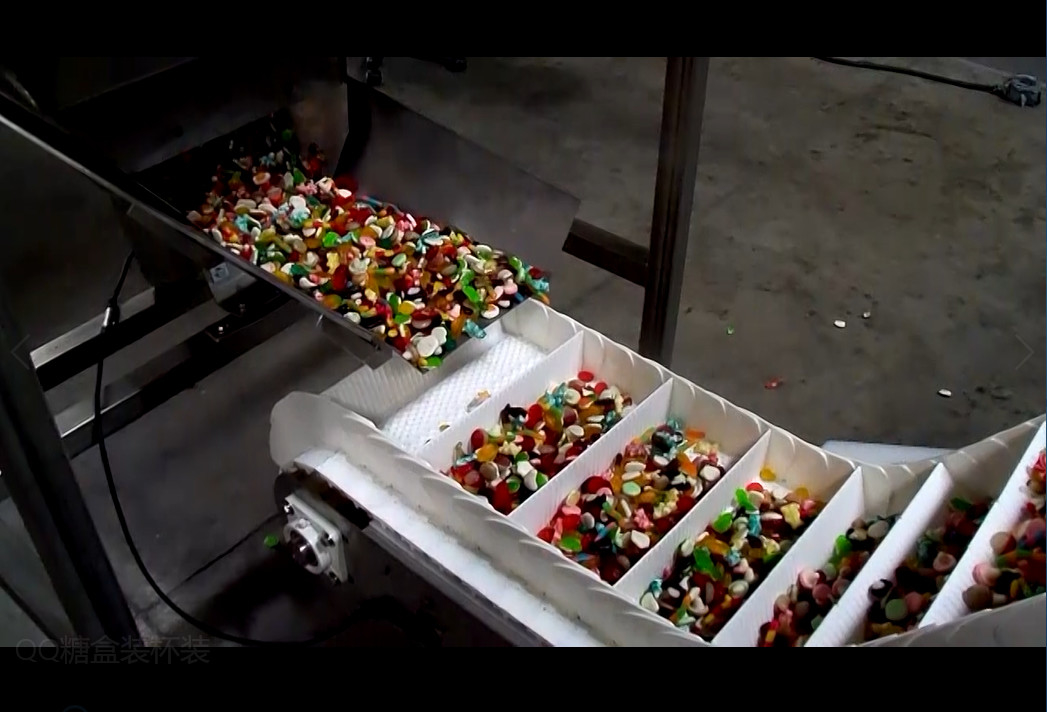

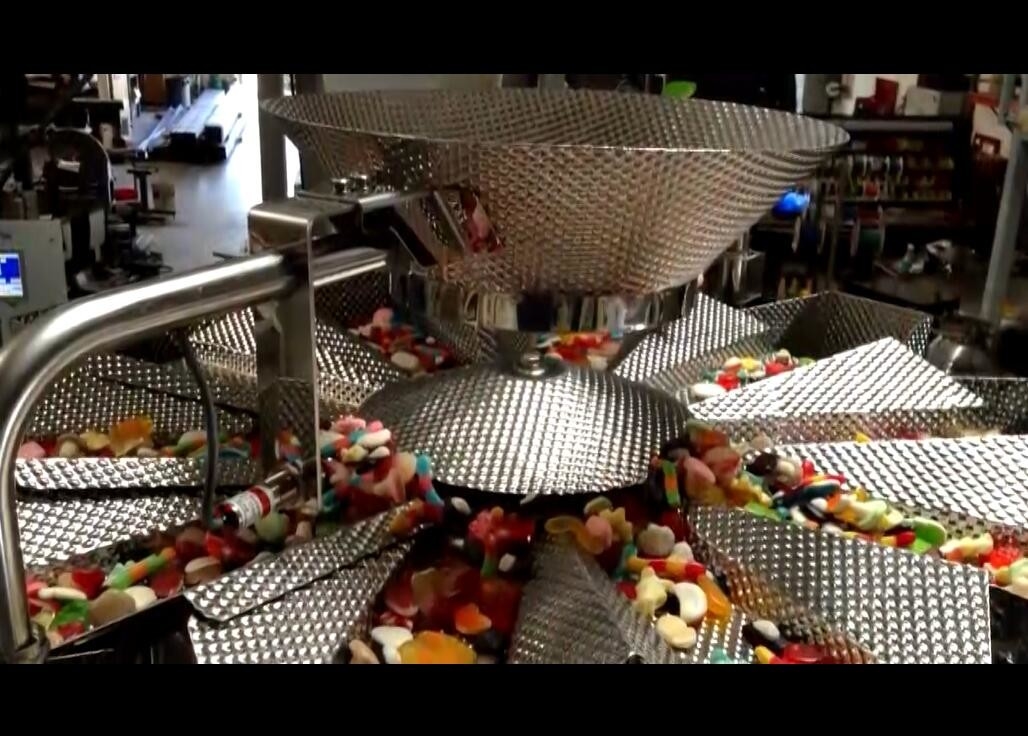

Multi-Function Packaging System Details:
