Place of Origin:
CHINA
Brand Name:
TOUPACK
Certification:
CE
Model Number:
TY-ZHY142M16-01-11

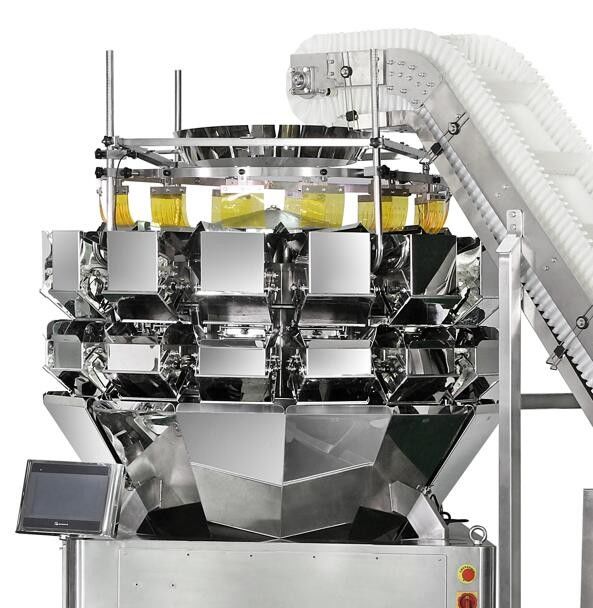

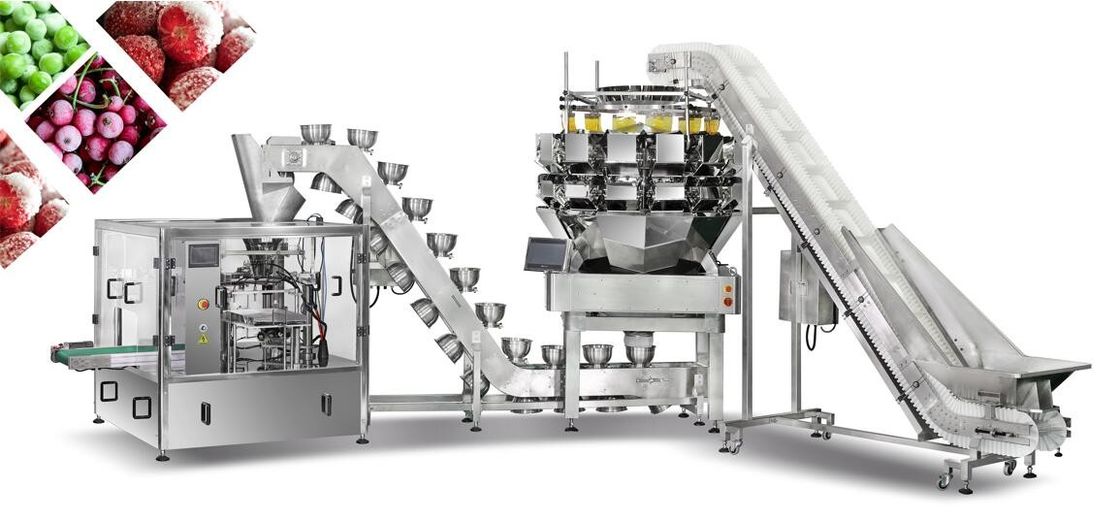

CE Certificate SUS 304 Auto Weighing And Packaging System For Frozen Food
Application:
Applicable for granular products, such as candies, nuts, potato chips, frozen fruit, green vegetable, frozen food, chemical medicine, as well as block items, for example, individual small packages of soy milk powder, oatmeal, various granulars, snack foods and other products in the secondary packaging.
Main Function & Features:
1. high precision and good stability professional digital weighing module.
2. Optional MCU or PLC Control system.
3. Touch screen application software upgraded through USB; with 16 languages
4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.
5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.
6. Weighing and counting function to meet diverse needs from customers.
7. Real-time display of amplitude of each vibration pan and each hopper to better monitor the running status.
8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.
9. Able to make hoppers open for easy daily cleaning and maintenance.
10. Easy maintenance and cost-saving with modular design.
Specification
| Model | TY-ZHY142M16-01-11 |
| Max. Weighing (one hopper) | 20-1500g |
| Accuracy | x (0.5) |
| Max. Scale Interval | 0.1g |
| Max. Speed | 120 WPM |
| Hopper Volume | 2.5L |
| Control System | MCU / PLC |
| HMI | 7’’ / 10’’ color touch screen |
| Power Supply | AC220V±10% 50HZ/60HZ, 1.5KW |
