Place of Origin:
Guangdong, China
Brand Name:
TOUPACK
Certification:
ISO, CE
Model Number:
Inclined elevator with bucket

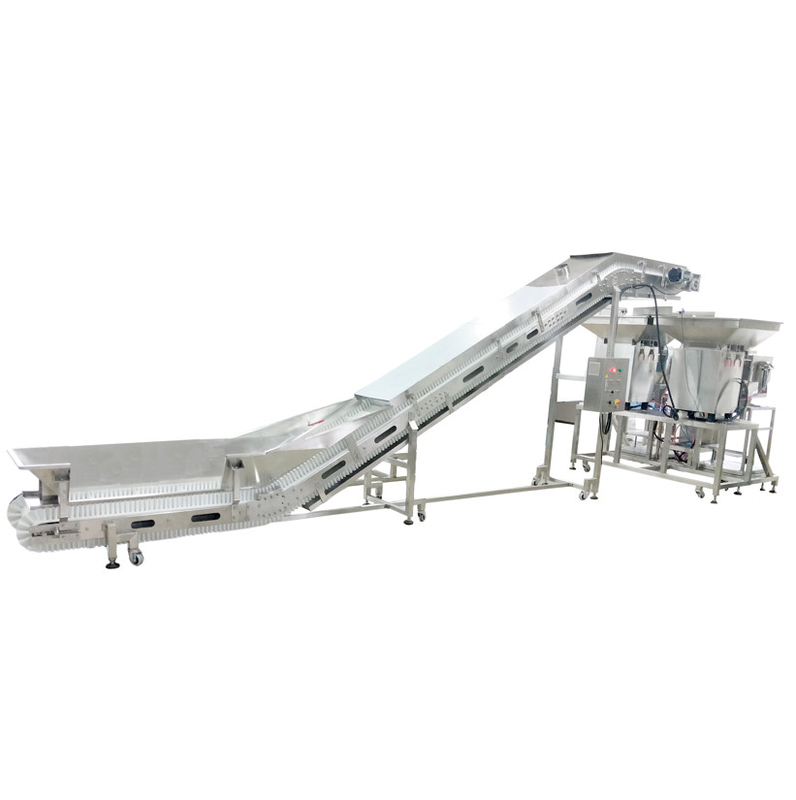

Machine With Inclined Conveyor With Hopper Puffed Food With Acrylic Cabinet for keeping Foreign Objects from Air Or Other Machines
System Application:
Applicable for lift-conveying of granular products, such as potato chips, candies, nuts, frozen food, green vegetable, chemical medicine, etc.
1. Two conveyors : Solved the height limitation in workshop(less than 3m).

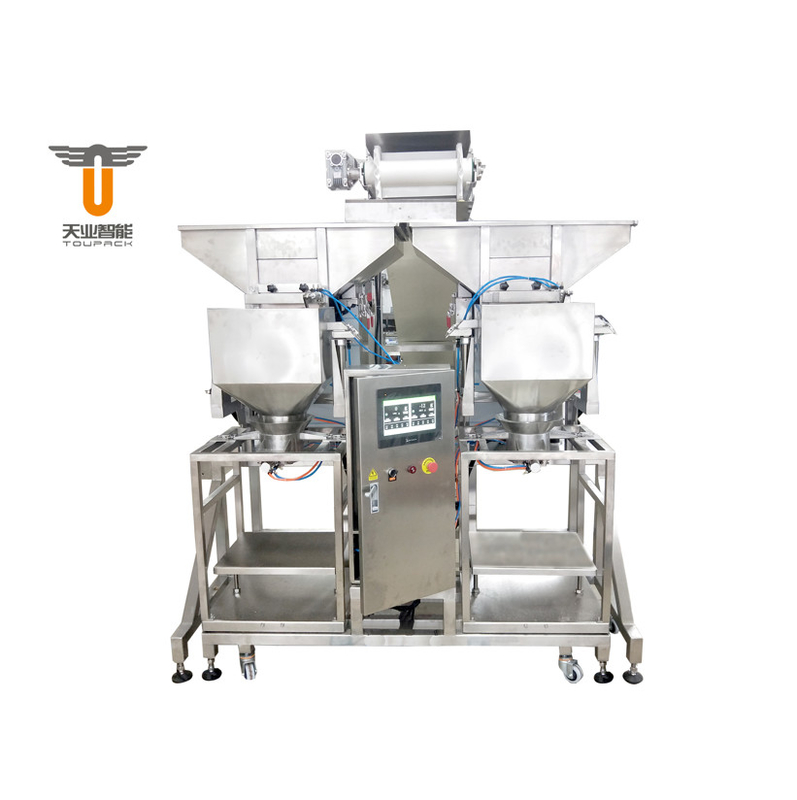

2. 14 head 5L hopper : Used for bulk products.
3. Packaging machine: Bag width 200-350mm
Technical Parameters:
Rotary packaging machine:
Model | TY-RP200 | TY-RVP200 |
Packaging Speed | 30~50 bpm | 50 bpm |
Bag Size | 100-160(L)*100-230(W)mm | 100-180(L)*120(W)mm |
Packaging Weight | 1-1.5kg | 1-2kg |
Sealing Type | reticulate pattern sealing; double zipper sealing | reticulate pattern sealing; double zipper sealing |
Powder Supply | 3 phase 380V 50HZ, 3KW | 3 phase 380V 50HZ, 5KW |
Air Consumption | 5-8kgf/cm²; 0.4m³/min | 0.6m³/min |
Bag Type | flat bag, stand-up bag, zipper bag | flat bag, stand-up bag, zipper bag, paper bag, etc. |
Net Weight | 1,600kg | 1,800kg |
Machine Dimension | 1,550(L)*1,350(W)*1,400(H)mm | 1,480(L)*1,320(W)*1,510(H)mm |

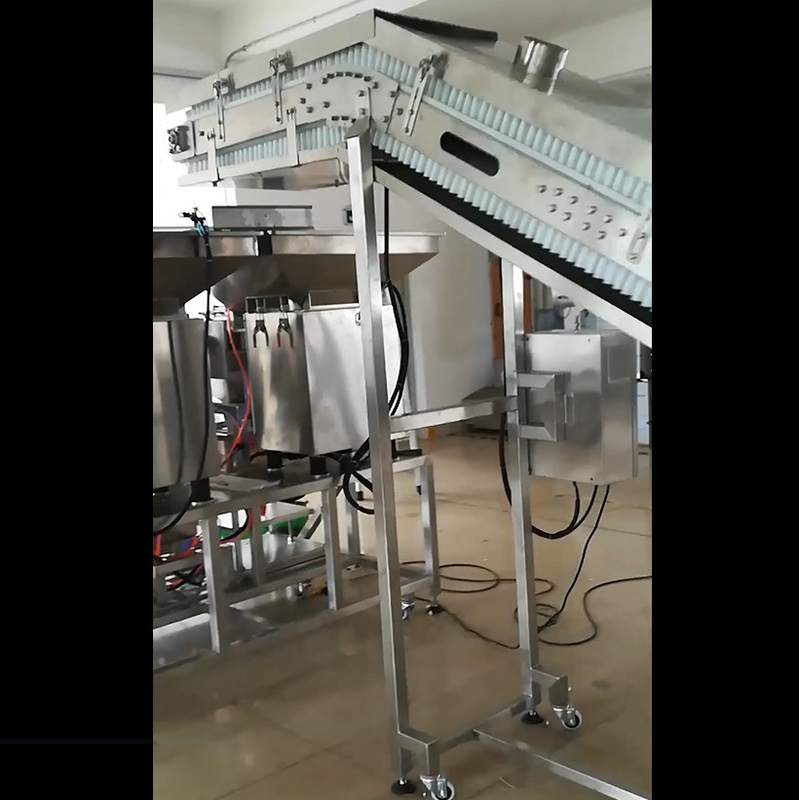

Inclined conveyor:
Contents | Specifications |
Body Material | SUS304 |
Conveyor Type | belt / chain plate |
Belt Material | PVC / PU / PP |
Sidewall / Skirt Height | Sidewall: 50mm; Skirt: 75mm or per requirement |
Power Supply | single / 3 phase 220V/380V 50HZ/60HZ, 1.1KW |
Conveying Speed | 0~20m/min |
Conveyor Width(mm) | custom-made per requirement |
Machine Dimension(mm) | custom-made per requirement |
