Mixed Packaging System Dried Fruit Vffs Packaging Machine Snack Food Multihead Weigher

Mixed Packaging System Dried Fruit Vffs Packaging Machine Snack Food Multihead Weigher

Dried Fruit Vffs Packaging Machine

Multihead Vffs Packaging Machine

Place of Origin:

China

Brand Name:

TOUPACK

Certification:

CE,ISO9001

Contact Us
Request A Quote
Product Details
Test Material:
Dried Banana Slices,dried Kiwi,dried Strawberry,dried Pineapple
Customized Support:
OEM,ODM
Function:
Waterproof
Parameter Adjustment:
Auto Learning/Manual Setting
Application:
Food Industry
Color:
Silver Gray
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden case
Delivery Time
According to the actual situation
Payment Terms
L/C, T/T
Product Description

Mixed Packaging System For Dried Fruit Vffs Packaging Machine Snack Food Multihead Weigher

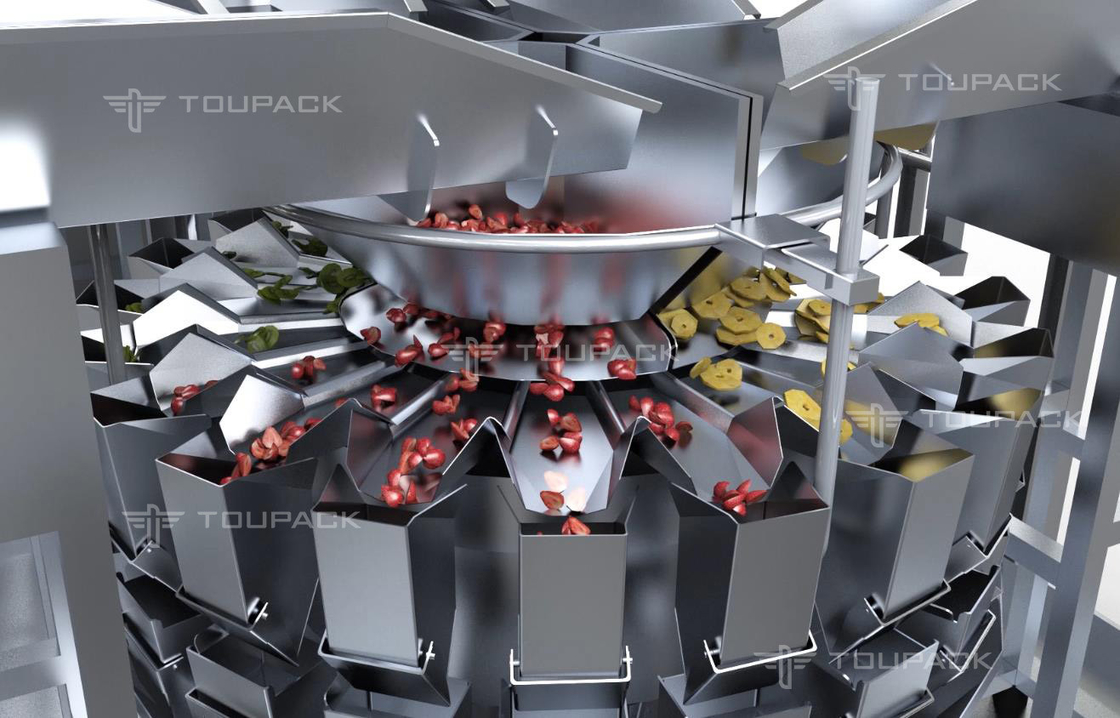

Mixed Packaging System Dried Fruit Vffs Packaging Machine Snack Food Multihead Weigher 0







Mixed packaging system for dried fruit Solution:

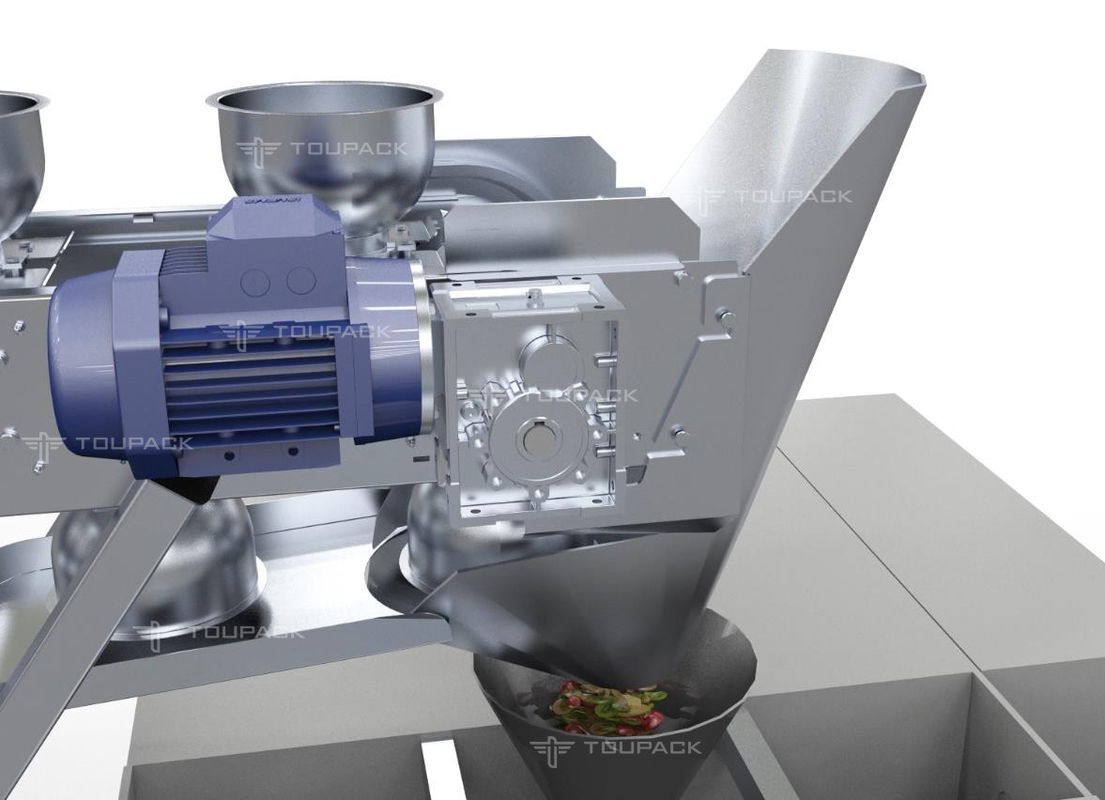

Inclined Conveyor + 20 Head Weigher + Supporting Platform + Bowl-Type Elevator + Packaging Machine + Finished Products Conveyor + Automatic Check Weigher + Rotary Table

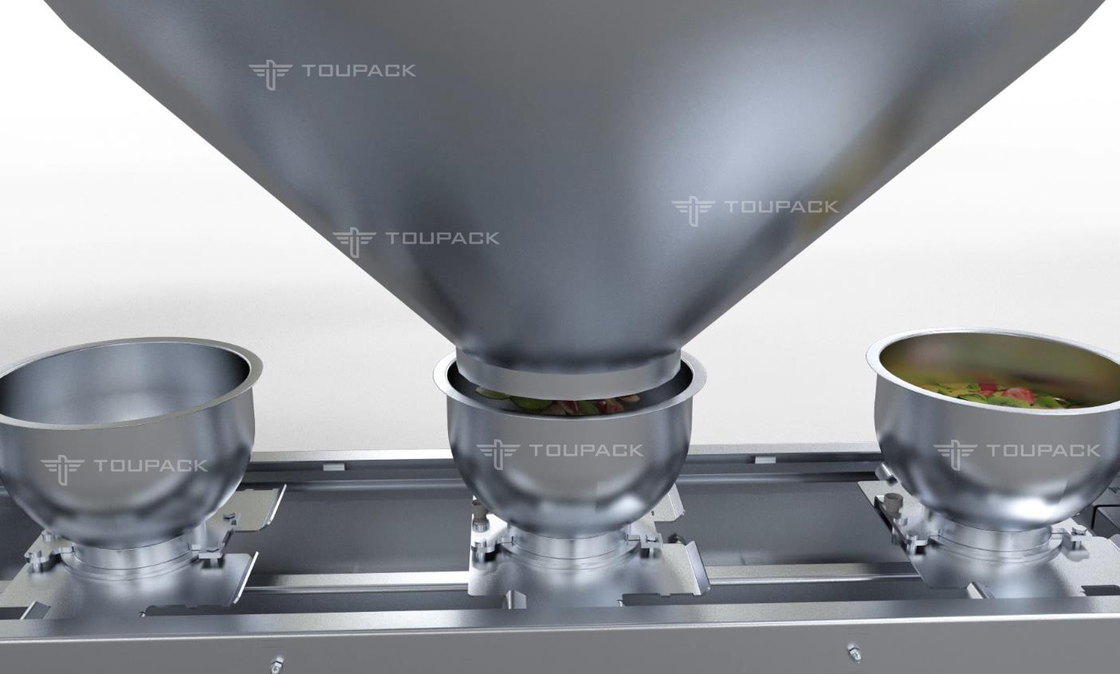

Mixed Packaging System Dried Fruit Vffs Packaging Machine Snack Food Multihead Weigher 1

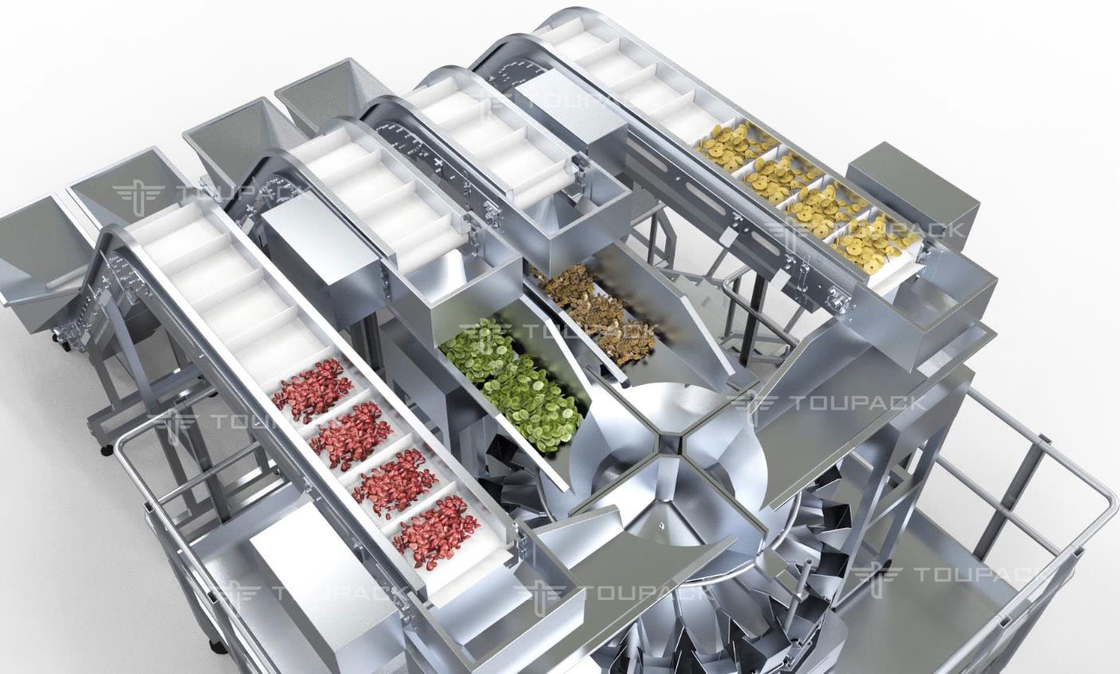

Mixed Packaging System Dried Fruit Vffs Packaging Machine Snack Food Multihead Weigher 2

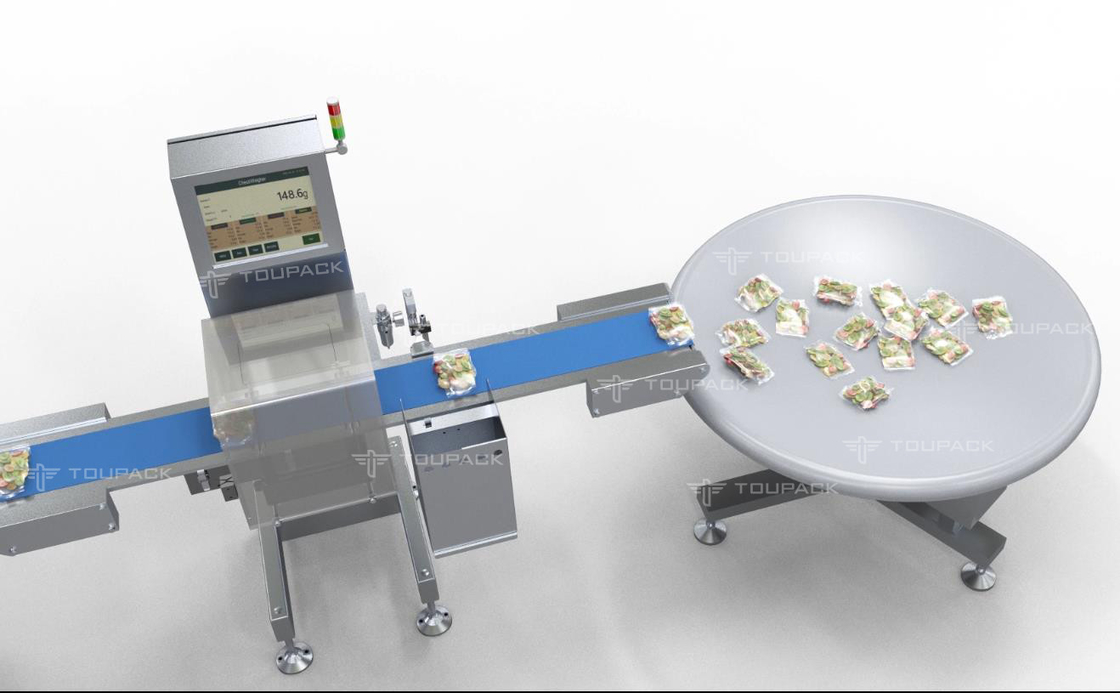

Mixed Packaging System Dried Fruit Vffs Packaging Machine Snack Food Multihead Weigher 3

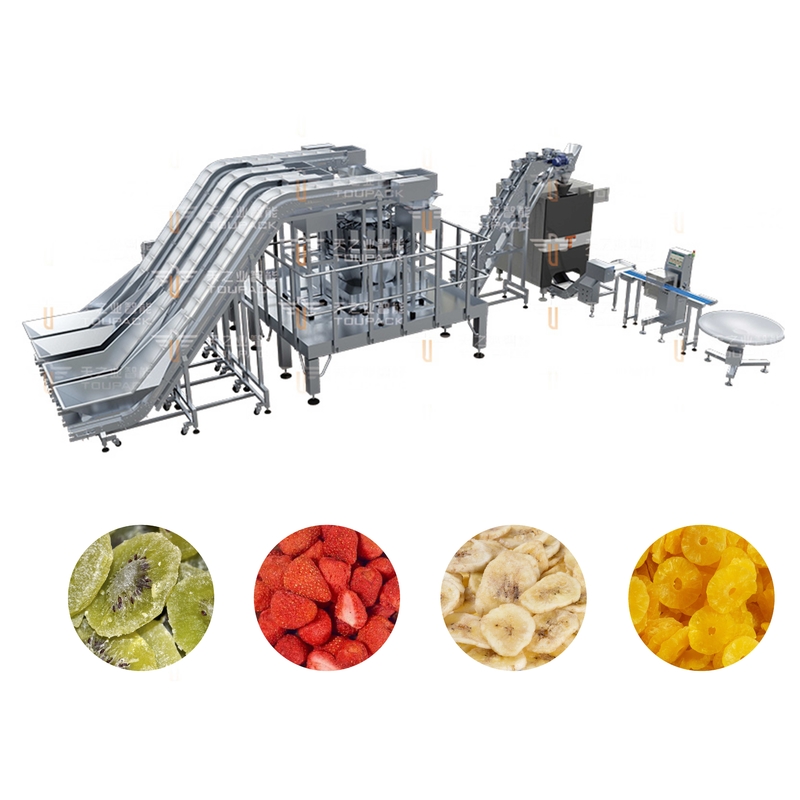

Mixed Packaging System Dried Fruit Vffs Packaging Machine Snack Food Multihead Weigher 4

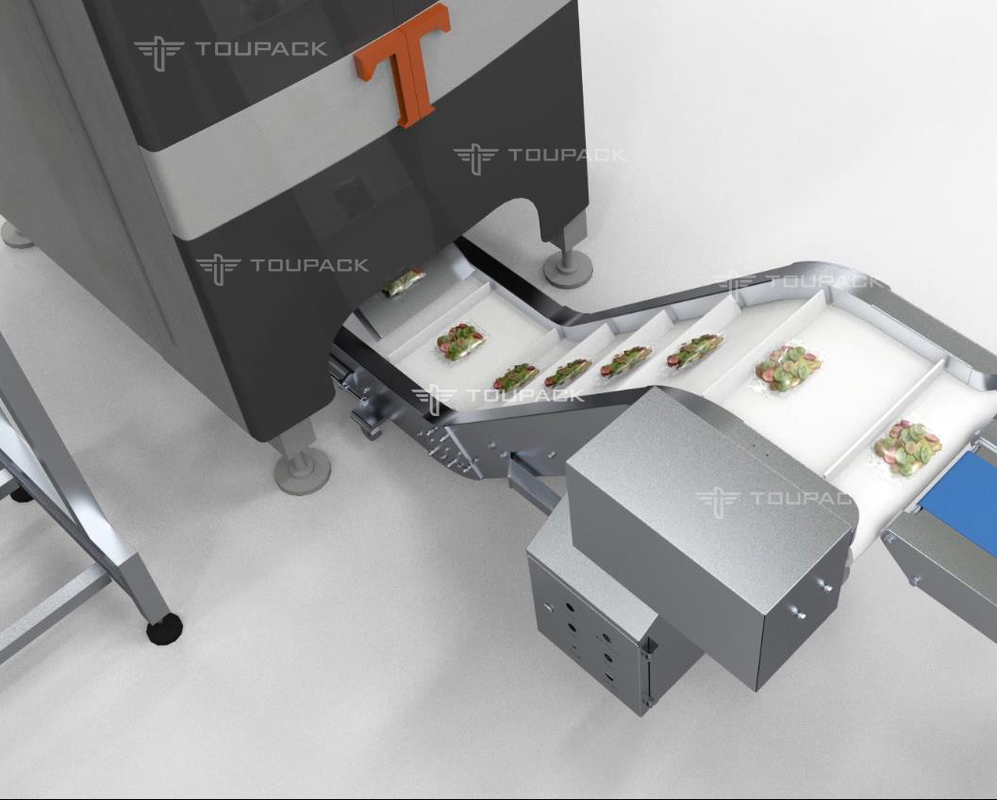

Mixed Packaging System Dried Fruit Vffs Packaging Machine Snack Food Multihead Weigher 5

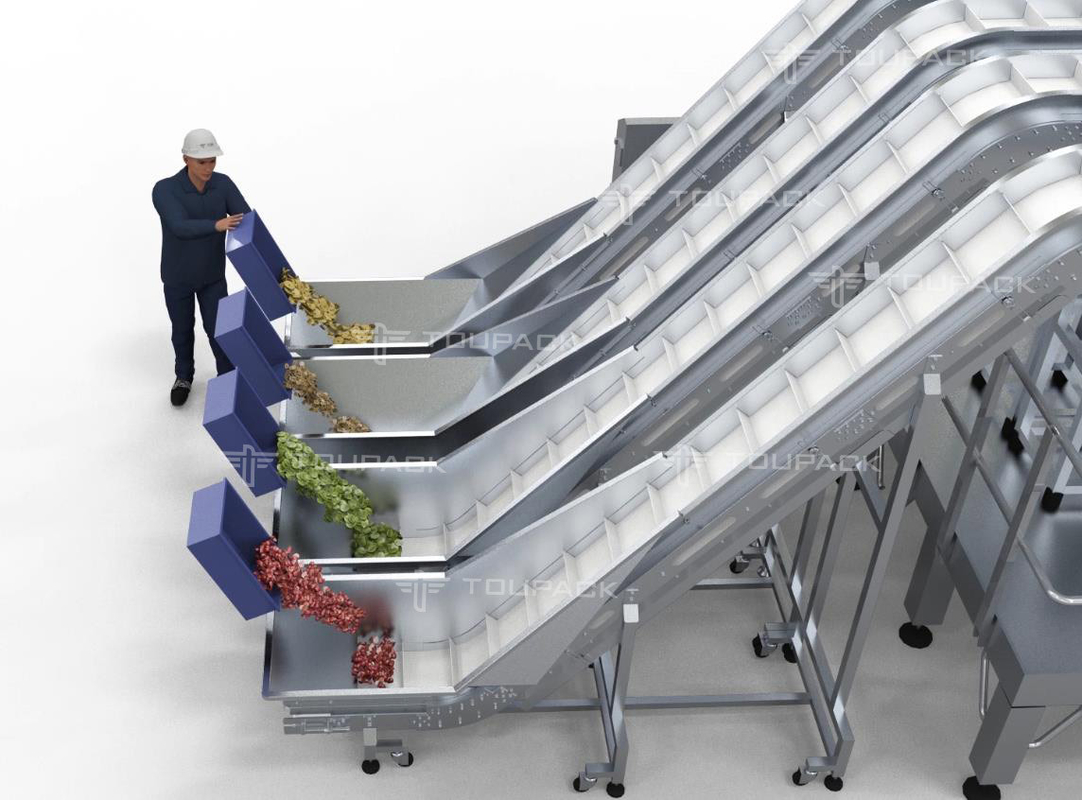

Mixed Packaging System Dried Fruit Vffs Packaging Machine Snack Food Multihead Weigher 6

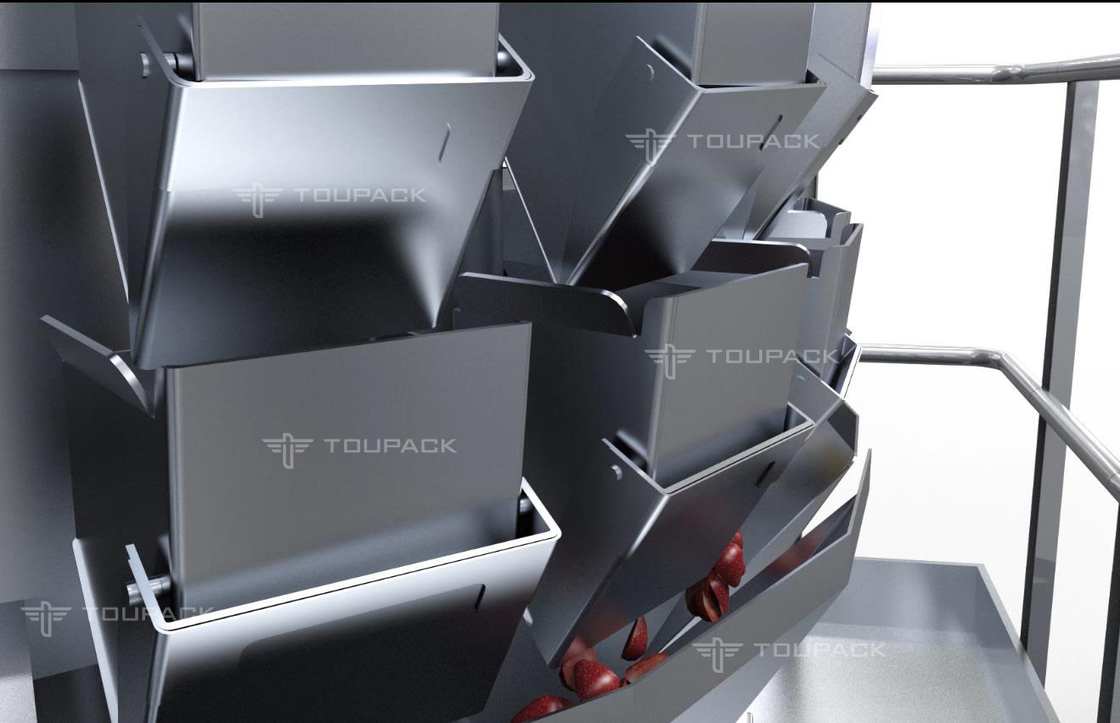

Mixed Packaging System Dried Fruit Vffs Packaging Machine Snack Food Multihead Weigher 7













Automatic High-speed Vertical Packiaging Machine Specifications



Model

VG520

Packaging Speed

30-150 BPM

Bag Size

80-500mm(L)*60-250mm(W)

Bag Type

Pillow bag,stand-up bag,hole punching bag

Max.Film Width

520mm

Film Thickness

0.05-0.15m

Air Consumption

0.8Mps 0.6m³/min

Power Supply

380V 50Hz,6.5kW

Machine Size

1,955(L)*1,660(W)*1,800(H)mm

Machine Weight

1200kg







Automatic High-speed Vertical Packiaging Machine



1.The whole machine 4 servo motion system works. It reaches Max. Speed 150 bags per min when single machine running, and when working with other equipment, the speed is 120 bags per min if the material with good flowability and weight less than 200g like snack, beans, candy.



2. Omron PLC control operation.



3. The Ethernet touch screen can be operated and monitored remotely when there is a network.



4. Continuous stretch film, movement flying cutting, sealing.









Solution:





According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.







OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as nameplate, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
-Wrap the protective
-Packen in wooden cases


Shipping:
- International express such as DHL / FEDEX / UPS / TNT, etc
- By sea



Standard export port:
Zhongshan Port
