Place of Origin:
China
Brand Name:
TOUPACK
Certification:
CE,ISO9001
Waterproof Automatic Mozzarella Shredded Cheese Packing Machine With Multihead Weigher Oatmeal Filling Machine

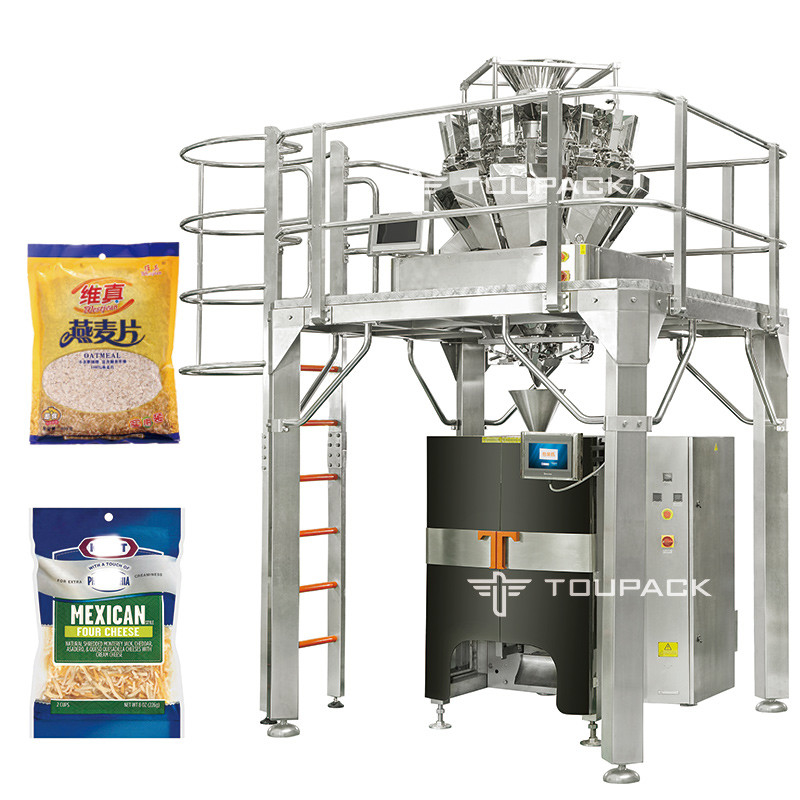

Solution: Supporting Platform + 14 Head Multihead Weigher + High-speed Vertical PAckiaging Machine

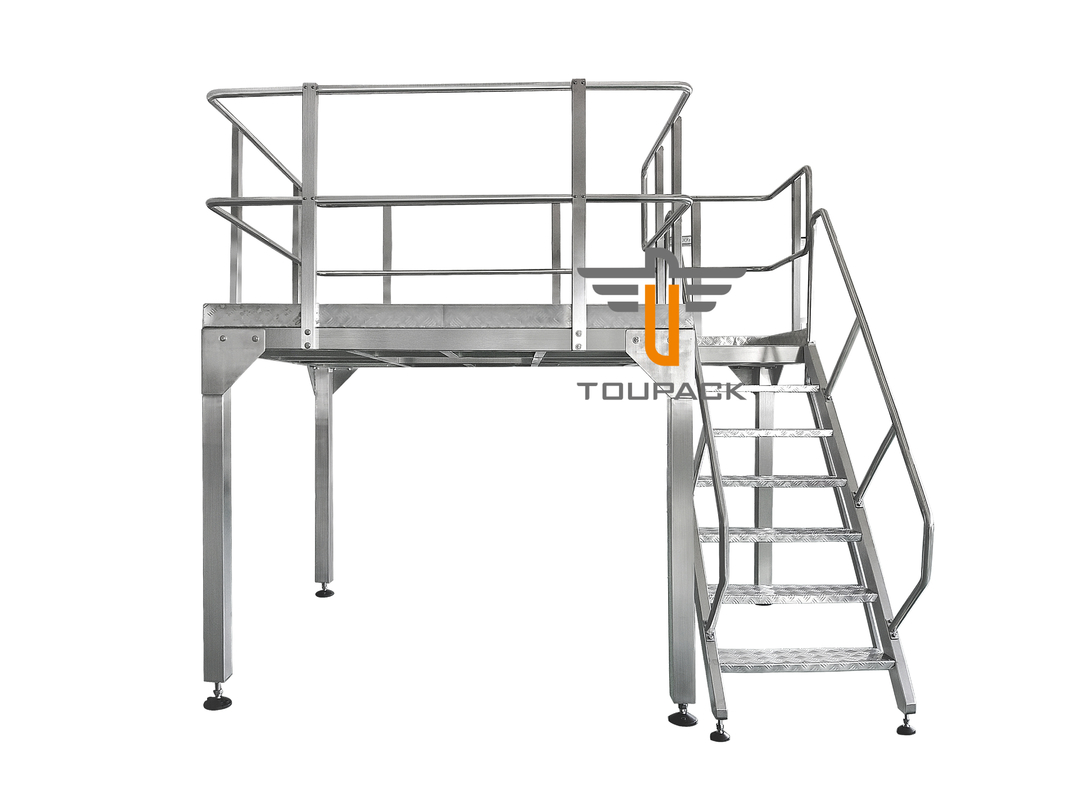

——Supporting Platform

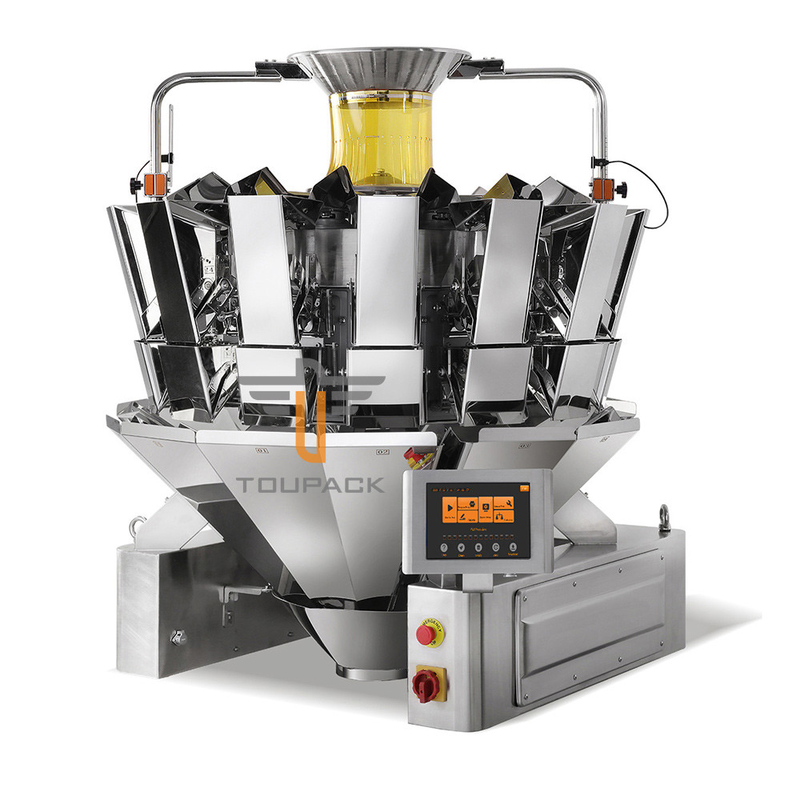

——14 Head Multihead Weigher

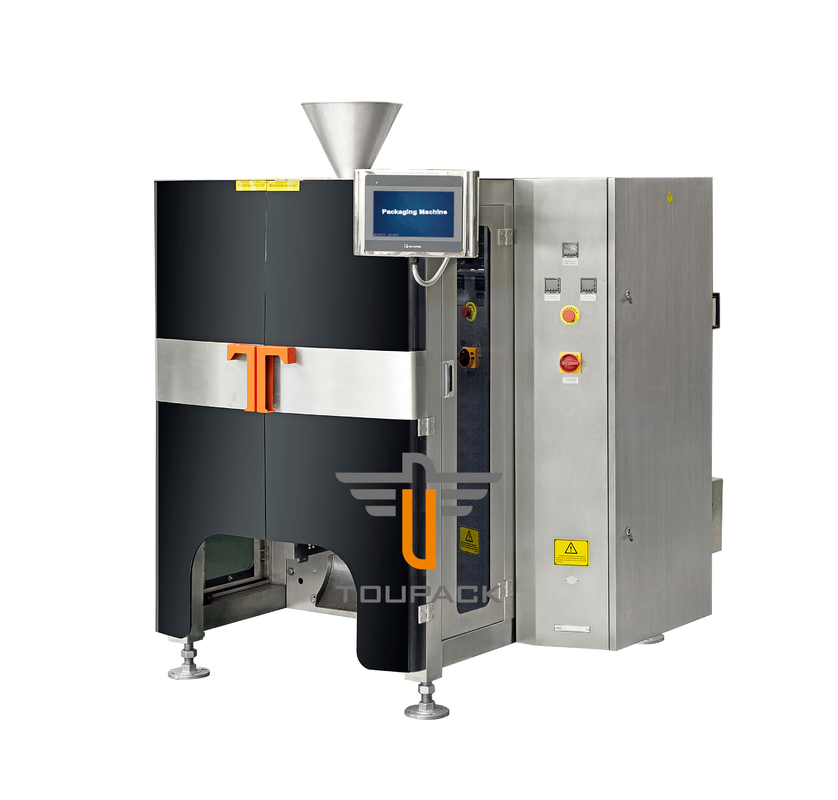

—— High-speed Vertical PAckiaging Machine
High-speed Vertical PAckiaging Machine Specifications
Model |
VG520 |
Packaging Speed |
30-150 BPM |
Bag Size |
80-500mm(L)*60-250mm(W) |
Bag Type |
Pillow bag,stand-up bag,hole punching bag |
Max.Film Width |
520mm |
Film Thickness |
0.05-0.15m |
Air Consumption |
0.8Mps 0.6m³/min |
Power Supply |
380V 50Hz,6.5kW |
High-speed Vertical PAckiaging Machine Technical Parameters
1. The whole machine 4 servo motion system works. It reaches Max. Speed 150 bags per min when single machine running, and when working with other equipment, the speed is 120 bags per min if the material with good flowability and weight less than 200g like snack, beans, candy.
2. Omron PLC control operation.
3. The Ethernet touch screen can be operated and monitored remotely when there is a network.
4. Continuous stretch film, movement flying cutting, sealing.
5. Longitudinal sealing continuous endless belt heat sealing with pre-heating function, effectively guaranteeing the sealing effect then can save packaging film.
6.The film is drawn in vacuum to ensure that the belt will not slip and ensure that the length of the production bag is consistent.
Solution:
According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as nameplate, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
-Wrap the protective
-Packen in wooden cases
Shipping:
- International express such as DHL / FEDEX / UPS / TNT, etc
- By sea
Standard export port:
Zhongshan Port
