Name: Mini Industrial Food PVC Belt Conveyor System Machine For Workshop
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: LS-WD90M750-01
Price: 18,500.00 USD
Availability: InStock

Home > products > Fruit And Vegetable Packaging Machine >

Mini Industrial Food PVC Belt Conveyor System Machine For Workshop

Industrial Food PVC Belt Conveyor System

Workshop PVC Belt Conveyor System

Mobile Rubber PVC Belt Conveyor System

Place of Origin:

China

Brand Name:

TOUPACK

Certification:

CE,ISO9001

Model Number:

LS-WD90M750-01

Request A Quote

Product Details

Material:

Stainless Steel 304/316

Customized Support:

OEM，ODM

Function:

Conveying Product

Parameter Adjustment:

Auto Learning/Manual Setting

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Wooden case

Delivery Time

According to the actual situation

Payment Terms

L/C, T/T

Mesh Bag Packing Machine Onion Mesh Bags Clipping Machine Fruits & Vegetables Mesh Bagging Machine

Get Best Price

video

300WPM 1000g Fruit And Vegetable Packaging Machine Weight Sorting Machine

Get Best Price

video

5.0L Fruit And Vegetable Packaging Machine Automatic Vffs Multihead Weigher Salad Bagging Machine

Get Best Price

video

SS316 Weighing Filling Machine Vertical Lettuce Watercress 500g Baby Carrot Weighing Packing Detecting Machine

Get Best Price

Contact Now

Product Description

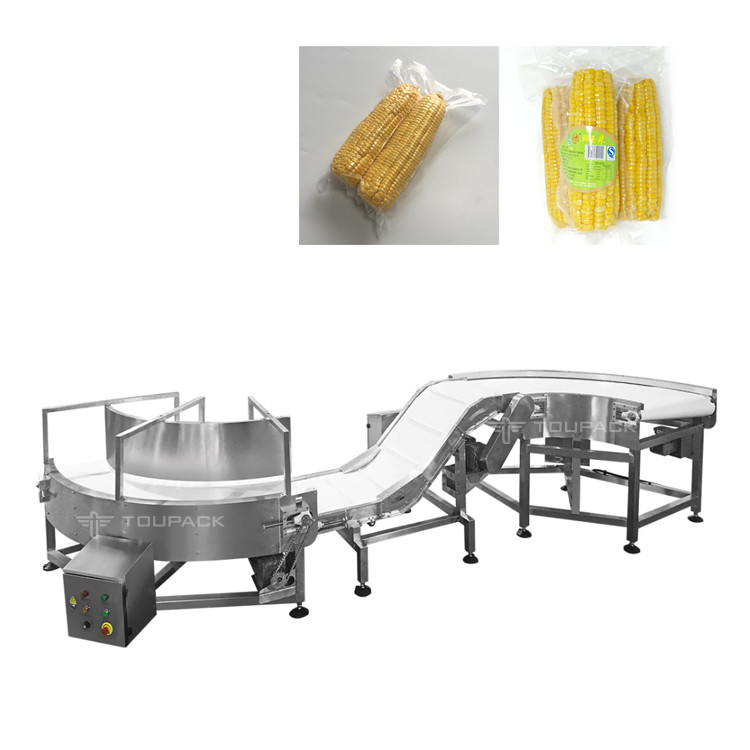

Customize Manufacturer Mobile Rubber Mini Industrial Food PVC Belt Conveyor Systems Machine For Workshop

Application

This product is suitable for candy, pistachios, peanuts, nuts, almonds, melon seeds, jelly, raisins and other packaged leisure food; frozen, pet food, puffed food, large shell nuts, hardware, plastic pellets and other granular, flake, strip, round and other packaged materials turning conveyor. Turning conveyor is in the material long-distance conveying needs to change the material conveying direction of the demand for equipment.

For bagged materials or bulk materials he is more conducive to the material in the conveying process to turn in an orderly manner. Effectively solve the turning roller turning chain due to the turning process roller gap changes or chain plate gap changes caused by the clip material injury material and other problems in the material conveying process through the guard plate or guardrail and other auxiliary equipment to realize non-destructive conveying.

Technical specification

Product Name	Variable Direction Conveyor
Model	LS-WD90M750-01
Conveying width	750mm
Turning angle	90°
Conveyor power	250W
Belt conveying speed	≥20m/min
voltage	220V
Package size	1450(L)1350(W)1050(H)
Machine Weight	155
Net Weight	180

Product Feature

1. It can change the structure according to actual needs to achieve 30 degrees, 45 degrees, 90 degrees and even 180 degrees of steering conveying function.

2. Different structures can be used to manually or automatically adjust the transmission speed;

3.304 Stainless steel frame, food-grade PVC conveyor belt;

4. Can change the direction of transmission;

5. Simple structure, simple operation;

6. Low failure rate, easy maintenance;

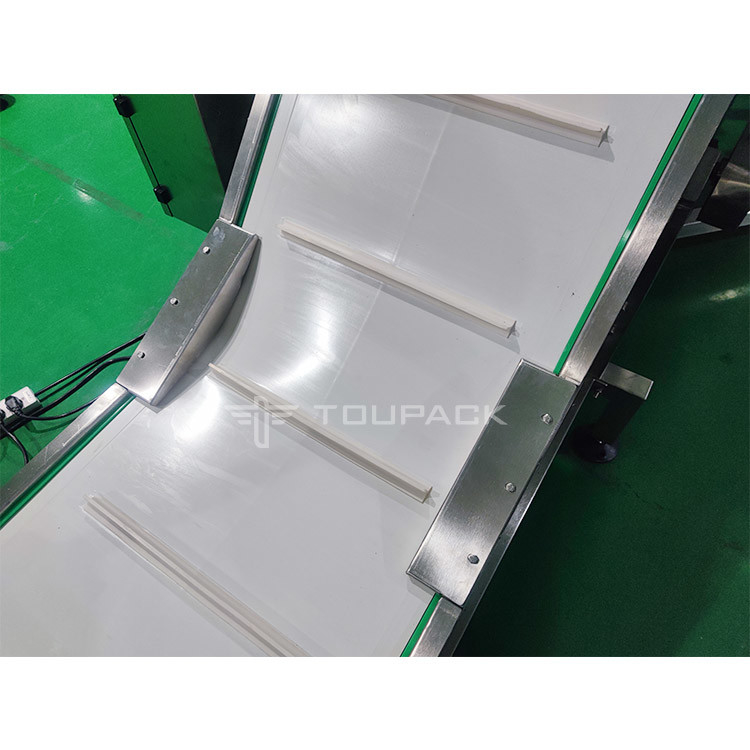

Mini Industrial Food PVC Belt Conveyor System Machine For Workshop 2

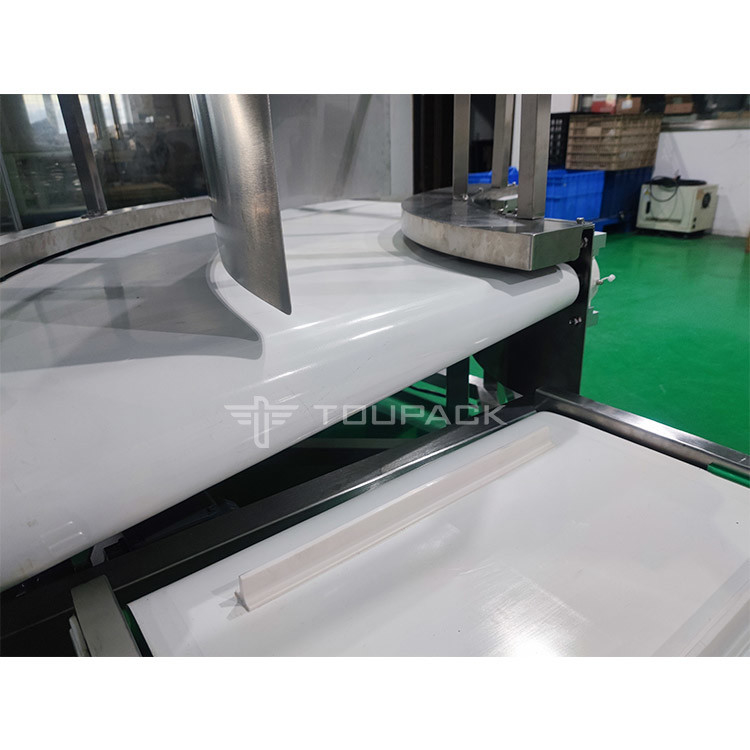

Mini Industrial Food PVC Belt Conveyor System Machine For Workshop 3

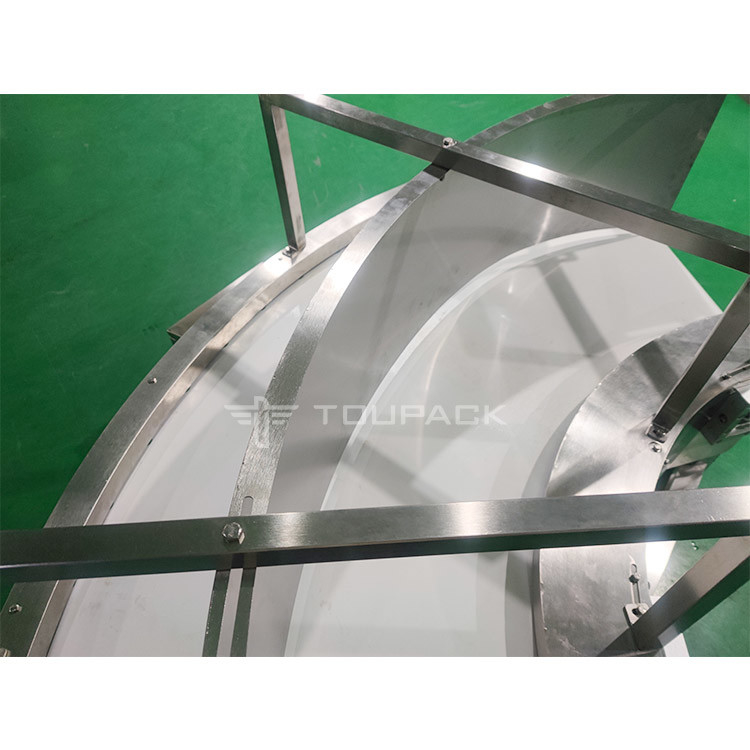

Mini Industrial Food PVC Belt Conveyor System Machine For Workshop 4
