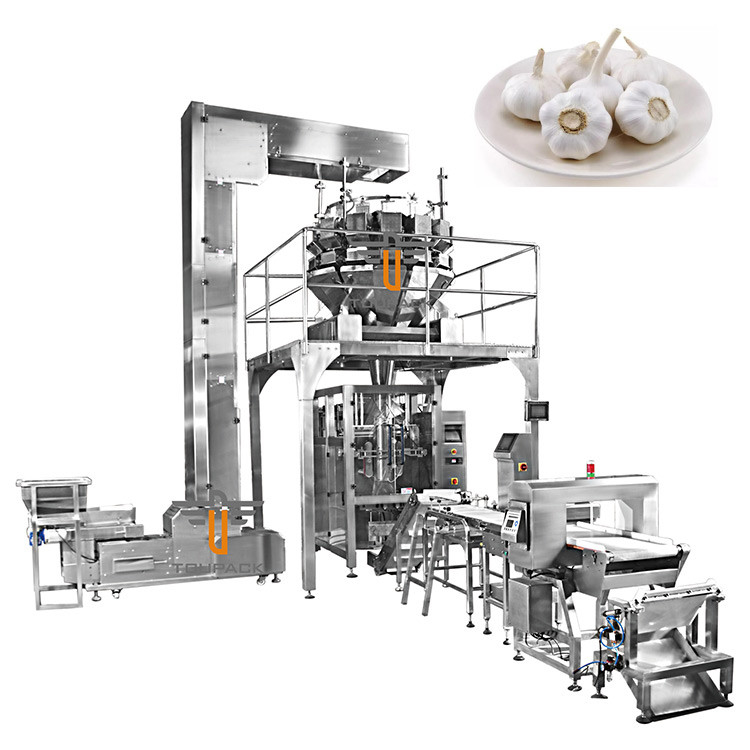

High Speed Automatic Weighing Pouch Bean Sprout Coriander Potato Garlic Baby Carrot Packing Machine
Application
This machine is suitable for the packaging of various granular materials in the food, chemical,
daily chemical and other industries, such as: dried fruit, nuts, beans, seeds, grains, potato chips,
candy, onion rings, frozen food, pet food, etc.
Main Features
1. Fully automatic operation, bag making, measuring, filling, sealing, coding and bag cutting are completed at one time.
2. Imported PLC computer control system, color touch screen, easy to operate, intuitive and efficient.
3. Servo film transport system, imported color code sensor, accurate positioning, excellent overall performance and beautiful packaging.
4. A variety of automatic alarm protection functions to minimize losser.
5. Bag-making equipment can be changed according to specific requirement of customers and products.
6. Optional English or other languages screen display, easy and simple operation. Both packaging
speed and bag length can be set with one click.
Specifications
|
Model
|
TY-ZHY142M(P)16-01-11
|
|
Max. Weighing (one hopper)
|
10-1500g
|
|
Accuracy
|
x (0.5)
|
|
Max. Scale Interval
|
0.1g
|
|
Max. Speed
|
110 BPM
|
|
Hopper Volume
|
1.6L
|
|
Control System
|
MCU / PLC
|
|
HMI
|
7’’ / 10’’ color touch screen
|
|
Power Supply
|
220V 1.5KW 50/60Hz
|
|
Packing Dimension
|
1140mm(L)*1100mm(W)*1857mm(H)
|
|
Package weight
|
410kg
|
|
Machine weight
|
320kg
|
According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.
