Place of Origin:
China
Brand Name:
toupack
Certification:
CE,ISO9001
Model Number:
TY-ZX041M30-02-11

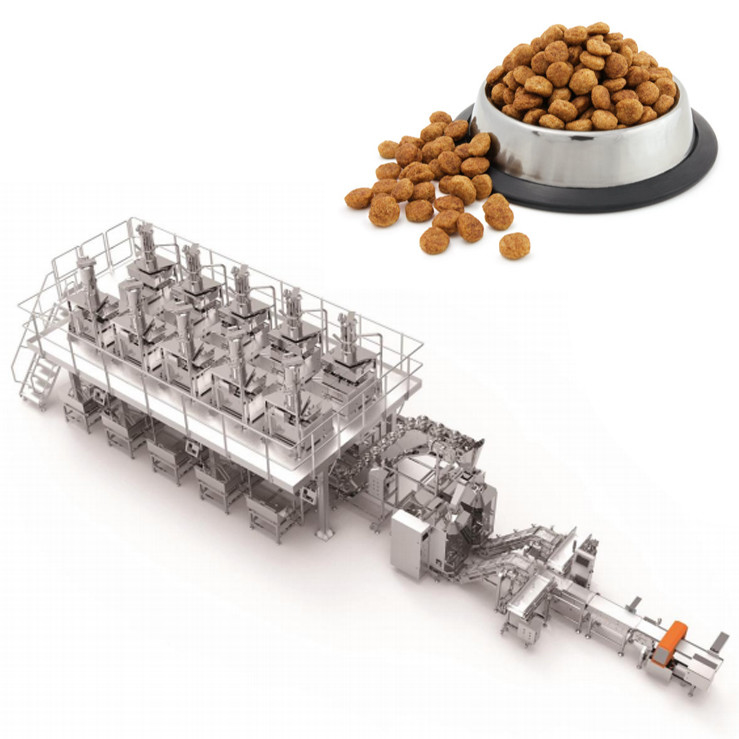

Variable Weighing And Packaging Systemfor Pet Food With Multiple Ingredients Dog Food Packaging Machine
Specifications
|
Model |
TY-ZX041M30-02-11 |
|
Max. Weighing (one hopper) |
20g-2000g |
|
Accuracy |
x (0.5) |
|
Max. Scale Interval |
0.1g |
|
Max. Speed |
40 BPM |
|
Hopper Volume |
3.0L |
|
Control System |
MCU |
|
HMI |
7’’ / 10”color touch screen |
|
Power Supply |
AC220V / 110V ±10% 50HZ/60HZ, 1.0KW |
|
Packing Dimension |
1510mm(L)*1020mm(W)*950mm(H) |
|
Net Weight |
163kg |
|
Package weight |
230kg |

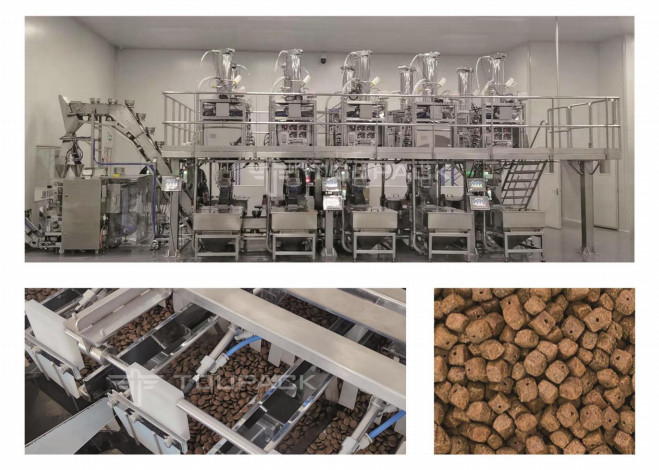

Solution units
① Supporting platform
② Vacuum feeder
③ Material delivery pipeline
④ 4 head 3.0L linear weigher
⑤ Storage bin
⑥ Bowl-type elevator
⑦ Packaging machine
⑧ Finished product conveyor9 Horizontal finished product conveyor
⑩ CW300 Check weigher Metal detector
System features
The equipment is tailored for weighing and packaging pet food, and can be proportioned according to the nutritional needs of pets and automatically produce. It has a very humanized design, saving labor costs and improving production efficiency.
System function realization: Client applet APP receiving orders→ERP order disassembly and sorting→upper and lower computerdata exchange → central integrated control (including material mixing):01. According to the formula, it can choose 10 independent automatic feeding weighing system.02. Two independent bag-making systems can be selected according to the bag type, including real-time printing of product information.03. Self-adjusting weight inspection system according to product weight.04. Metal detection and elimination system. After receiving the order, the system automatically arranges the order production, real-time monitoring in the LAN, digital production and digital management, to make all production steps clear and intelligent.
