Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Certification:
CE
Model Number:
SUS 304 Screw Conveyor
Type | screw blade |
Silo volume | 100L/200L |
Material | stainless steel 304 |
Power supply | 220/110V |
Control system | MCU/PLC |
Certification | CE/ISO |

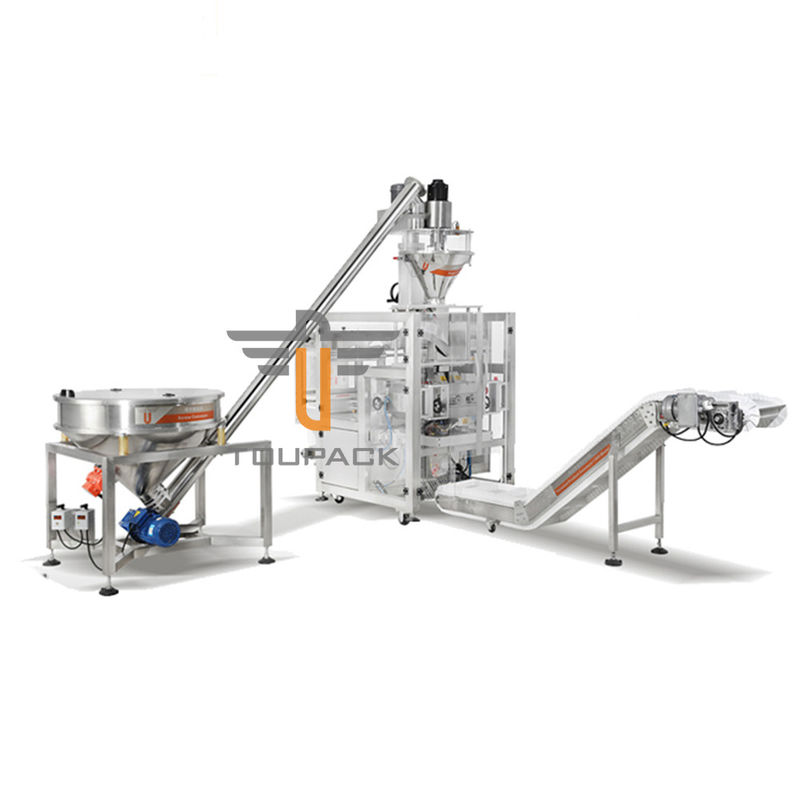

Professional filling and sealing solution designed for the food industry with superior leak-proof performance.
Ideal for powder product filling into bags or bottles across food, medical, chemical, and plastic industries.
Specification | Details |
---|---|
Body Material | SUS304 |
Conveying Type | Screw blade |
Power Supply | Single/3 phase 220V/380V 50HZ/60HZ |
Power Consumption | 0.61KW / 0.81KW / 1.56KW / 2.26KW / 3.06KW / 4.06KW |
Silo Volume | 100L / 200L |
Conveying Speed | 2m³/h, 3m³/h, 5m³/h, 7m³/h, 8m³/h, 12m³/h |
Conveying Angle | Standard: 45° or per requirement (from 30°~60°) |
Conveyor Pipe Diameter | 102mm, 114mm, 141mm, 159mm, 168mm, 219mm |
Conveying Height | Standard: 1,850mm or per requirement (from 1,000 to 5,000mm) |
Machine Dimension | Custom-made per requirement |
