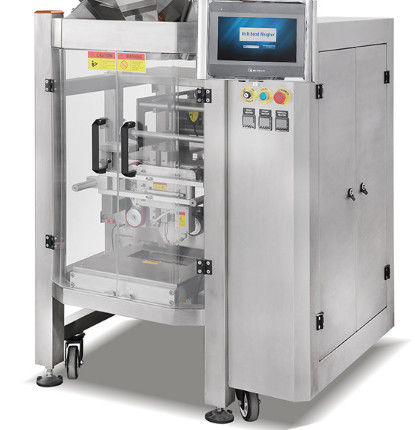

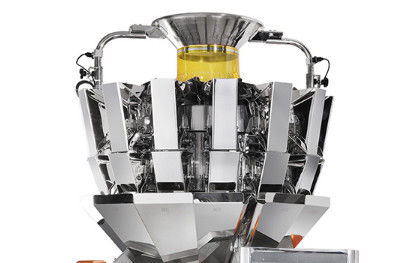

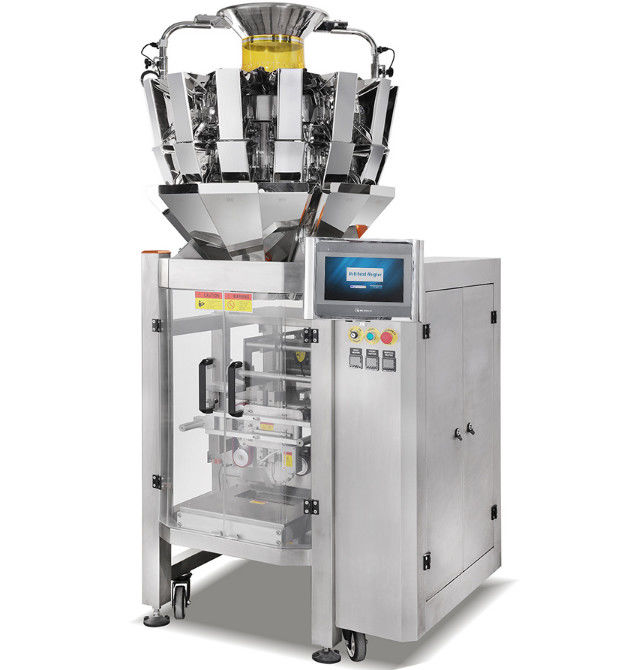

Bag Sealing Packaging Machine Bag Multihead Weigher Filling Machine for Food industry
Application & Features:
1. Compact and space saving design, suitable for limited workshop height within 3,000mm.
2. Cost saving
3. Golden ratio design to make the machine more steady and accurate.
4. Integrated weighing and packaging system, controlled by one HMI for easy operation.
5. Widely used on various kinds of products and customized solution per customer’s request.
Main Configuration:
1. Body frame: SUS304
2. Max film width: 420mm.
3. Max speed: 100 bpm (empty bags).
4. Packaging material: standard heat sealable composite film.
5. Main electrical configuration of packaging machine:
-- MITSUBISHI PLC
-- 2 sets of Panasonic servo system
-- AIRTAC pneumatic parts
-- Banner photoelectric sensor
-- Pneumatic hot stamp printer (NANYUN)
6. One set of former free of charge (film width: 420mm, double clip seal)
7. 10” touch screen
Specifications:
| Model |
TY-1A-YZ-M1008-101
TY-1A-YZ-M1016-101
|
TY-1A-YZ-M1408-101
TY-1A-YZ-M1416-101
|
| Max. Weighing (one hopper) |
300g |
300g |
| Weighing Accuracy |
x (0.5) |
x (0.5) |
| Min. Scale Interval |
0.1g |
0.1g |
| Hopper Q’ty |
10 |
14 |
| Hopper Volume |
0.8L / 1.6L |
0.8L / 1.6L |
| Max. Weighing Speed |
60 bpm |
80 bpm |
| Max. Film Width |
420mm |
420mm |
| Packaging Material |
standard heat sealable composite film |
standard heat sealable composite film |
| Packing Speed |
80 bpm (empty bags) |
100 bpm (empty bags) |
| Power Supply |
AC220V ±10% 50HZ/60HZ, 2.5KW |
AC220V ±10% 50HZ/60HZ, 3KW |
| Machine Dimension |
1,457(L)*1,080(W)*2,313(H)mm (0.8L)
1,700(L)*1,211(W)*2,415(H)mm (1.6L)
|
1457(L)×1080(W)×2,391(H)mm (0.8L)
1,700(L)*1,211(W)*2,515(H)mm (1.6L)
|
| Packing Dimension |
1,700(L)*1,335(W)*2,300(H)mm (0.8L)
1,750(L)*1,330(W)*2,440(H)mm (1.6L)
|
1700(L)*1335(W)*2400(H)mm(0.8L)
1,750(L)*1,330(W)*2,540(H)mm (1.6L)
|
| Machine Weight |
635kg (0.8L); 685kg (1.6L) |
655kg (0.8L); 735kg (1.6L) |
| Packing Weight |
755kg (0.8L); 805kg (1.6L) |
805kg (0.8L); 855kg (1.6L) |
Details:
About us:
GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD.
2002 to 2009,Founder of the company started his business by providing processing support, designing and manufacturing automation production lines to ABB, Siemens and ThyssenKrupp which are among Fortune 500 companies.Since 2009, TOUPACK has been focusing on R&D, fabrication, marketing and sales of intelligent weighing and packaging machines as well as various kinds of automated control equipment. Being a high-tech and innovative company, TO-U has worked as a business partner with Guangdong Meiweixian (Zhongshan),Anhui Qiaqia (Hefei) and many other well-known packaging machinery and food companies by supplying them with automated and intelligent weighing and packaging solutions. To better serve our customers, TO-U has set up its after-sales service center in California, USA, wholly-owned substitute Hefei TO-U Intelligent Equipment Co., Ltd. in East China and offices in Sichuan and Shanghai.with over 10 years of industry experience, professional weighing packaging solutions, to provide customers with non-standard customization, system integration services.
Company & Factory Pictures:
Why choose us:
1.Over 12 years weighing and packing machine design & manufacturing experience
2.Over 80 countries customers choices
3.Professional team with passion and diligence
4.All-in-one stand service.
