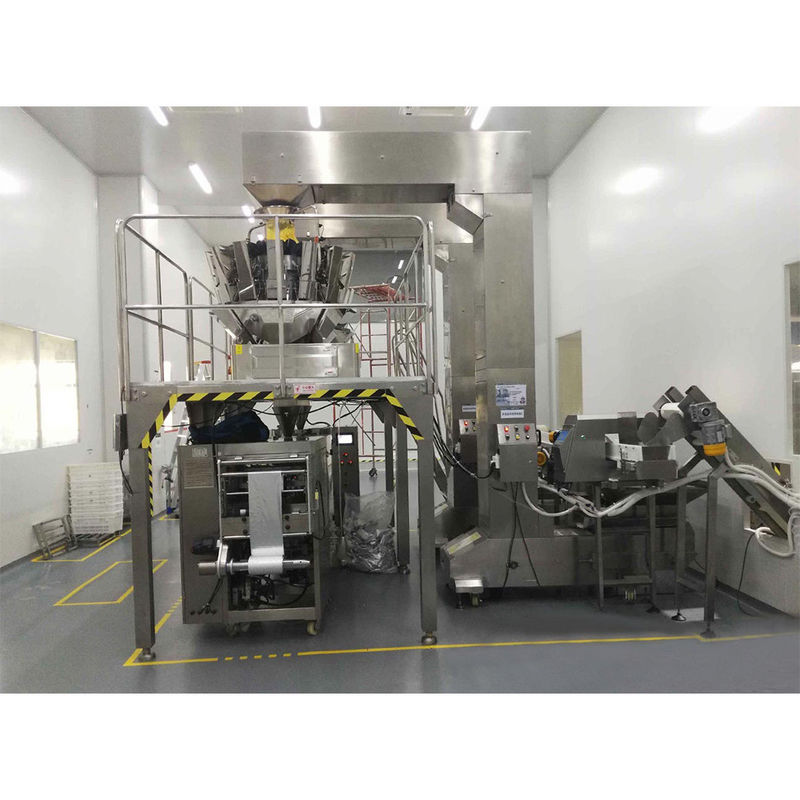

Easy To Operate TOUPACK 50Bpm Multi Head Packing Machine For Flat Bag

Easy To Operate TOUPACK 50Bpm Multi Head Packing Machine For Flat Bag

50Bpm multi head packing machine

TOUPACK multi head packing machine

TOUPACK automatic granule packing machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Model Number:

TYA-CW90 / CW120 / CW220

Contact Us
Request A Quote
Easy To Operate TOUPACK 50Bpm Multi Head Packing Machine For Flat Bag
Product Details
Packaging Speed::
30-50 Bpm
Bag Size:
100-160(L)*100-230(W)mm
Sealing Type:
Reticulate Pattern Sealing; Double Zipper Sealing
Bag Type:
Flat Bag, Stand-up Bag, Zipper Bag
Air Consumption:
5-8kgf/cm²; 0.4m³/min
Net Weight:
1600kg
Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiable
Packaging Details
Pollywood case
Delivery Time
3 - 30 days after payment arranged
Payment Terms
L/C, D/P, T/T
Supply Ability
100sets/month
RELATED PRODUCTS
Good price 14 Head Combination Weigher SS 10-500g Fresh Meat Chicken Leg Auto Weighing Screwing Feeding System online video

14 Head Combination Weigher SS 10-500g Fresh Meat Chicken Leg Auto Weighing Screwing Feeding System

Get Best Price
Good price Screw 1.0L 1.5L Weigher Packing Machine Dimple Plate Hopper 14 Head For Chicken Breast online video

Screw 1.0L 1.5L Weigher Packing Machine Dimple Plate Hopper 14 Head For Chicken Breast

Get Best Price
Good price 2.5KW 0.04-0.08mm Multihead Weigher Packing Machine For Film Thickness Measurement online video

2.5KW 0.04-0.08mm Multihead Weigher Packing Machine For Film Thickness Measurement

Get Best Price
Good price Bulk Snack 10 Head Multihead Weigher Red Date Weighing And Packaging Machine online video

Bulk Snack 10 Head Multihead Weigher Red Date Weighing And Packaging Machine

Get Best Price
Contact Us
Contact Now
Product Description
Easy To Operate TOUPACK 50Bpm Multi Head Packing Machine For Flat Bag
Product Overview

Solid Granule Food Bag Packaging Premade Pouch Packing Machine For Candy Snacks

This premade pouch packing machine is suitable for various bag types including pillow bags, 3-side, 4-side and 8-side quad seal bags (box pouch), kraft bags, and spout bags.

Key Features
Easy operation with advanced Japan Mitsubishi PLC, touch screen interface, and user-friendly electric control system
Automatic error detection for pouch issues, filling errors, and sealing problems to prevent material waste
Safety features including abnormal air pressure shutdown and heater disconnection alarm
Electrical motor adjustment for bag width customization
Glass safety door with automatic shutdown when opened for operator protection and dust prevention
Low packing material loss with high-quality sealing for improved product presentation
Compatible with various feeders for solid, liquid, thick liquid, and powder products
Wide bag material compatibility including multi-layer compound, monolayer PE, PP, and more
Technical Specifications
Attribute TY-RP200 TY-RVP200
Packaging Speed 30-50 bpm 50 bpm
Bag Size 100-160(L)*100-230(W)mm 100-180(L)*120(W)mm
Sealing Type Reticulate pattern sealing; double zipper sealing
Power Supply 3 phase 380V 50HZ, 3KW 3 phase 380V 50HZ, 5KW
Air Consumption 5-8kgf/cm²; 0.4m³/min 0.6m³/min
Net Weight 1,600kg 1,800kg
Machine Dimension 1,550(L)*1,350(W)*1,400(H)mm 1,480(L)*1,320(W)*1,510(H)mm
Optional Features
Feature Description
Protection Shield Glass shield for safety
Product Settler Compacts filled product before sealing
Date Coder Ribbon, embossing, or inkjet type
Gas Charging Air/nitrogen/CO2 charging before sealing
Vacuuming Device Vacuum after filling before sealing
Zipper Opening Device Opens zipper before filling
Dust Removing Device Cleans filled bags for product cleanliness
Compatible Bag Types
Easy To Operate TOUPACK 50Bpm Multi Head Packing Machine For Flat Bag 0 Easy To Operate TOUPACK 50Bpm Multi Head Packing Machine For Flat Bag 1 Easy To Operate TOUPACK 50Bpm Multi Head Packing Machine For Flat Bag 2
