60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead

60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead

5.0L vegetable salad packaging machine

60WPM vegetable salad packaging machine

5.0L conveyor packing machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TY-1A-YZ-M1008-101 TY-1A-YZ-M1016-101

Contact Us
Request A Quote
60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead
60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead 60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead
Product Details
Product Name:
Snake Food Packing Machine
Body Frame:
SUS304
Hopper Volume:
0.8 L / 1.6 L/ 2.5 L
Max. Speed:
30-80 WPM
Accuracy:
0.1 G
HMI:
7'' / 10'' Color Touch Screen
Control System:
MCU / PLC
Power Supply:
AC220V ±10% 50HZ/60HZ, 2KW
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Pollywood case
Delivery Time
3 -20 days after payment arranged
Payment Terms
L/C, D/P, T/T
Supply Ability
100set/month
RELATED PRODUCTS
Good price ISO 9001 1.5KW Multihead Weigher Packing Machine For Doypack Bag online video

ISO 9001 1.5KW Multihead Weigher Packing Machine For Doypack Bag

Get Best Price
Good price 60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead online video

60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead

Get Best Price
Good price SUS304 Auto Weighing Filling Machine For Granulated And Powdered Products online video

SUS304 Auto Weighing Filling Machine For Granulated And Powdered Products

Get Best Price
Good price Stainless Steel Industrial Use Multihead Weigher Combination Weighing Machine M14L1.6 online video

Stainless Steel Industrial Use Multihead Weigher Combination Weighing Machine M14L1.6

Get Best Price
Contact Us
Contact Now
Product Description

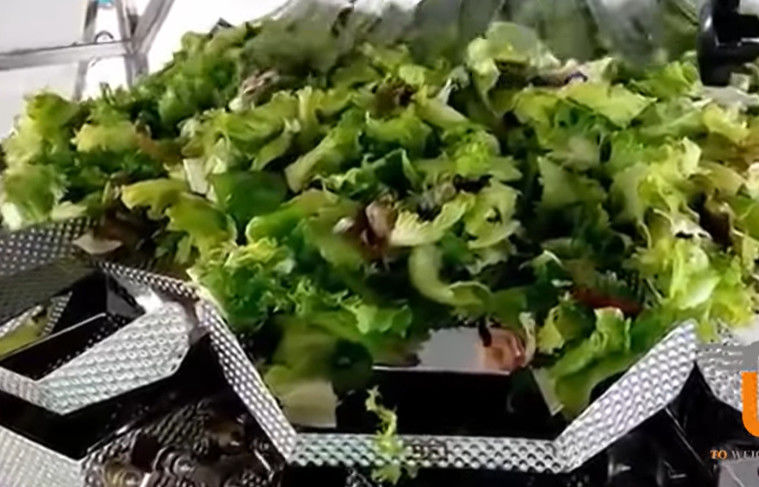

Vegetable Salad And Fruit Salad Multihead Weigher And Packaging Machine





Application:



Applicable for weighing of light or bulky products, such as large-sized nuts, Vegetable Salad And Fruit Salad, etc.





Features:



1. Professional digital weighing module with high precision and good stability

2. Control system: MCU or PLC (optional).

3. Touch screen interface with different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.

4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.

5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.

6. Weighing and counting function to meet diverse needs from customers.

7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.

8. Machine body with SUS304/316 for option and IP65 dust and waterproof design.

9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.

10. Modular design of control system for easy maintenance and cost-saving.





Specifications:



Model TY-A-M14-3；TY-A-P14-3
Max. Weighing (one hopper) 100-5000g
Accuracy x (0.5)
Min. Scale Interval 0.1g
Max. Speed 60 WPM
Hopper Volume 5.0L
Control System MCU / PLC
HMI 7’’ / 10’’ color touch screen
Power Supply AC220V/110V ±10% 50HZ/60HZ, 2KW
Packing Dimension

Machine: 1,530(L)*1,530(W)*1,658(H)mm

Spare parts: 1,480(L)*1,100(W)*1,238(H)mm
Package weight

Machine: 600kg

Spare parts: 330kg





Function:



1.Special load cell with high precision and high standard;
2.Module electric board,and with intelligent multiple sampling stable mode, make weighing higher accurate;
3.Intelligent fault alarm, convenient for maintenance.
4.High speed staggered discharging function, effectively prevent blocking materials;
5.New highly integrated modular design, using CAN bus technology.
6.Modbus industrial standard communication protocol realizes the multihead weigher and packaging machine interface.

Customer-made Case:

Feeding
60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead 0

Elevatoring:
60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead 1

Sealing:
60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead 2

Checking:
60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead 3
