High Stability SUS304 300mm Width X Ray Metal Detector In Food Industry

High Stability SUS304 300mm Width X Ray Metal Detector In Food Industry

300mm Width X Ray Metal Detector

SUS304 X Ray Metal Detector

SUS304 Conveyor metal detector machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TYA-MD3011/ 3015/3018/3021

Contact Us
Request A Quote
Product Details
Material:
SUS304
Power Supply:
220V
Control System:
PLC/MCU
Reject Device::
Flash Light Alarm; Pneumatic Pusher / Sliding (optional)
Detecting Sensitivity (idle Status):
Fe≥Φ0.5~0.8mm SUS304≥Φ1.0~1.5mm
Detected Product Width:
≤300mm
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
wooden case
Delivery Time
15-30 working days
Payment Terms
L/C, T/T
Supply Ability
50 Sets/Month
Product Description
High Stability SUS304 300mm Width X Ray Metal Detector In Food Industry
Key Attributes
Material SUS304
Power supply 220V
Control system PLC/MCU
Reject Device Flash Light Alarm; Pneumatic Pusher / Sliding (optional)
Detecting Sensitivity (idle Status) Fe≥Φ0.5~0.8mm SUS304≥Φ1.0~1.5mm
Detected Product Width ≤300mm
Stainless Steel Belt Conveyor Metal Detector Machine

This high-performance metal detector is specifically designed for the food industry, featuring advanced detection technology and durable SUS304 stainless steel construction.

Advanced Features
  • Hard filling technology provides superior stability and durability
  • Intelligent learning function for automatic parameter setting with simple operation
  • Multiple filtering algorithm with X-R orthogonal decomposition for stronger anti-interference
  • Phase intelligent tracking technology ensures better stability
  • Anti-interference photoelectric isolation drive with remote installation operation panel
  • Adaptable DDS and DSP technology improves detection sensitivity and stability
  • Stores 100 product parameters in ferromagnetic random access memory
  • 304 stainless steel frame and rollers for strength and durability
  • Detects all metal types including Iron, Stainless Steel, Copper, and Aluminum
Technical Characteristics
  • Special conveyor belt minimizes interference sources for smooth operation and optimal sensitivity
  • Stainless steel integrated frame is easy to clean and maintain
  • High-sensitivity sensor effectively shields aluminum film packaging signals while detecting magnetic metal contaminants
  • Multiple rejection options available for different applications
Applications

Ideal for detecting metal contaminants in:

  • Aquatic products, meat and poultry
  • Pickled products, pasta, dried fruits, and vegetables
  • Industrial chemicals, pharmaceuticals
  • Cosmetics and toys
Specifications
Model TYA-MD3011/3015/3018/3021 TYA-MD4011/4015/4018/4021 TYA-MD5018/5023/5028 TYA-MD6028
Body Material SUS304
HMI 7" color touch screen
Detected Product Width ≤300mm ≤400mm ≤500mm ≤600mm
Detected Product Height ≤80~180mm ≤80~180mm ≤150~250mm ≤250mm
Detecting Sensitivity (idle status) Fe≥Φ0.5~0.8mm SUS304≥Φ1.0~1.5mm Fe≥Φ0.7~0.8mm SUS304≥Φ1.2~1.5mm Fe≥Φ0.7~1.2mm SUS304≥Φ1.5~2.0mm Fe≥Φ1.5mm SUS304≥Φ2.0mm
Reject Device flash light alarm; pneumatic pusher / sliding (optional)

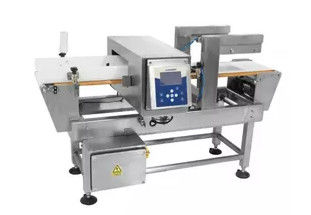

Product Image
High Stability SUS304 300mm Width X Ray Metal Detector In Food Industry 0
