Place of Origin:
Zhongshan, Guangdong China
Brand Name:
TOUPACK
Certification:
CE/ISO
Model Number:
TY-A-M/P14-1
| Attribute | Value |
|---|---|
| Main Frame | Stainless Steel |
| Voltage | AC 220V ±10% 50HZ/60HZ, 1.5KW |
| Driven type | Electric |
| Application | Factory, Workshop |
| After-sales service | Technical Service |
| Condition | New |
| Main Function | Weighing Automatically |

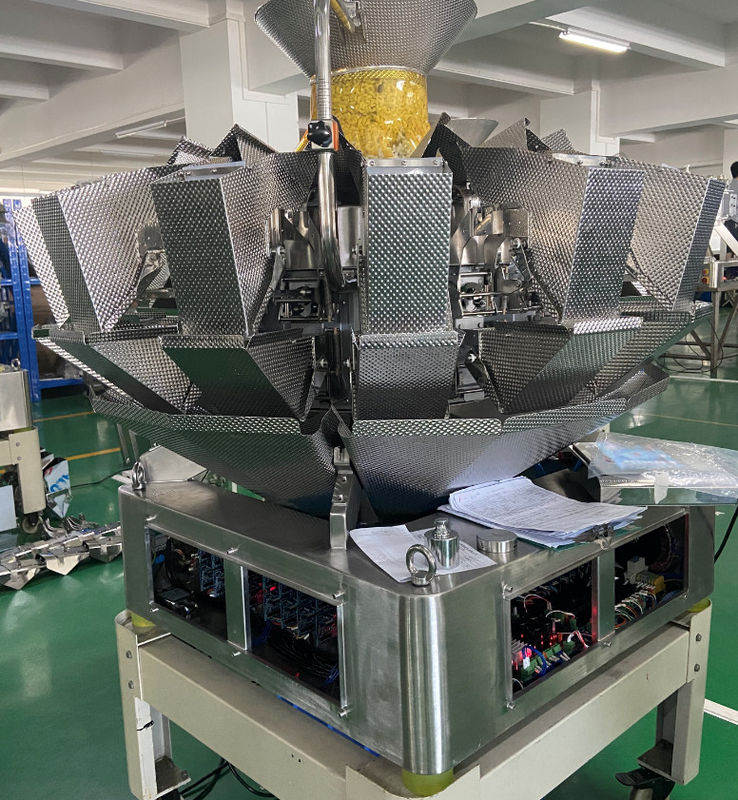

| Machine type | 14 heads Multihead Scales, 0.8L 1.6L 2.5L |
Suitable for various granular products and non-food items including:
| Model | TY-A-M/P14-1 | TY-A-M/P14-2 |
|---|---|---|
| Weighing Range | 5-200g | 20-1500g |
| Accuracy | x(0.5) | x(0.5) |
| Min. Scale Interval | 0.1g | 0.1g |
| Max. Speed | 120 P/M | 120 P/M |
| Hopper Volume | 0.8L | 1.6L/2.5L |
| Control System | MCU/PLC | MCU/PLC |
| HMI | 7''/10'' Touch screen | 7''/10'' Touch screen |
| Power Supply | AC220V ±10% 50HZ/60HZ, 1.5KW | AC220V ±10% 50HZ/60HZ, 1.5KW |
| Packing Dimension | 1,370*1,060*1,105mm (L*W*H) | 1140*1140*1853 (L*W*H) |
| Gross Weight | 240KGS | 500KGS |
To provide the optimal solution, we need to know:
Our strength lies in providing complete customized integration systems including weighing, packaging, conveying, and detecting equipment - all from a single supplier for your convenience.
