Name: 14 Mutihead Weigher VFFS Packaging Machine Bowl Type Elevator For Chocolate Bean Frozen Fruits
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TY-1A-YZ-M, TY-VFFS420,TY-WT
Price: 18,500.00 USD
Availability: InStock

Home > Products > Multihead Weigher Packing Machine >

14 Mutihead Weigher VFFS Packaging Machine Bowl Type Elevator For Chocolate Bean Frozen Fruits

14 Mutihead Weigher VFFS Packaging Machine

SUS304 VFFS Packaging Machine

100bom VFFS Packaging Machine

Place of Origin:

Zhongshan, Guangdong China

Brand Name:

TOUPACK

Certification:

CE,ISO

Model Number:

TY-1A-YZ-M, TY-VFFS420,TY-WT

Request A Quote

Product Details

Type:

Multi-Function Packaging Machine

Automatic Grade:

Automatic

Driven Type:

Electric

Packaging Type:

Film

After-sales Service Provided:

Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation

Condition:

NEW

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Wooden Case

Delivery Time

15-30 Working Days

Payment Terms

L/C, T/T

Supply Ability

50 Per Month

Wet Pet Food And Dry Pet Food Multihead Weigher Packing Machine Dog Cat Food Weighing 120g 240g 400g 1kg Pouch Packing Machine

Get Best Price

Video

14 Head Multihead Weigher Pet Packing Machine Fish Puppy Dog Cat Food Weighing Plant 120g 240g 400g 1kg Ziplock Packing Machine

Get Best Price

Video

Shredded Beets Weighing And Filling Systems Fresh Meat 14 Head Screw Feeding Multihead Weigher

Get Best Price

Video

Customized Size Stainless Steel Bowl Z Shape Conveyor For Food Dumpling Meat Ball Belt Conveyor

Get Best Price

Contact Now

Product Description

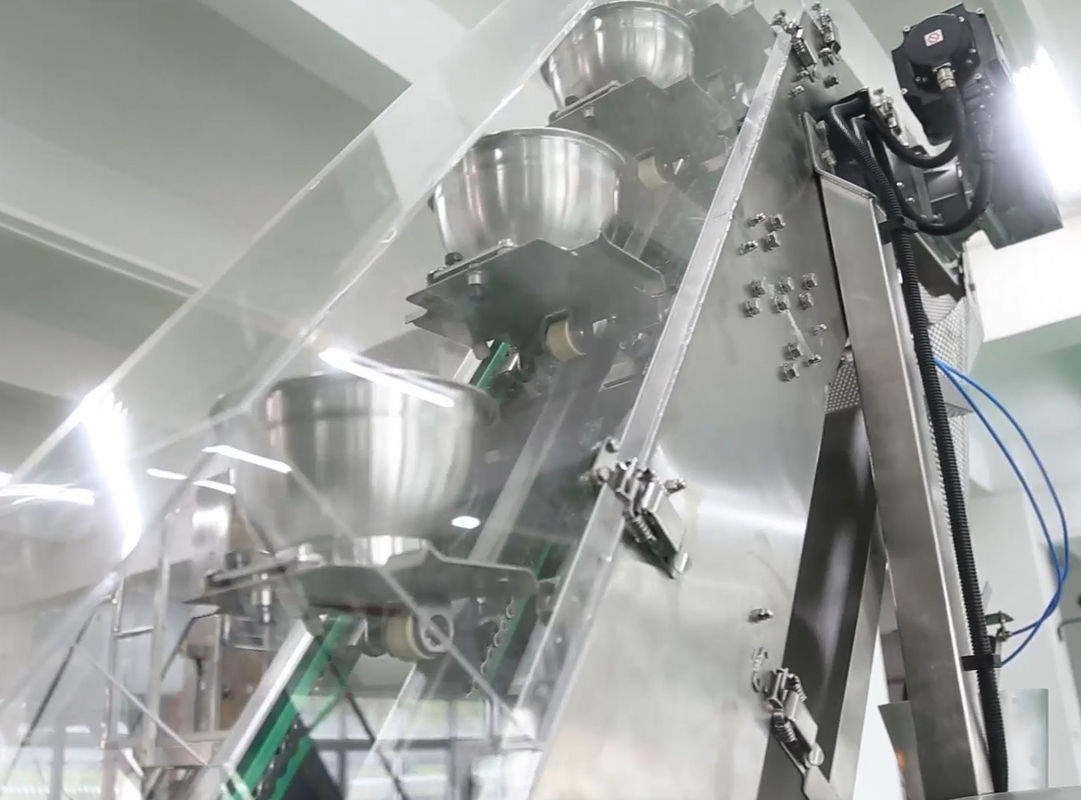

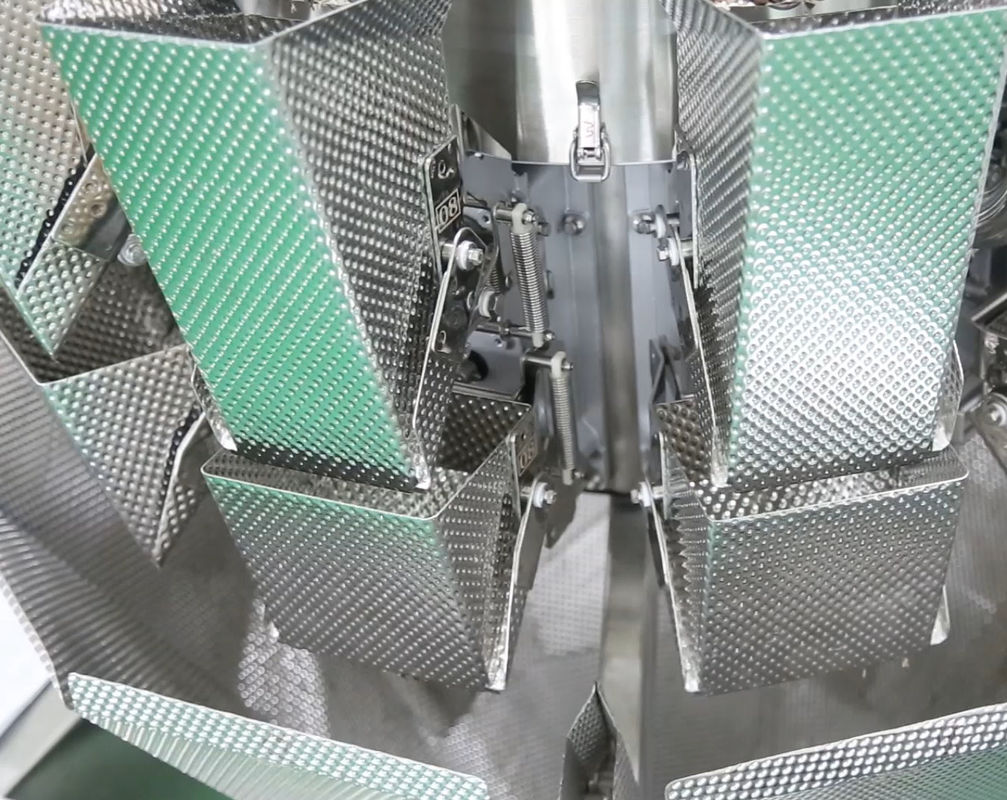

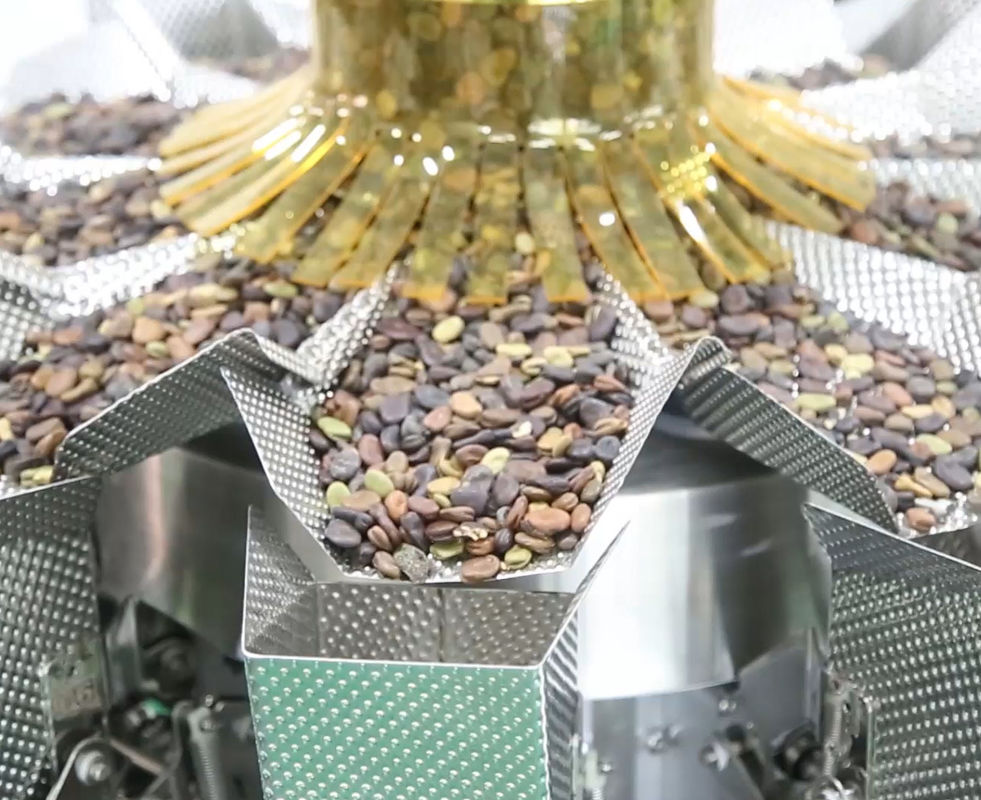

TOUPACK 10/14 Mutihead Weigher VFFS Packaging Machine Bowl-Type Elevator
For Chocolate Bean Frozen Fruits & Food

Application:

1. Granular food: Sugar, candies, grains, rice, pills, chocolate beans, beans, nuts, raisins, walnuts, almonds, dry yeast...
2. Other food: Salad, dry fruits, dry foods, sweet potato, cherry, tomato cherry...
3. Frozen product:Frozen dumplings, frozen meatballs, frozen strawberry, frozen bluberry...
4. Non-food product:Plastics product, chemicals product, hardware, iron products...

Features:

1. Compact and less area occupacy: Suitable for height-limited factories and workshops
2. Cost effective: Reducing wastes and improving effect, achieving full automation
3. Modular design: Detachable hoppers, vibrating pans...with PLC control system
4. Golden ratio design: Making the machine more stable and accurate
5. Intergrated weighing, conveying and packing system: A various-languages HMI for easy operation
6. Customized solution as per customers' requests: Widely used on various kinds of product

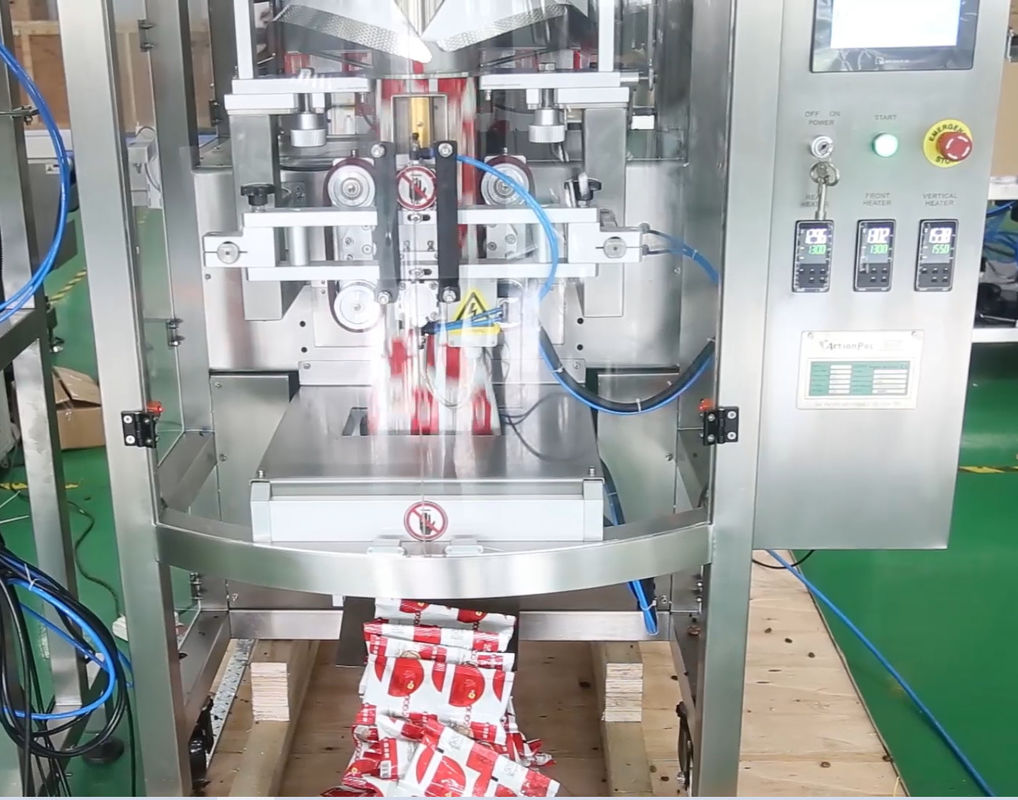

Main Configuration of Packaging Machine:

1. Body frame: SUS304
2. Max. film width: 420mm
3. Max. speed: 100bom (empty bag)
4. Packaging material: Standard heat sealable composite film
5. Main electrical configuration:
-- MITSUBISHI PLC
-- 2 sets of PANASONIC servo system
-- AIRTAC pneumatic parts
-- Banner photoelectric sensor
-- Pneumatic hot stamp printer (NANYUM)
6. One set of former free of charge ( Film width: 420mm, double clip seal)
7. HMI: 10'' touch screen

Specification:

Model	TY-1A-YZ-M1008-101 TY-1A-YZ-M1016-101	TY-1A-YZ-M1408-101 TY-1A-YZ-M1416-101
Max. Weighing/Hopper:	300g	300g
Weighing Accuracy:	x(0.5)	x(0.5)
Min. Scale Interval:	0.1g	0.1g
Heads:	10	14
Hopper Capacity:	0.8L/1.6L	0.8L/1.6L
Max. Weighing Speed:	60bpm	80bpm
Max. Film Width:	420mm	420mm
Packaging Material:	Standard heat sealable composite film	Standard heat sealable composite film
Packing Speed ( empty bag):	80bpm	100bpm
Power Supply:	AC220V±10% 50HZ/60HZ, 2.5KW	AC220V±10% 50HZ/60HZ, 3KW
Machine Dimension:	1,457(L)1,080(W)2,313(H)mm (0.8L) 1,700(L)1,211(W)2,415(H)mm (1.6L)	1,457(L)1,080(W)2,391(H)mm (0.8L) 1,700(L)1,211(W)2,515(H)mm (1.6L)
Packing Dimension:	1,700(L)1,335(W)2,300(H)mm (0.8L) 1,750(L)1,330(W)2,440(H)mm (1.6L)	1,700(L)1,335(W)2,400(H)mm (0.8L) 1,750(L)1,330(W)2,540(H)mm (1.6L)
Machine Weight:	635KGS (0.8L) 685KGS (1.6L)	655KGS (0.8L) 735KGS (1.6L)
Packing Weight:	755KGS (0.8L) 805KGS (1.6L)	805KGS (0.8L) 855KGS (1.6L)

Main Meterial:	SUS304
Bowl Volume:	0.8L/1.6L/2.5L
Power Supply:	Single/three phase 220V/380V 50HZ/60HZ, 0.75KW
Max. Speed:	60p/min
Machine Dimension:	1,450mm or as per customers' requests
