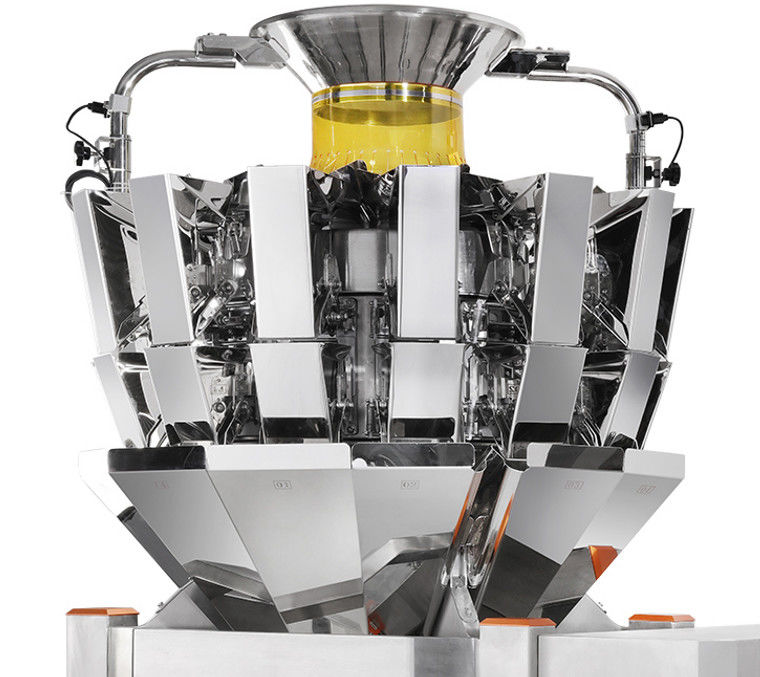

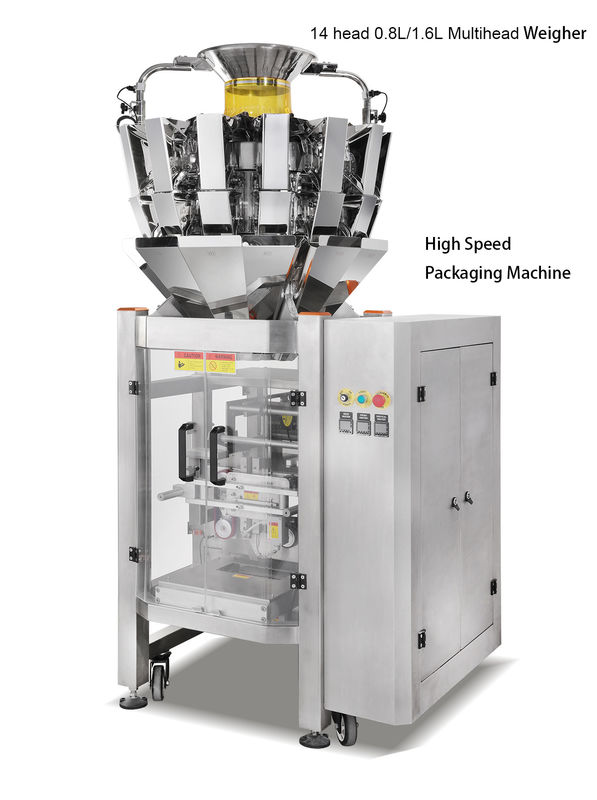

TOUPACK 14 Head 0.8L/1.6L Multihead Weigher All In One Packaging Solutions For Oatmeal Biscuit
Application:
It is suitable for weighing various granular products, such as oatmeal, mixing nuts, and biscuits and samll hardwares & plastic parts etc.
We will help learning the feature of your products, and choose the best solution for you.
Features:
1. Modular control system, easy to maintain and update with stable performance
2. Multiple discharges for bulk weighing meeting your requests
3. Controlled by one touch screen, friendly HMI, easy to operate
4. Load cell or photo sensor checking to satisfy different requirements
5. PLC control system makes bag-forming, measuring, filling, printing, cutting more stable and accurate.
6. Widely used on various kinds of products and customized solution per customer’s request.
Main Configuration:
1. Max film width: 420mm.
2. Body frame: SUS304.
3. Max speed: 100 bpm (empty bags).
4. Packaging material: standard heat sealable composite film.
5. One set of former free of charge (film width: 420mm, double clip seal)
6. 10” touch screen

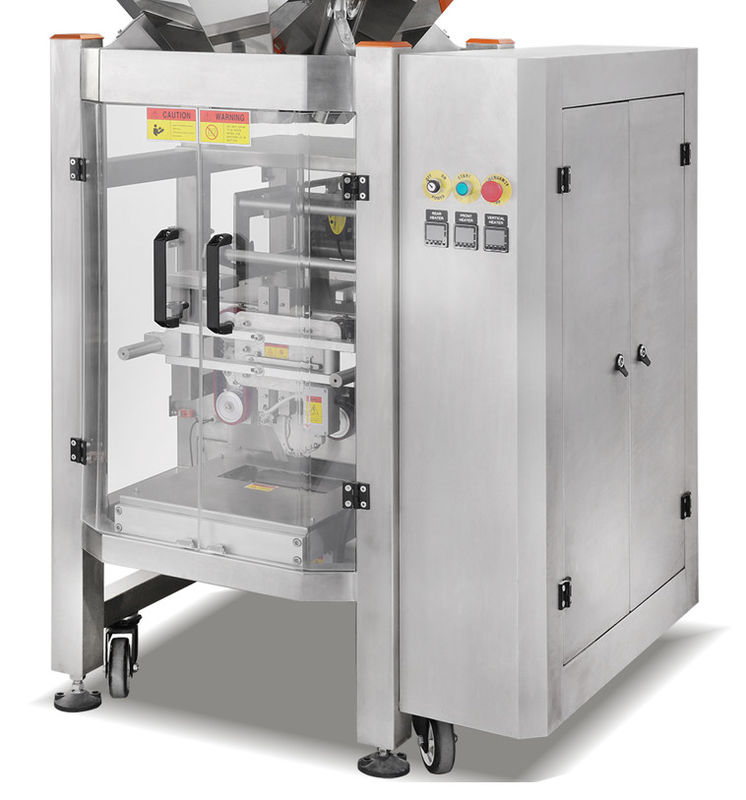

7. Main electrical configuration of packaging machine:
-- MITSUBISHI PLC
-- 2 sets of Panasonic servo system
-- AIRTAC pneumatic parts
-- Banner photoelectric sensor
-- Pneumatic hot stamp printer (NANYUN)
Specifications:
| Model |
TY-1A-YZ-M1408-101/TY-1A-YZ-M1416-101 |
| Weighing Accuracy |
*(0.5) |
| Max.Weighing/Hopper |
300g |
| Hopper Capicity |
0.8L/1.6L |
| Min. Scale Interval |
0.1g |
| Heads |
14 |
| Max. Weighing Speed |
100 WPM |
| Max. Film Width |
420mm |
| Packaging Material |
Standard heat sealable composite film |
| Packaging Speed/ Empty bag |
100 WPM |
| Power Supply |
AC220V±10% 50HZ/60HZ, 3KW |
| Machine Dimension/mm(L*W*H) |
0.8L: 1457*1080*2391
1.6L: 1700*1211*2515
|
| Machine Weight/KGS |
0.8L: 655KGS
1.6L: 735KGS
|
| Packaging Dimension/mm(L*W*H) |
0.8L: 1700*1335*2400
1.6L: 1750*1330*2540
|
| Packaging Weight/KGS |
0.8L: 805KGS
1.6L: 855KGS
|
Successful Cases:
All-in-one packaging machine for weighing and packing oatmeal ↑
All-in-one packaging machine for weighing and packing clips ↑
